2-6 RAID Array 3000 Controller Shelf Hardware User’s Guide
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: RAID Array 3000 Controller Shelf Hardware User’s Guide Comments:
Part Number: EK-SMCPQ-UG. D01 File Name: c-ch2 RAID Array 3000 Controller.doc Last Saved On: 12/4/00 1:08 PM

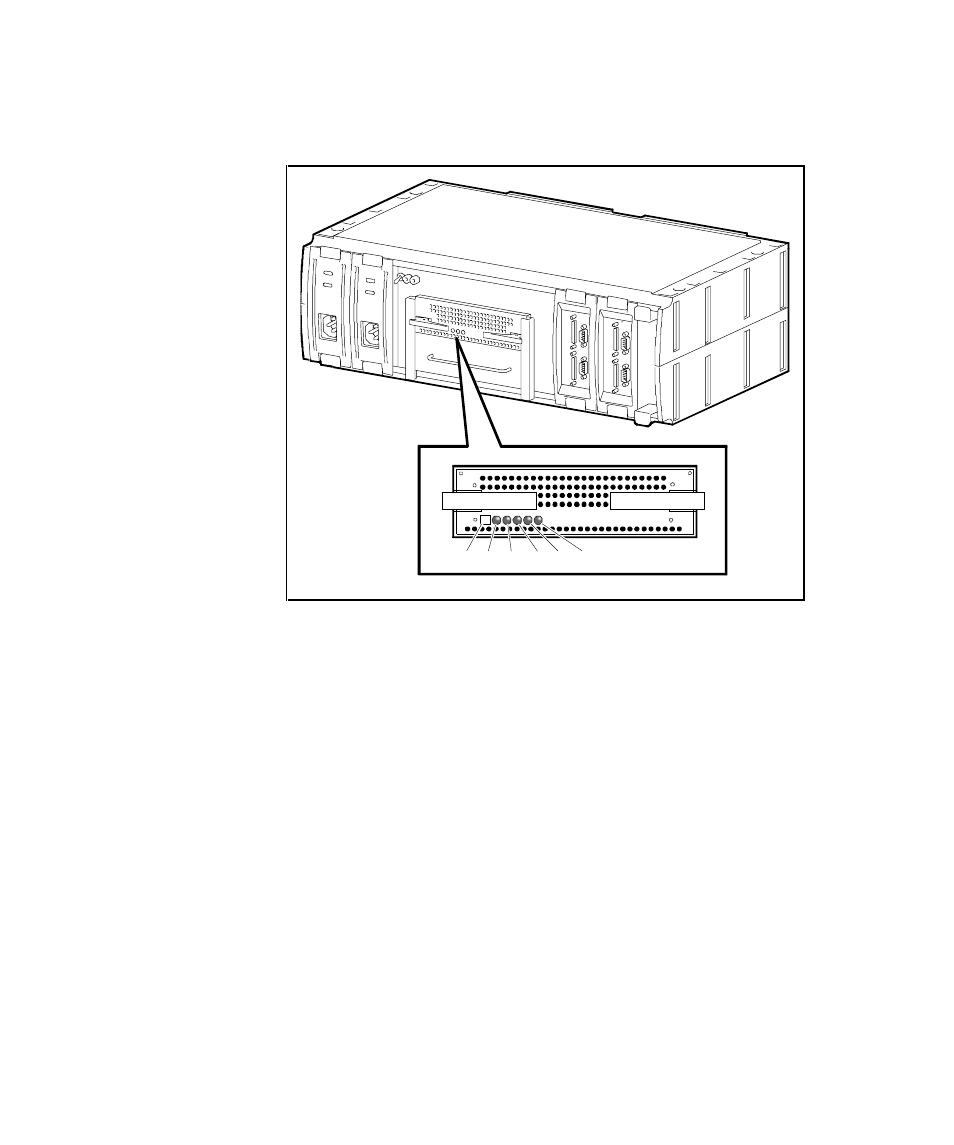

Figure 2– 4 shows the Front Panel of the controller.
SHR-1049
Reset H0 H1 D1 Fault D0
Reset H0 D0 H1 D1 Fault
Figure 2-4. Controller front panel
Flexible RAID Set Configuration
In addition to its flexible hardware design, the controller’s firmware offers the
user the flexibility to configure RAID sets in several different ways:
■ RAID sets can comprise drives from any drive channel and SCSI ID.
■ A RAID set can contain all the drives connected to the controller, a
single drive, or any number of drives in between.
■ The controller supports RAID Levels 0, 1, 0+1, 4, and 5. It also supports
Just a Bunch of Drives (JBOD), allowing you to connect standalone disk
drives (such as a system disk) to the controller without making them
members of a RAID set.
■ Each RAID set can be partitioned into smaller redundancy groups.
