3-16 RAID Array 3000 Controller Shelf Hardware User’s Guide
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: RAID Array 3000 Controller Shelf Hardware User’s Guide Comments:
Part Number: EK-SMCPQ-UG. D01 File Name: d-ch3 Installation and Maintenance.doc Last Saved On: 12/4/00 1:08 PM
CAUTION: To prevent possible damage to the equipment, the input voltage level
of the UPS must be set to your specific line voltage before proceeding. Refer to
the UPS manual and set the input level to your AC power sources.
12. After the UPS has been set to the correct input voltage level, set the UPS
low-battery warning option to five minutes (refer to the UPS manual for
instructions).
13. This completes the controller and device expansion shelf cabling
procedure. Dress and tie-wrap related cable groups, and then refer to the
Getting Started RAID Array 3000 Installation Guide and Command
Console V2.2 for the RAID Array 3000 (Pedestal and Rack Mount
Models) User’s Guide for information describing how to setup and
configure your subsystem.
SHR-1117
DEVICE EXPANSION SHELF # 1
CONTROLLER SHELF
P/S
A
P/S
B
P/S
B
P/S
A
CTR 0
Host 0 I/O
Module
Device
I/O Module
Personality I/O
Module
SCSI Cable
BN37A-0E
To
Maintenance
PC
To Host System
SCSI Cable
BN37A-05
Serial Control
Cable
(17-04730-01)
ON
OFF
1 2 3 4 5 6 7
SCSI Bus Address
Switch (S3)
OFF ON
1
2
3
4
SCSI Bus
Termination
Switch (S4)
OFF ON
1
2
3
4
SCSI Bus
Termination
Switch (S4)

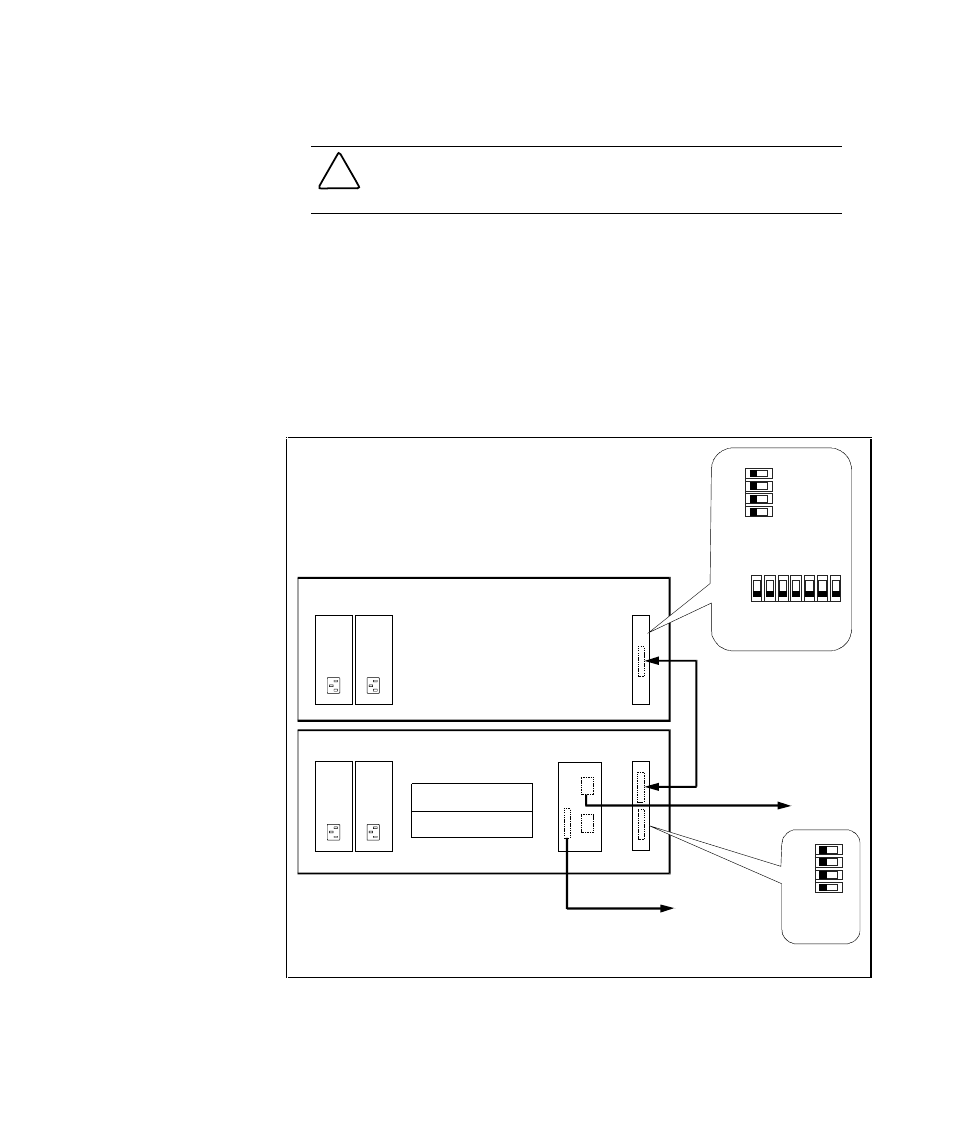

Figure 3-9. Controller/ single device expansion shelf cabling diagram
