Installation and Maintenance 3-27
Compaq Confidential – Need to Know Required
Writer: Bob Young Project: RAID Array 3000 Controller Shelf Hardware User’s Guide Comments:
Part Number: EK-SMCPQ-UG. D01 File Name: d-ch3 Installation and Maintenance.doc Last Saved On: 12/4/00 1:08 PM

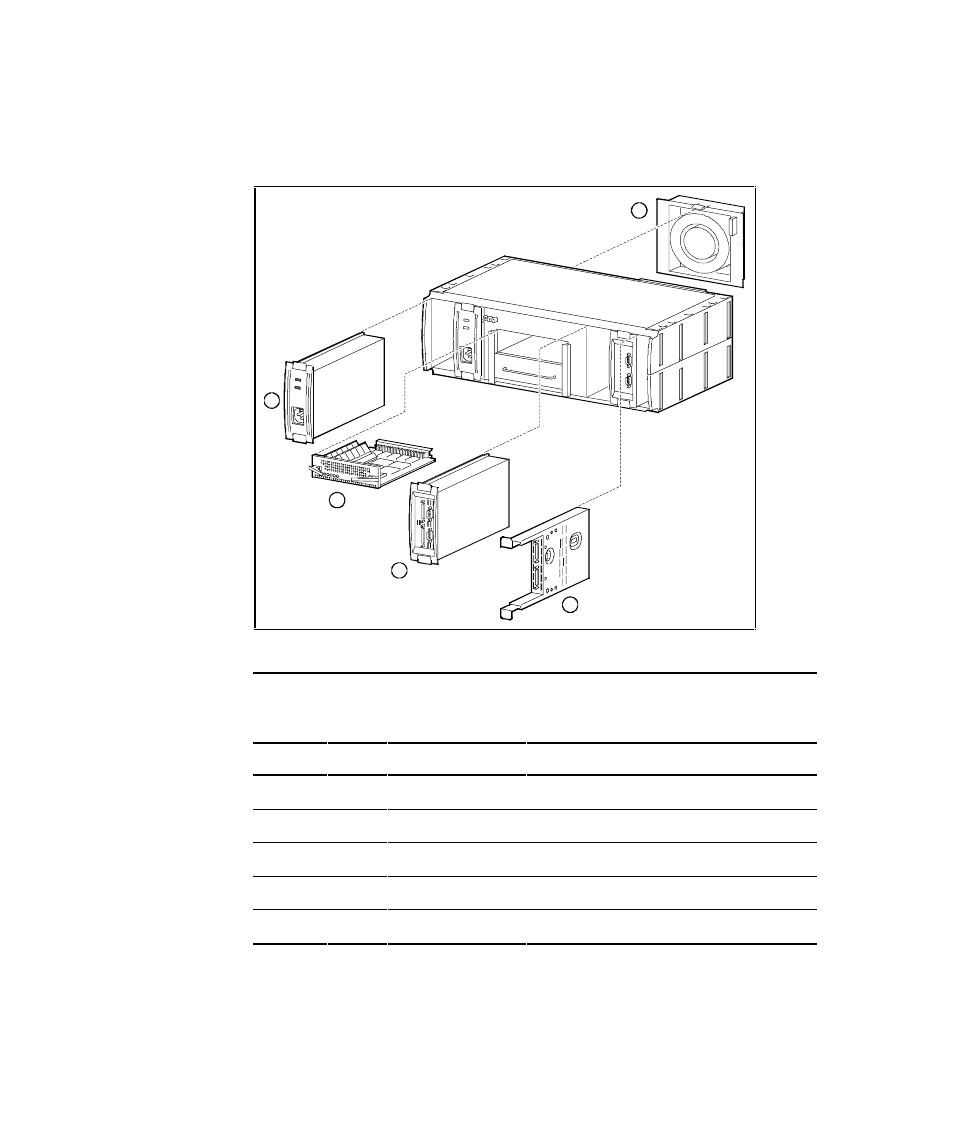

Figure 3-15 is an exploded view that shows the FRUs in the controller shelf.
Table 3-4 lists the units and their corresponding part numbers.
SHR-1052
1
3
4
5
2
Figure 3-15. Controller shelf FRUs
Table 3-4
Controller Shelf Field Replaceable Units
Item # Qty. Part Number Description
å
2 DS-BA35X-HH Power supply, 180 W, 50/60 Hz, +5 V, +12V,

1 * 70-33523-01 RAID controller
ê
2 70-33525-01 Host I/O module
‚
1 70-33067-05 Device I/O module
ƒ
2 70-29761-07 Blower Assembly
* Second (redundant) controller is optional
