Installing and Configuring the Tape Drive for the HP
Integrity NonStop NS-Series Server
N1525A ACL Installation and User’s Guide — 527339-003
5 -4
Installation
3. Connect one end of the fiber cable to the small form-factor Pluggable (SFP) on the
unit. See
the for location.
4. Attach the power cord to the AC power receptacle on the Fibre Channel to SCSI
router, and then plug the other end into an AC power outlet.
Note. The router does not have protection against lightning surges. Customers in high risk
areas should use external surge protection rated for use in their location and be able to handle
the power demand of the router.

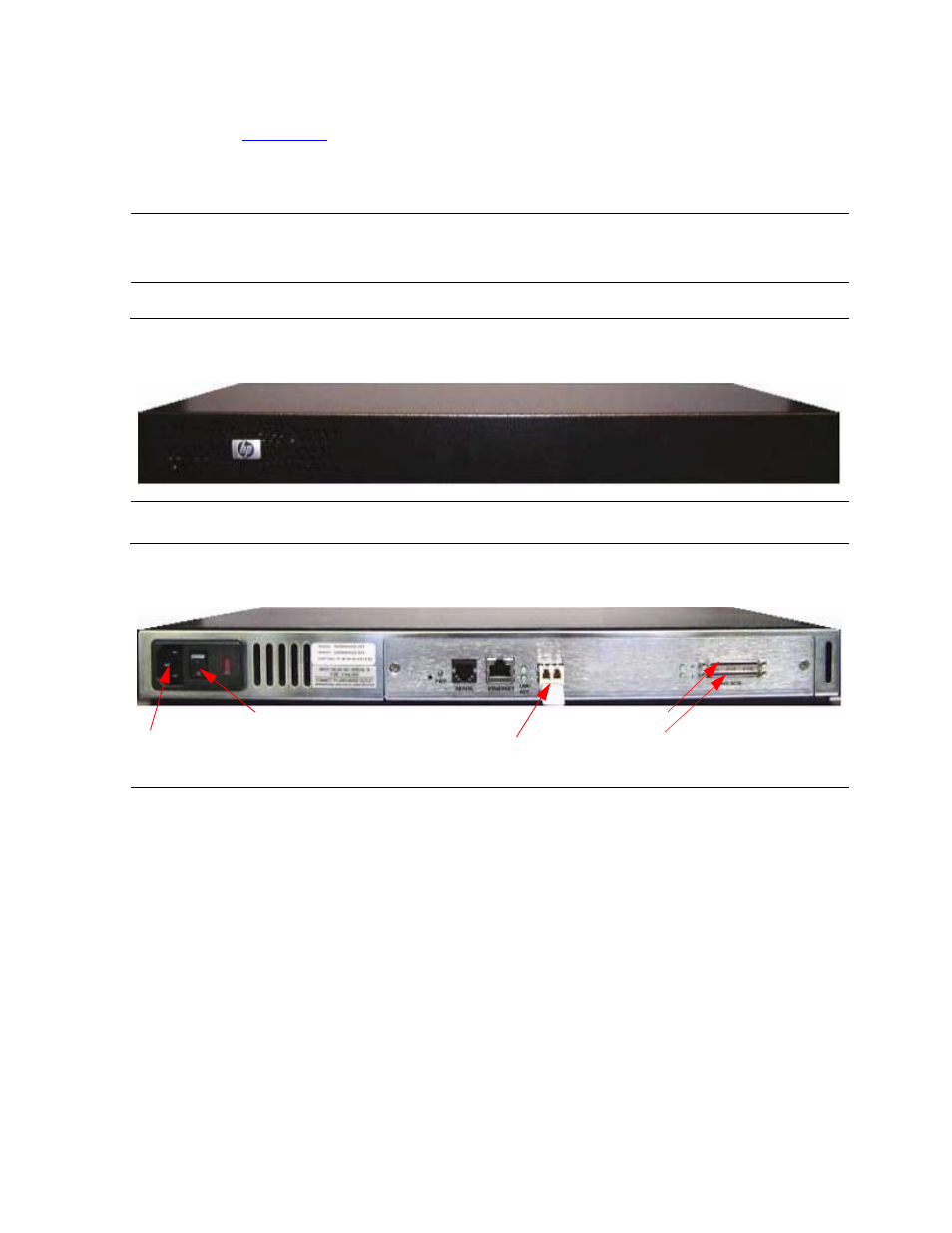

Figure 5-3. Front View of the Fibre Channel to SCSI Router
Figure 5-4. Rear View of the Fibre Channel to SCSI Router
Port 0
Port 1
Small Form-Factor
Pluggable (SFP)
Receptacle
AC Power
Power
Switch
