Installing and Configuring the Tape Drive for the HP
Integrity NonStop NS-Series Server
N1525A ACL Installation and User’s Guide — 527339-003
5 -2
Installation
For more information on the router, refer to the M8201 Fibre Channel to SCSI Router
Installation and User’s Guide.
Installation
1. Connect the small end of the SCSI cable to the Fibre Channel to SCSI router on
port 0. For port location see Figure 5-3 on page 5-4.

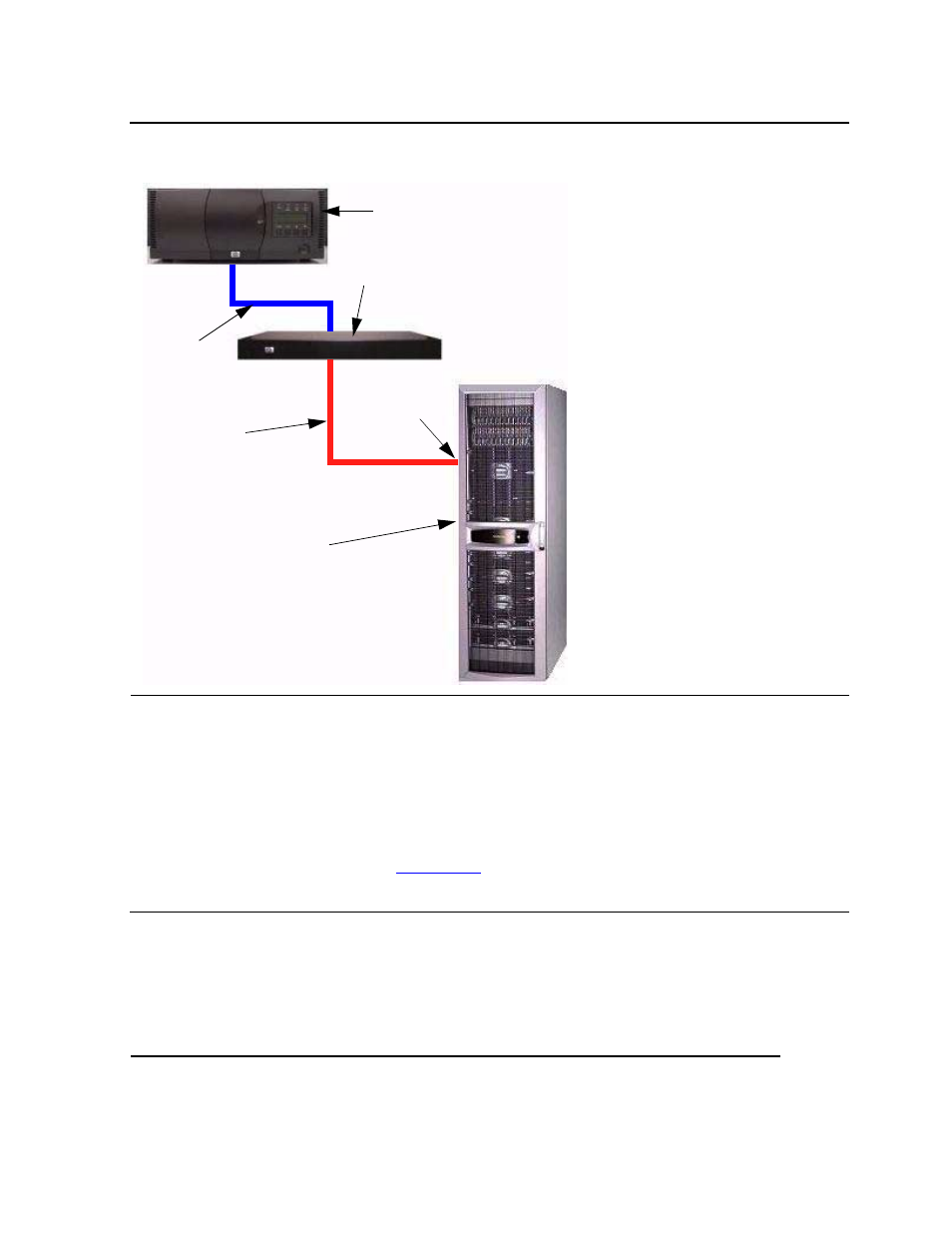

Figure 5-1. Hardware Configuration
Table 5-1. SCSI Cable Part Numbers and Descriptions
Part Number Description
520-001 529794-001 CBA, 1 meter, VHDCI 68P to HD 68P, HVD SCSI Cable
520-003 529795-001 CBA, 3 meter, VHDCI 68P to HD 68P, HVD SCSI Cable
520-010 529796-001 CBA, 10 meter, VHDCI 68P to HD 68P, HVD SCSI Cable
Tape Drive
M8201 Fibre Channel
NonStop
NS - Series
Server
FCSA
Fiber
Cable
Cable
SCSI
to SCSI Router
