Installing and Configuring the Tape Drive for the HP
Integrity NonStop NS-Series Server

N1525A ACL Installation and User’s Guide — 527339-003

5 -3

Installation

2. Tighten the screws by hand to secure the cable to the unit. Do not use a

screwdriver.

520-015 529797-001

CBA, 15 meter, VHDCI 68P to HD 68P, HVD SCSI Cable

520-020 529798-001

CBA, 20 meter, VHDCI 68P to HD 68P, HVD SCSI Cable

520-023 529799-001

CBA, 23 meter, VHDCI 68P to HD 68P, HVD SCSI Cable

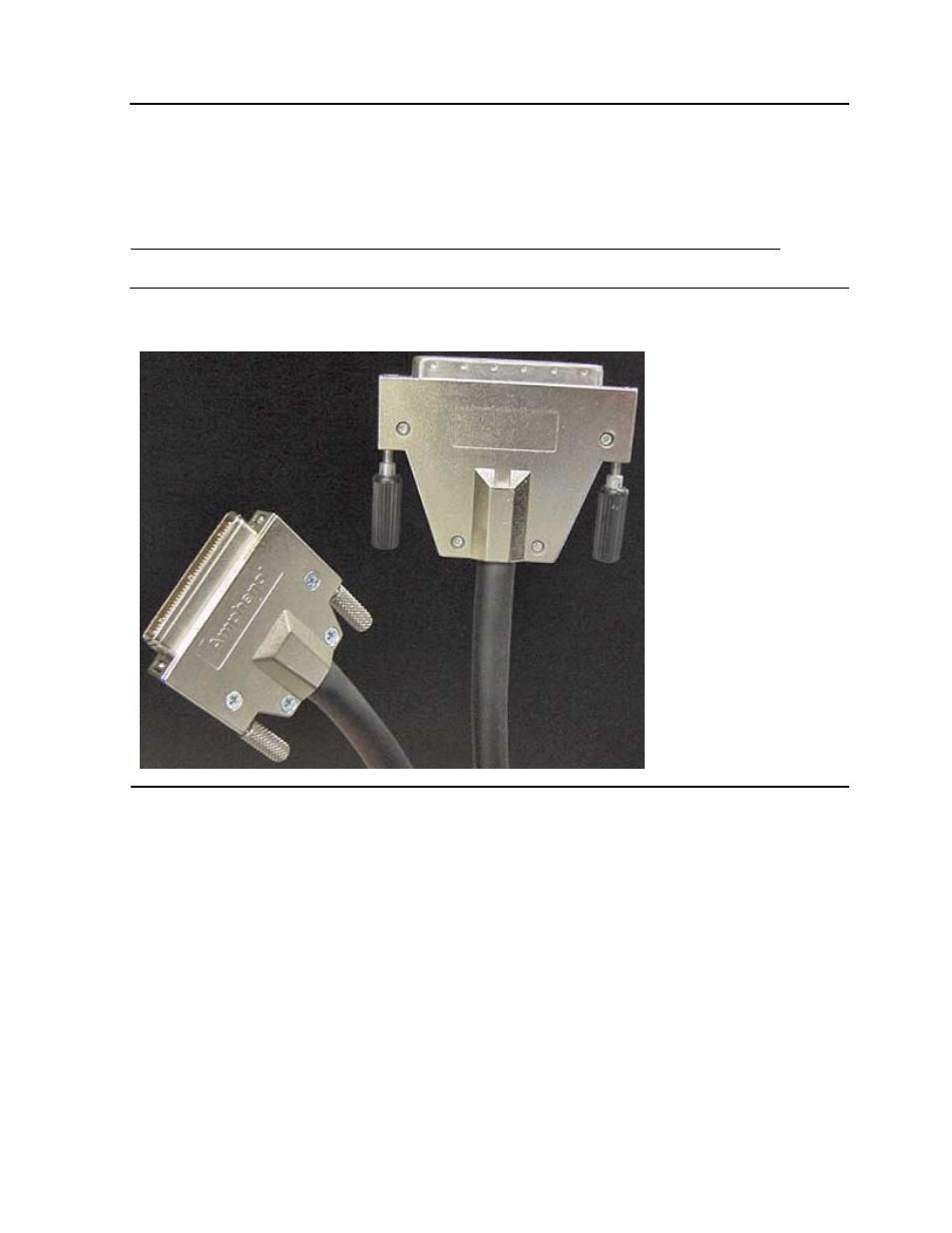

Figure 5-2. SCSI Cable

Table 5-1. SCSI Cable Part Numbers and Descriptions

Part Number

Description
