Installing and Configuring the Tape Drive

N1525A ACL Installation and User’s Guide — 527339-003

2 -8

Connecting the Cables

Connecting the Cables

Examine the components on the rear panel to complete the physical installation.
(See

Figure 2-8

.)

1. Connect one end of the SCSI cable to SCSI port 1 on the rear panel. (See

Figure 2-8

.)

2. Hand tighten the screws to secure the cable to the unit.

3. Connect the opposite end of the SCSI cable to the NonStop server.

For server SCSI connections, see

Supported Connections

on page 4-1.

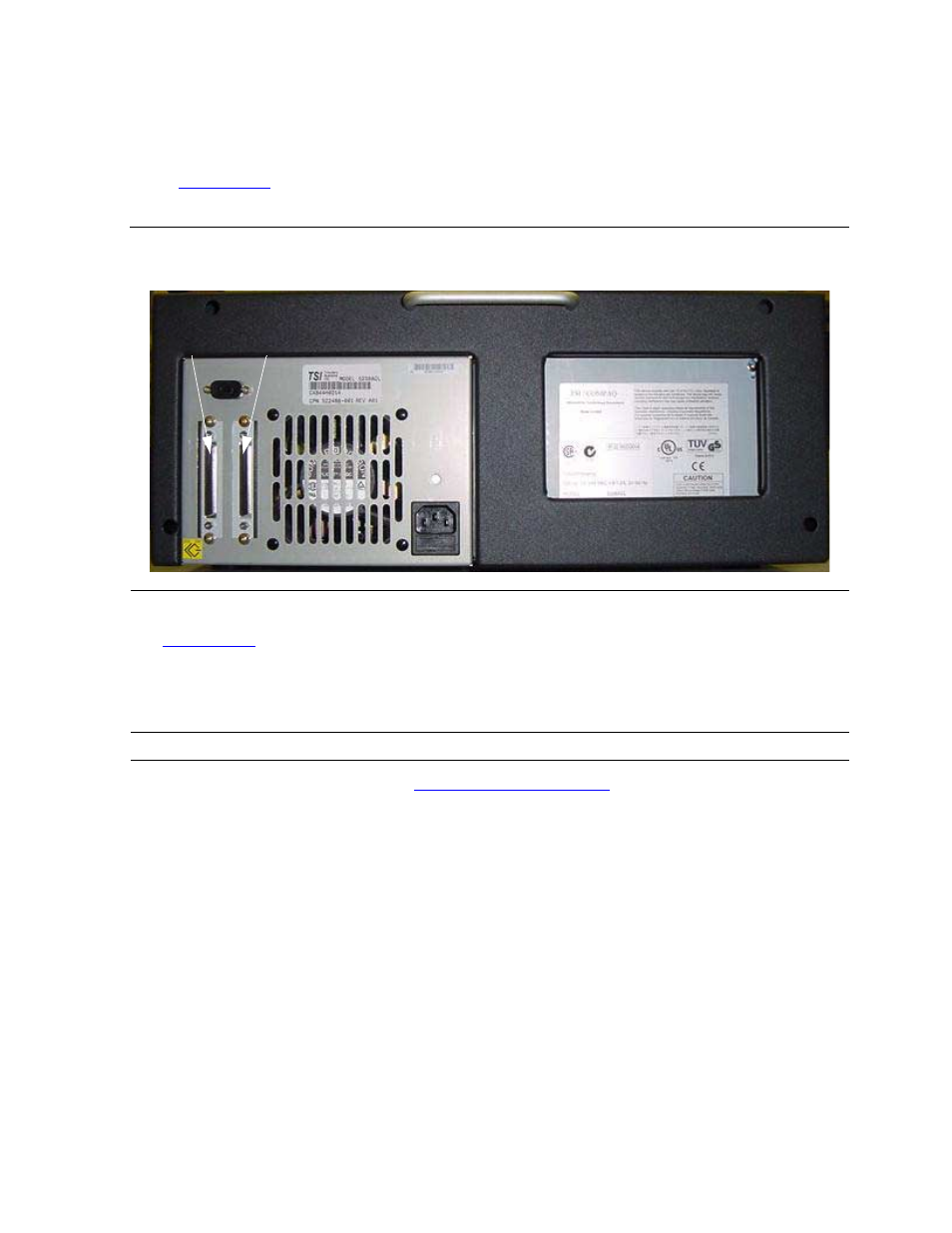

Figure 2-8. Rear Panel Components

Note. Do not use the right SCSI port for any type of copper connection.


Port 1 Port 2
