Overview of the Tape Drive
This section includes:
Tape Drive Description
The tape drive is a compact, easy-to-use desktop LTO Ultrium tape loader,
designed for secure, reliable unattended system backup on NonStop servers.
The tape drive features 11 cartridges, each with a formatted capacity of 400.0
gigabytes and a sustained user data transfer rate of 30.0 megabytes/second.
Control Panel
The control panel has a 4-line by 20-character backlit LCD display, four LED
indicators, and four buttons. Navigate through the menu to select and display
operating modes, device status, diagnostic and maintenance functions, device
history, and error statistics.
The display provides a highly intelligible display of drive and loader status, menu
choices and error messages. The scrolling feature greatly expands the amount
of information available to the operator.

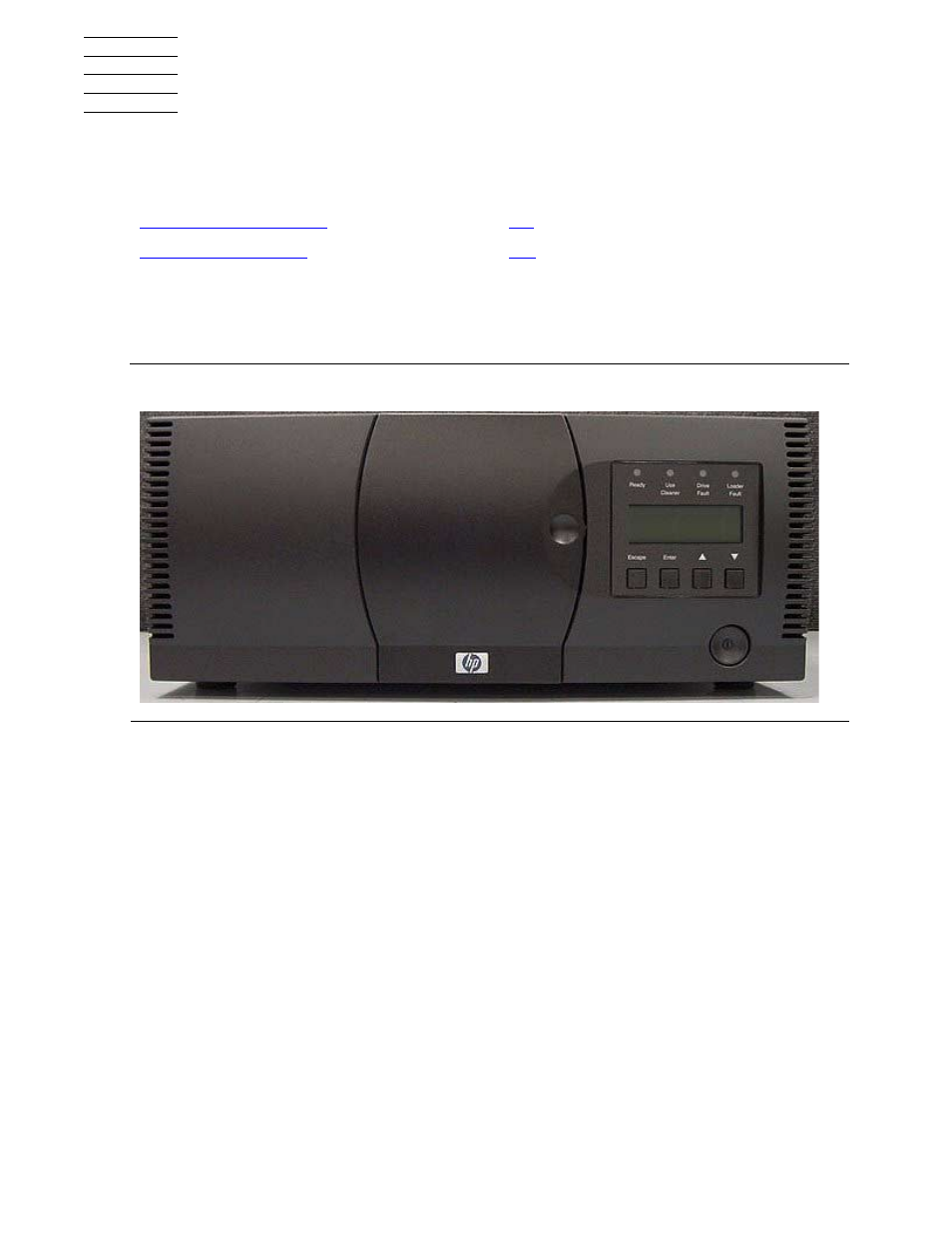

Figure 1-1. Front View of the Tape Drive
