3.4.2 Trend Screen
The Trend Screen shows the instrument‘s chamber conditions and the set-points the instrument is
programmed to reach.
1) Trend
2) Y Axis
3) Time Axis
4) Trace selection
Trace selection (item 4)
The traces displayed can be selected using the buttons (item 4)
Trend Axes (items 2 & 3)
The Y axis (item 2) is self-scaling; the x axis (time) (item 3) can be adjusted by clicking anywhere along it
and typing in the desired timescale.

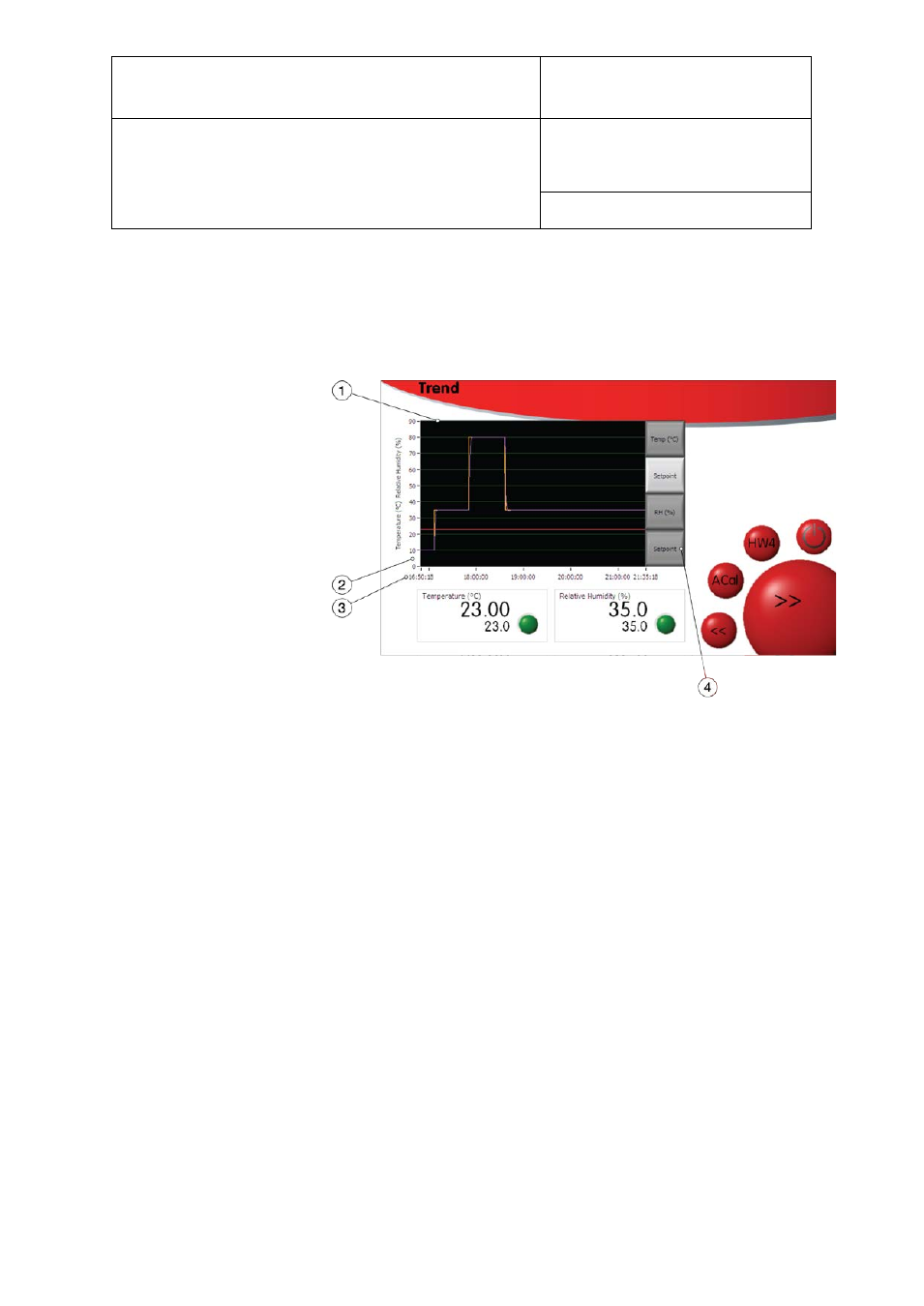

Figure 9: Trend Screen
