PanID Setup Examples

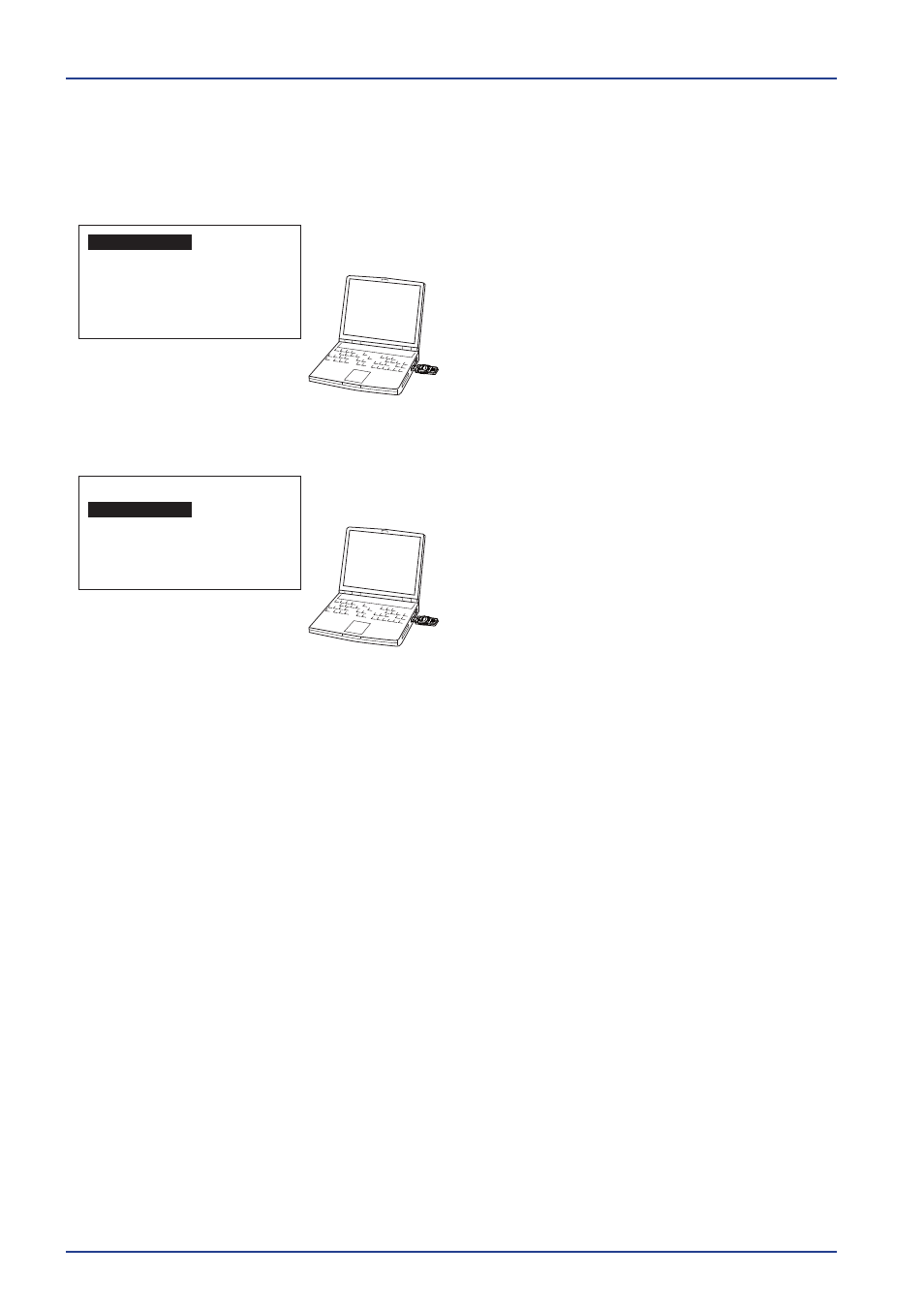

＜ Pattern 1 ＞ Receiver PanID Batting

Receiver 1 is set to work with PanID 0001, so Receiver 2 will communicate when the next PanID candidate

becomes 0002.

・PanID1 : 0001

・PanID2 : 0002
・PanID3 : 0003
・PanID4 : 0004
・Frequency Channel 11
・Group ID : FFFFFFFFFFFFFFFF

Receiver１

・PanID1 : 0001

・PanID2 : 0002

・PanID3 : 0003
・PanID4 : 0004
・Frequency Channel 11
・Group ID : FFFFFFFFFFFFFFFF

Receiver２
