61
Wireless Data Aquisition System Comprehensive User's Manual
4

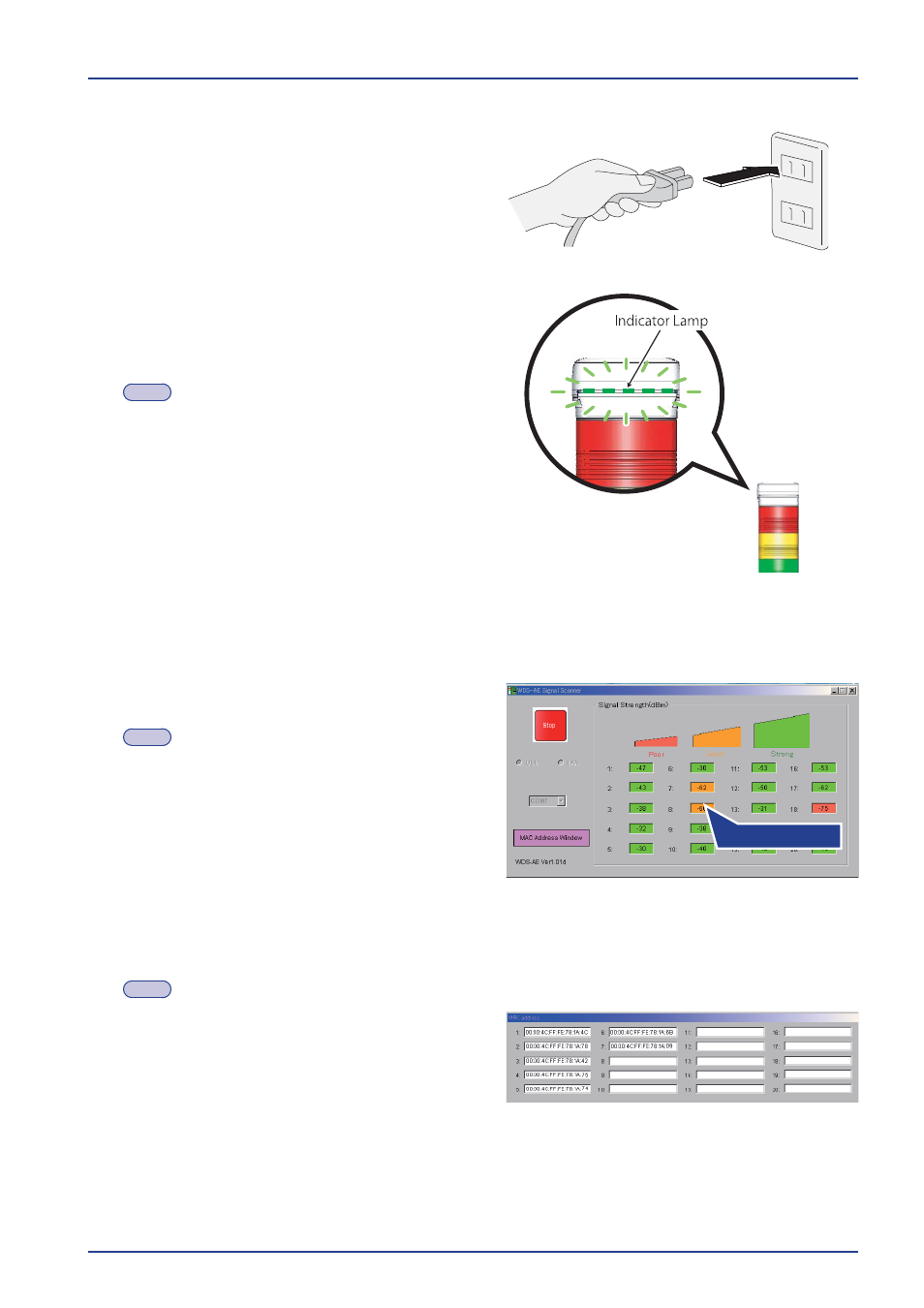

Turn on the power for the transmitters.
➡ If connected properly, the gradition on the indicator
lamp to the transmitter should turn either green or
orange).
Note
● Depending on the signal strength, the gradition colors
may diff er.
Green ：Very Good
Orange ：Good
Red ：Poor
● Any other color outside green or orange indicates an
error.
Refer to the attached "Troubleshooting Guide" to
correct the error.
➡ Signal Strength is displayed.
Note
● The numbers indicate signal strength.（Unit：dBm）
● The signal strength value displayed is the most
recent at the time the transmitter was linked
together.
Note
● Click the [MAC Address Window] button and the
[MAC Address] box opens.
The connected transmitters can be verifi ed by their
MAC Address.
● Click the [MAC Address Window] button when the
box is open and the [MAC Address] box will close
again.
Signal Strength
