13
Wireless Data Aquisition System Comprehensive User's Manual

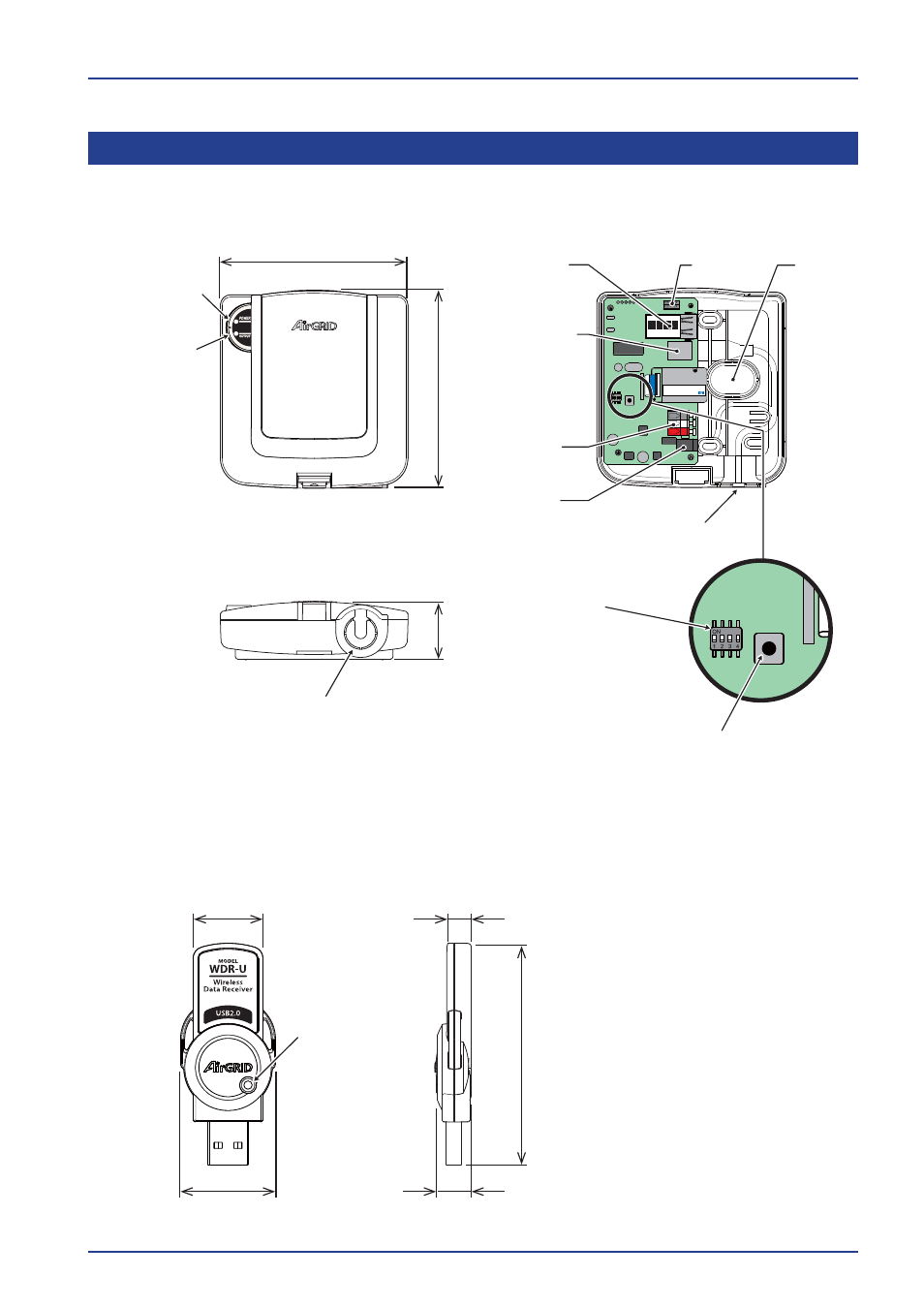

5.2 Receiver
■
WDR-LE
ZB24FM-Z2501-01C
&
)
)
)(
$
=&
$
%
&
%$
LTRX XP
ort
Power LED（Green）
Output
LED（Red）
LAN Connector
(RJ45)
USB-B Connector
(Receptacle)
Power Terminal
(DC24V Input)
For LAN Use
For USB Use
DC Jack
For use with
Optional AC Adaptor
（For Japan Only）
Wire Hole (Bottom)
Wire Hole
（Wall Side）
125mm
131.8mm
38.8mm
Cable Gland Mounting Hole
（Break-out）
Connection
Terminal
࠙:'5/&RQWHQWVࠚ
DIP Switch
Reset Switch
For normal operation be sure all
switches are in the OFF position.
1 : IP Address Factory Setting
2 : Not Used
3 : Not Used
4 : Not Used
Recommended Part：
PF Pipe Size 16 Adaptor, Communication Wire Pipe
■
WDR-U
66
5mm
21mm
28.5mm
（11mm）
7.4mm
Power LED
(Green)
