9.3 Wireless Setting for Transmitter
Change the wireless setting for each unit.
Please change settings for wireless only when necessary.

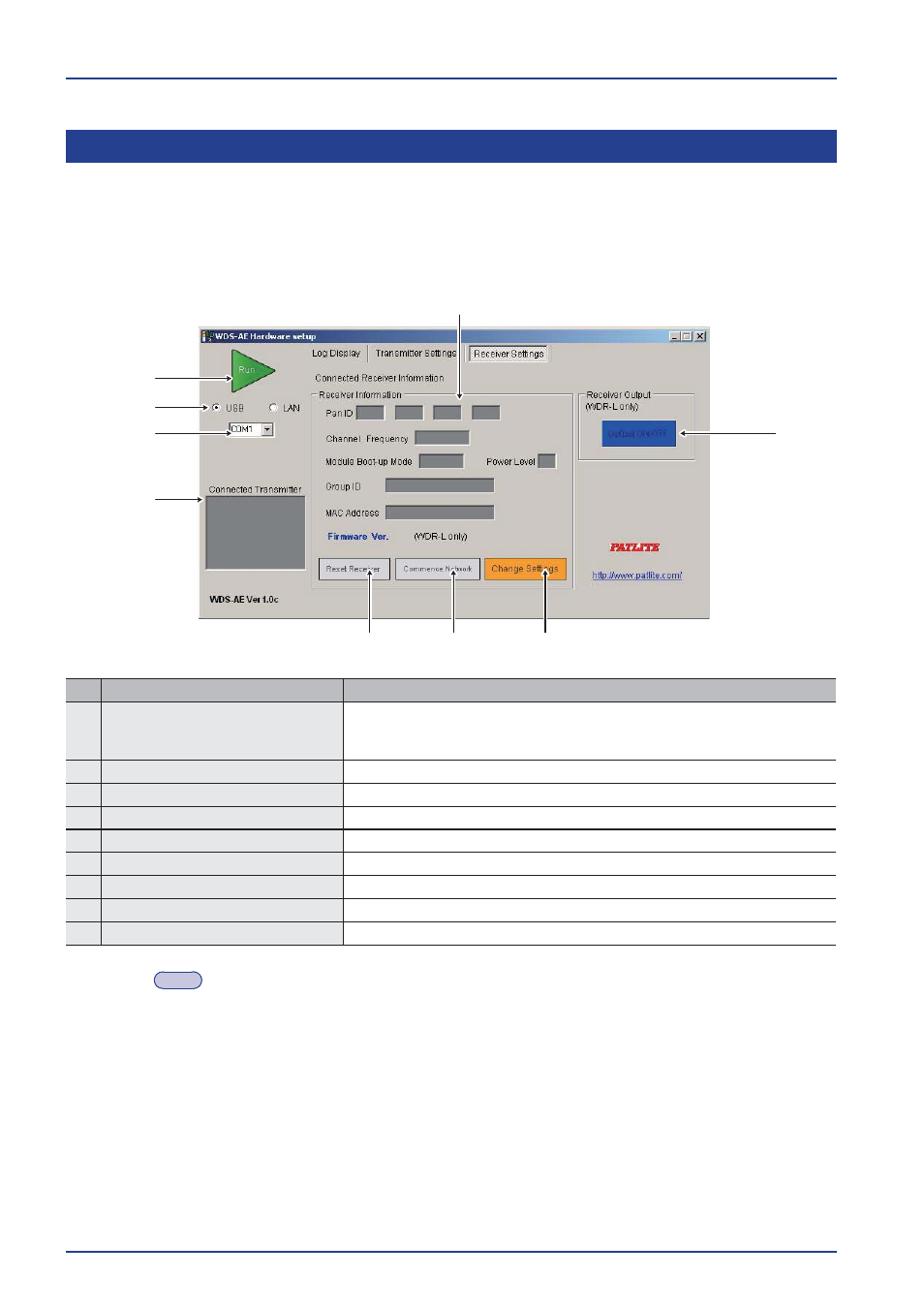

＜ Receiver Setting Display ＞
No. Name Function
❶ [Run/Stop] Button "Run" and "Stop" button for the Application Software.
During "Run" mode, "Stop" displays in red, during "Stop" mode, "Run"
displays in green.
❷ Select (USB/LAN) Select the method of connection to the Computer.
❸ COM Port (For USB Only) Select the COM port for the USB.
❹ Connected Transmitter Displays the MAC Address of the connected transmitter.
❺ Receiver Information Information for the receiver is displayed.
❻ [Reset Receiver] Button Not Usable.
❼ [Commence Network] Button Not Usable.
❽ [Change Settings] Button Change the receiver settings.
❾ [Output ON/OFF] Button Switch between ON and OFF for the Receiver Output.
Note
● This diagram designates the USB connection. For LAN connection, ❸ will display the IP Address and
Port.
❶
❾ ❸
❷
❺
❻ ❼ ❽
❹
