2 DISPLAY AND KEYPAD FUNCTIONS
2.1 Display
The LCD has a primary and secondary display.
• The primary display shows the measured Conductivity/TDS values.
• The secondary display shows the measured temperature.
The display also shows error messages, keypad functions and program functions.
SETUP MEAS CAL MEM
Primary Display
Secondary Display
ERR
ATC
°C °F
READY
HOLD
ON
OFF
1.8.8.8
1.8.8.8
1 2 3 4
5
6
7
8
9
10 11 13 12
14
15
16
17
18 mS
ppt
ppm
µ
S
K =

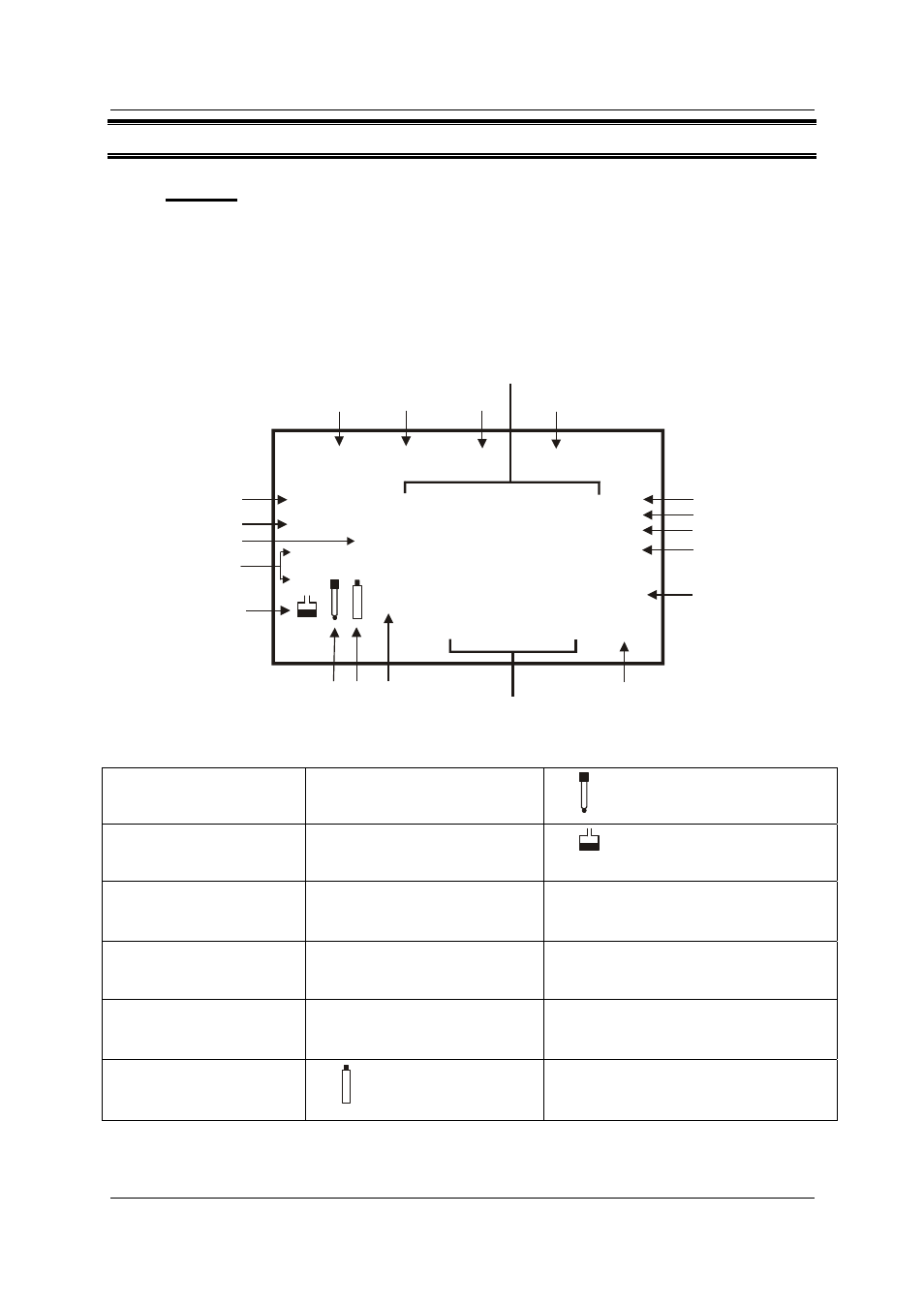

Figure 1: Active LCD display
1. SETUP - Setup mode
indicator
7. ppt - Parts per thousand
indicator
13. - Electrode indicator
2. MEAS - Measurement
mode indicator
8. ppm - Parts per million
indicator
14. - Calibration solution indicator
3. CAL - Calibration mode
indicator
9. °C°F - Temperature indicator 15. ON – READY/Auto HOLD set up
enable indicator.
OFF – READY set up disable indicator
4. MEM - Memory recall
mode indicator
10. ATC - Automatic
Temperature
Compensation indicator
16. K = - Cell Constant indicator.
5. ms - Mill siemens
indicator
11. ERR - Error indicator 17. HOLD – Hold indicator
6. µs - Micro siemens
indicator
12. - Low battery indicator
18. READY – Ready indicator
