3.3 Connecting the electrode to the meter
The CON 11 / 110 meter use the Conductivity / TDS electrode with a sturdy 6 pin
connector which is easy to connect.
1. Insert the 6 pin female connector of the electrode to the 6 pins male
connector on the meter. Rotate the locking ring clockwise until it locks.
2. To remove the electrode, simply rotate the connector’s locking ring
counterclockwise and pull away gently for a complete removal.
CAUTION: Do not pull on the electrode cord to avoid internal wire breakages.
Turn the Locking Ring
clockwise or counterclockwise
for attachment or detachment
of electrode
top view of 6-pin
connector

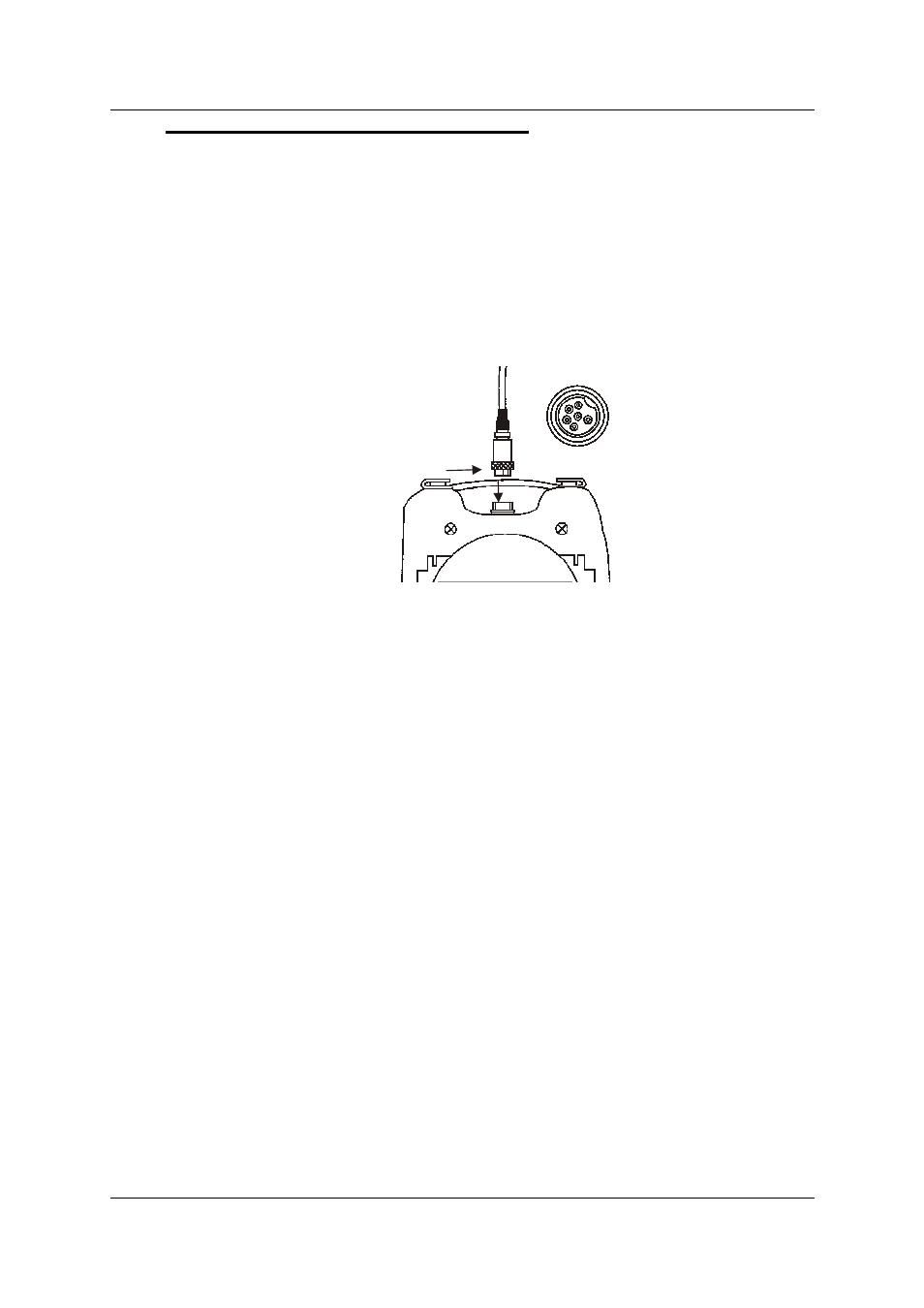

Figure 7: Turn the locking ring to lock into place
