7
TECHNICAL DATA
76
OPTIBAR DP 7060 C
www.krohne.com 04/2014 - 4003292001 - MA OPTIBAR DP 7060 C R01 en

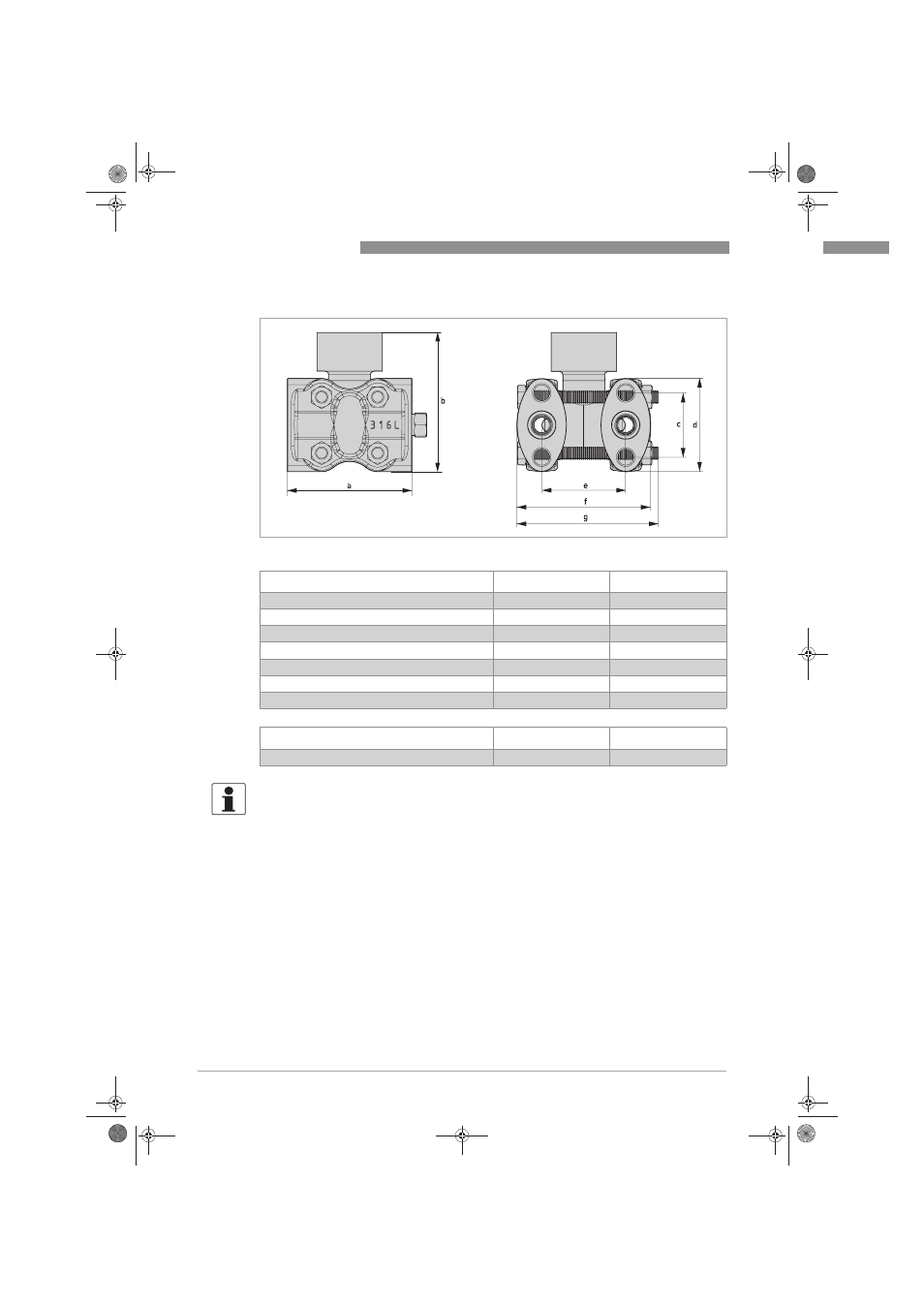

Figure 7-7: 1/4-18 NPT process connection
Dimension [mm] Dimension [inch]
a 80 3.15
b 88 3.46
c 41.3 1.63
d 60 2.36
e 54 2
f 86 3.39
g 91 3.58
Weight [kg] Weight [lb]
Process connection 2.0 4.41
INFORMATION!
Overall height of the differential pressure transmitter = b (process connection) + overall height of
the respective housing
