If the adapter is not supplied pre-assembled, proceed as follows:
• Position the adapter with inserted O-ring.
• Use the screws supplied to screw the adapter to the transmitter.
• Tighten the screws to a torque of 25 Nm (stainless steel screws) or 12.5 Nm (stainless steel
acc. to NACE).
3.7.4 Mounting bracket
A mounting bracket for easy pipe or wall mounting is included with each differential pressure
transmitter.

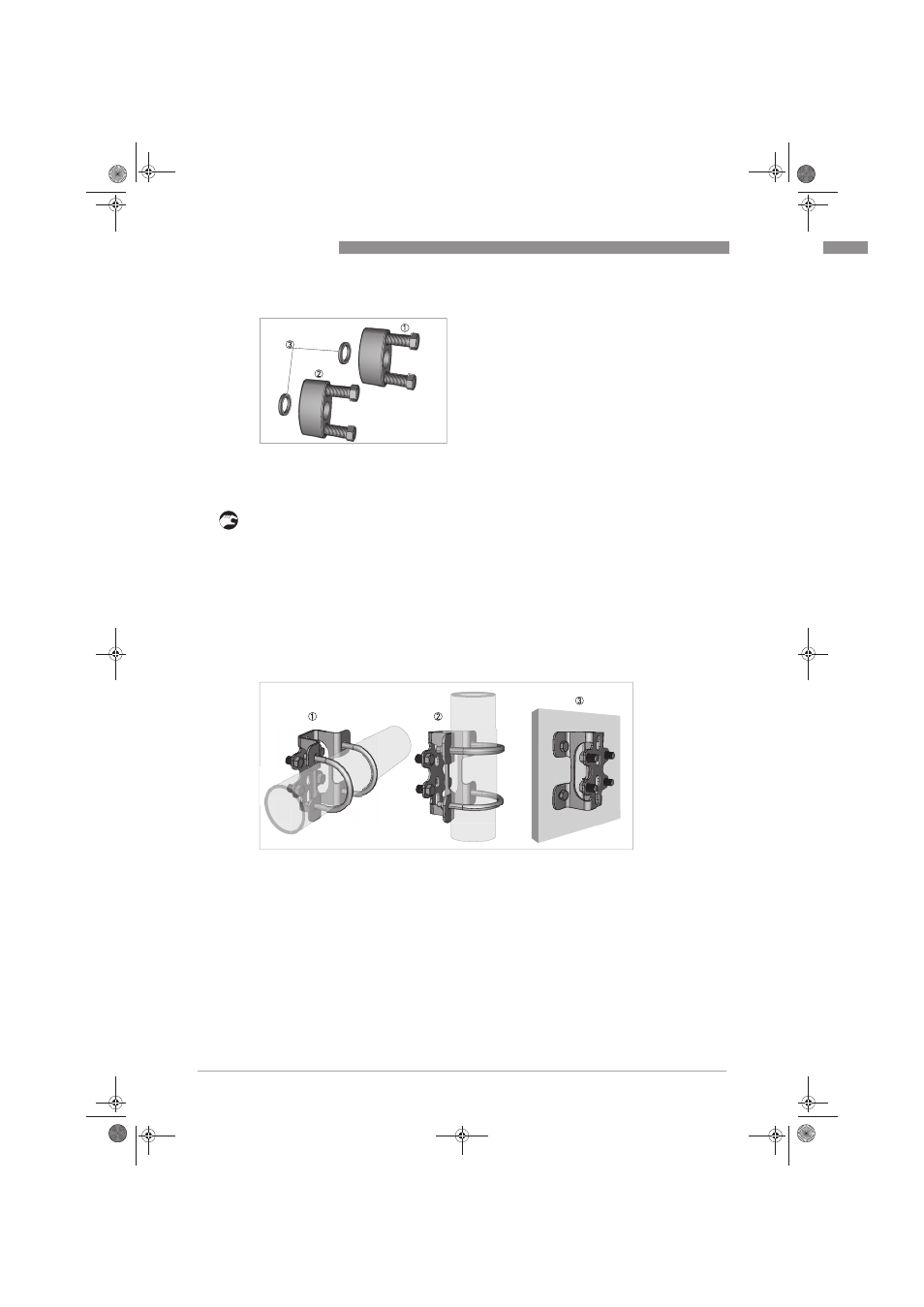

Figure 3-4: Oval flange adapter
1 7/16 UNF bolts
2 Oval flange adapter
3 Sealing ring
Figure 3-5: Mounting bracket
1 Horizontal 2" pipe mounting
2 Vertical 2" pipe mounting
3 Wall mounting
