5
START-UP
44
OPTIBAR DP 7060 C
www.krohne.com 04/2014 - 4003292001 - MA OPTIBAR DP 7060 C R01 en
5.3.3 Adjustment flow
The adjustment "flow" is equal to the adjustment "differential pressure", with the additional
setting for square root characteristics and low-flow cut-off.
5.3.4 Adjustment density

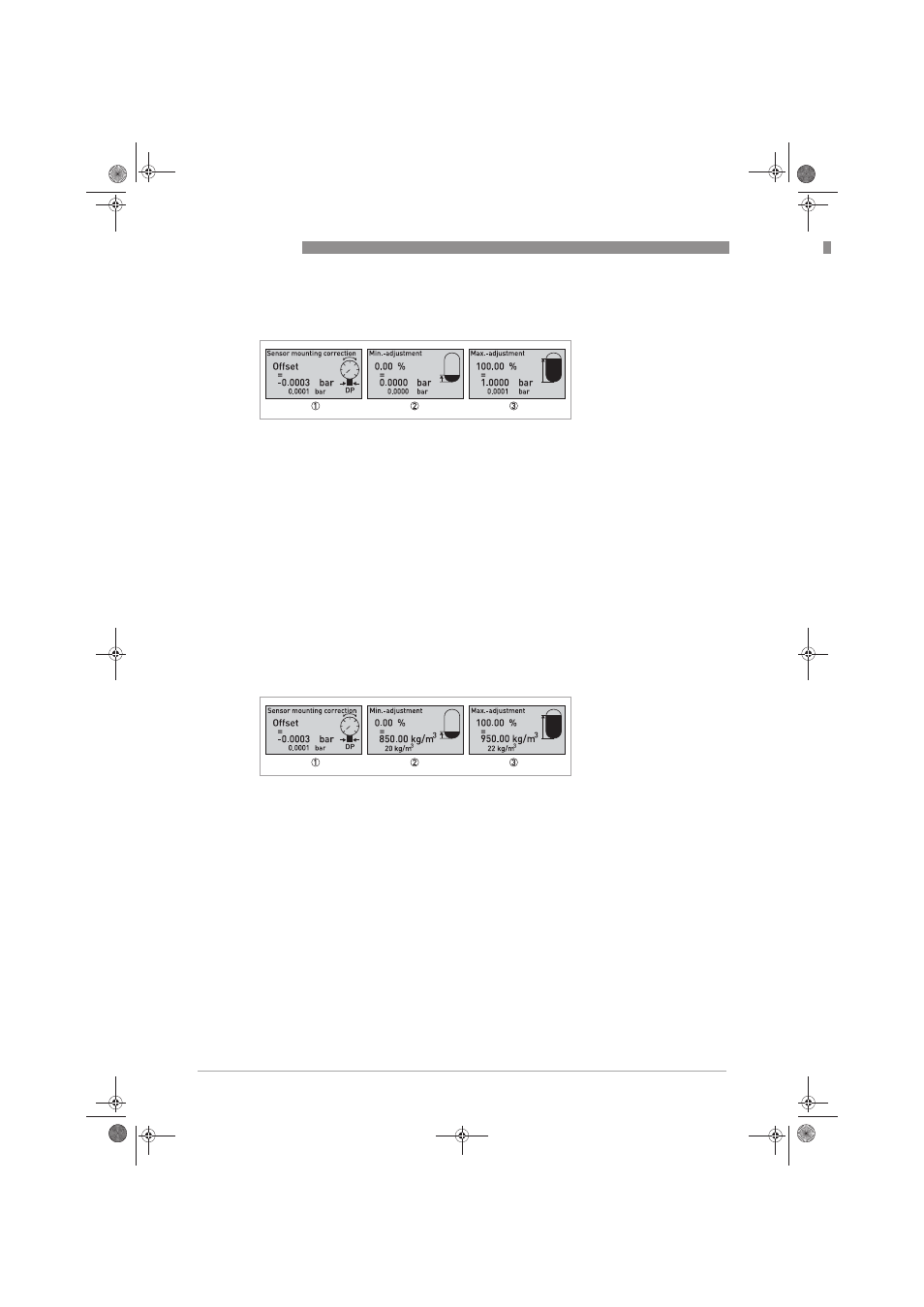

Adjustment flow
1 Sensor mounting correction Sensor mounting correction Sensor mounting correction Sensor mounting correction
In this menu item you compensate the influence of the installation position of the device (offset) on the measured val-
ue.
2 Min.-adjustment Min.-adjustment Min.-adjustment Min.-adjustment
Enter the (pressure) value for the min. flow.
At 0% this corresponds to the output signal of 4 mA.
3 Max.-adjustment Max.-adjustment Max.-adjustment Max.-adjustment
Enter the (pressure) value for the max. flow.
At 100% this corresponds to the output signal of 20 mA.
4 Linearization Linearization Linearization Linearization
The following output characteristics are available for selection:
Linear (Standard)
To square root
Bi-directional linear
Bi-directional square root
User programmable
Adjustment density
1 Sensor mounting correction Sensor mounting correction Sensor mounting correction Sensor mounting correction
In this menu item you compensate the influence of the installation position of the device (offset) on the measured val-
ue.
Distance max./min. Distance max./min. Distance max./min. Distance max./min..
Enter the distance between both measuring points.
2 Min.-adjustment Min.-adjustment Min.-adjustment Min.-adjustment
Enter the (pressure) value for the min. density.
This corresponds to the output signal of 4 mA.
3 Max.-adjustment Max.-adjustment Max.-adjustment Max.-adjustment
Enter the (pressure) value for the max. density.
At 100% this corresponds to the output signal of 20 mA.
