Electrical connections – KROHNE OPTIBAR DP 7060 C EN User Manual
Page 37
ELECTRICAL CONNECTIONS
4
37
OPTIBAR DP 7060 C
www.krohne.com
04/2014 - 4003292001 - MA OPTIBAR DP 7060 C R01 en

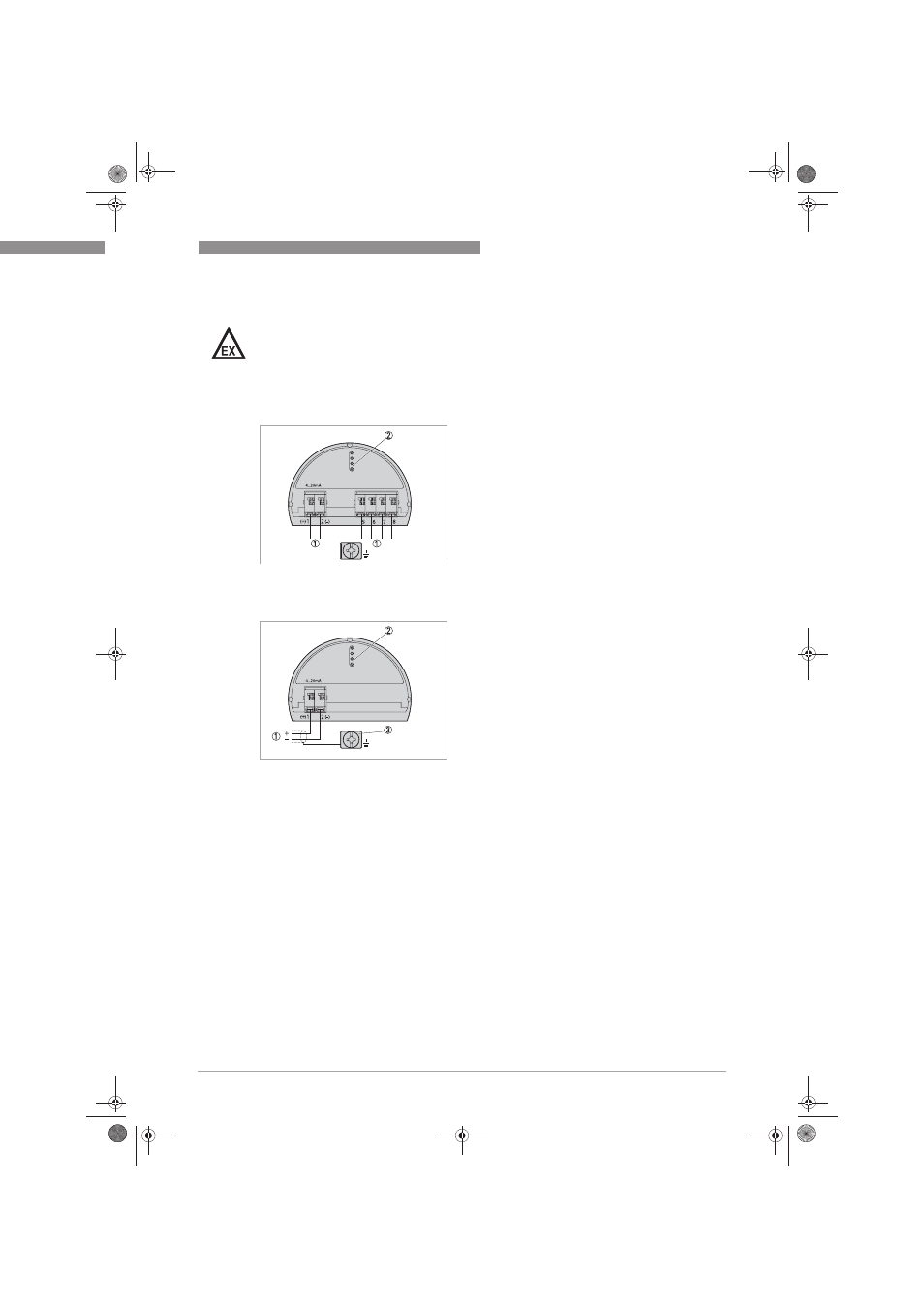

4.3.3 Double chamber housing
The following illustration applies to both the non-Ex as well as the the Ex ia, and the Ex d version.
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
Electronics compartment
1 Internal connection to terminal compartment
2 Interface adapter for the display and adjustment module
Terminal compartment
1 Power supply / signal output
2 Interface adapter for the display and adjustment module
3 Ground terminal for connection of the cable shield
.book Page 37 Friday, May 2, 2014 10:25 AM
