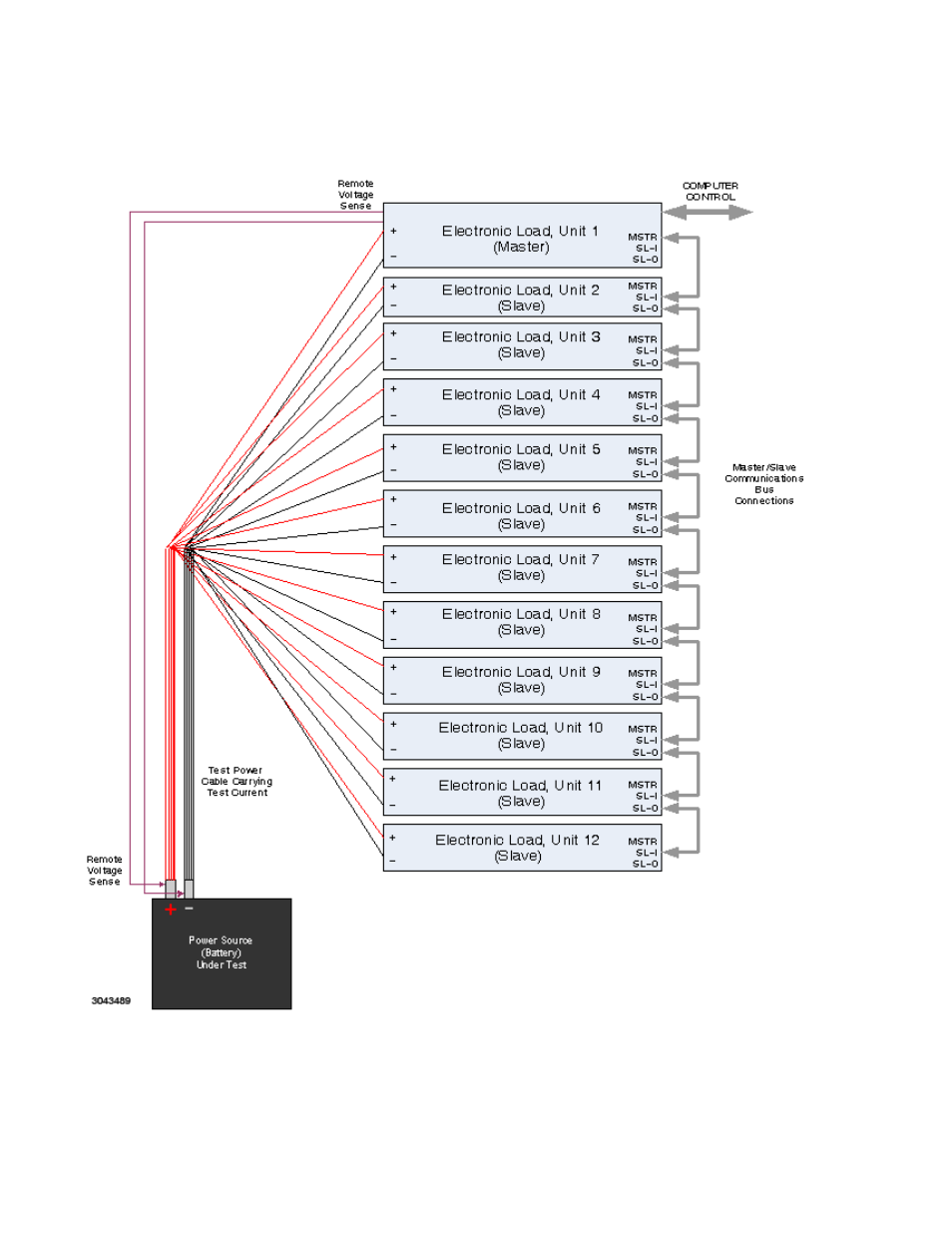

FIGURE 2-9. TYPICAL MASTER/SLAVE INTERCONNECTIONS

NOTES:
1 Remove local sense jumpers between Load+ And R+ and between Load–

and R– on Master only. (See Fig. 2-8.)

2. Connect all Electronic Loads to Earth (safety) Ground using ground stud with

wingnut at upper left corner of each rear panel.
