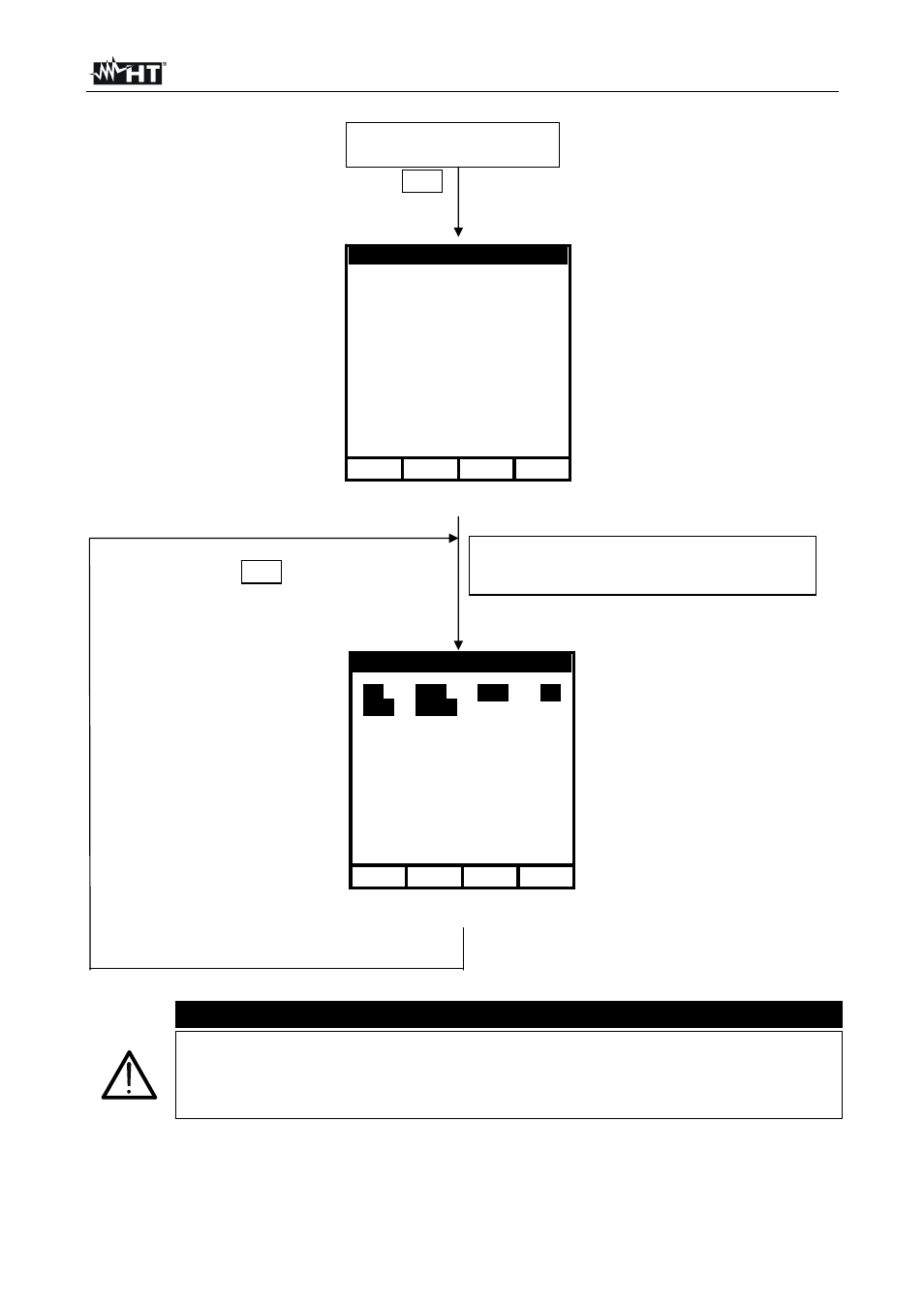

Example of 4 th page
Example of POWER sub-page
CAUTION
• Selecting the active power for the recording, the corresponding active energy will
be automatically selected.
• Selecting the reactive powers for the recording, the corresponding reactive
energies will be selected.
RECORDER CONFIG
CO-GENERATION:ON
POWER:Pg
ENERGY:Pg
↓ ↑ + -
ENTER
From 3 rd page
of RECORDER CONFIG MENU
ENTER
In order to select the POWER to be recorded use the
multifunction keys F1, F2 to position the cursor on the
corresponding “Pg” Symbol and then press F3
RECORDER CONFIG
P1 Q1i Q1c S1
Pf1 dPf1
↓ ↑ + -
