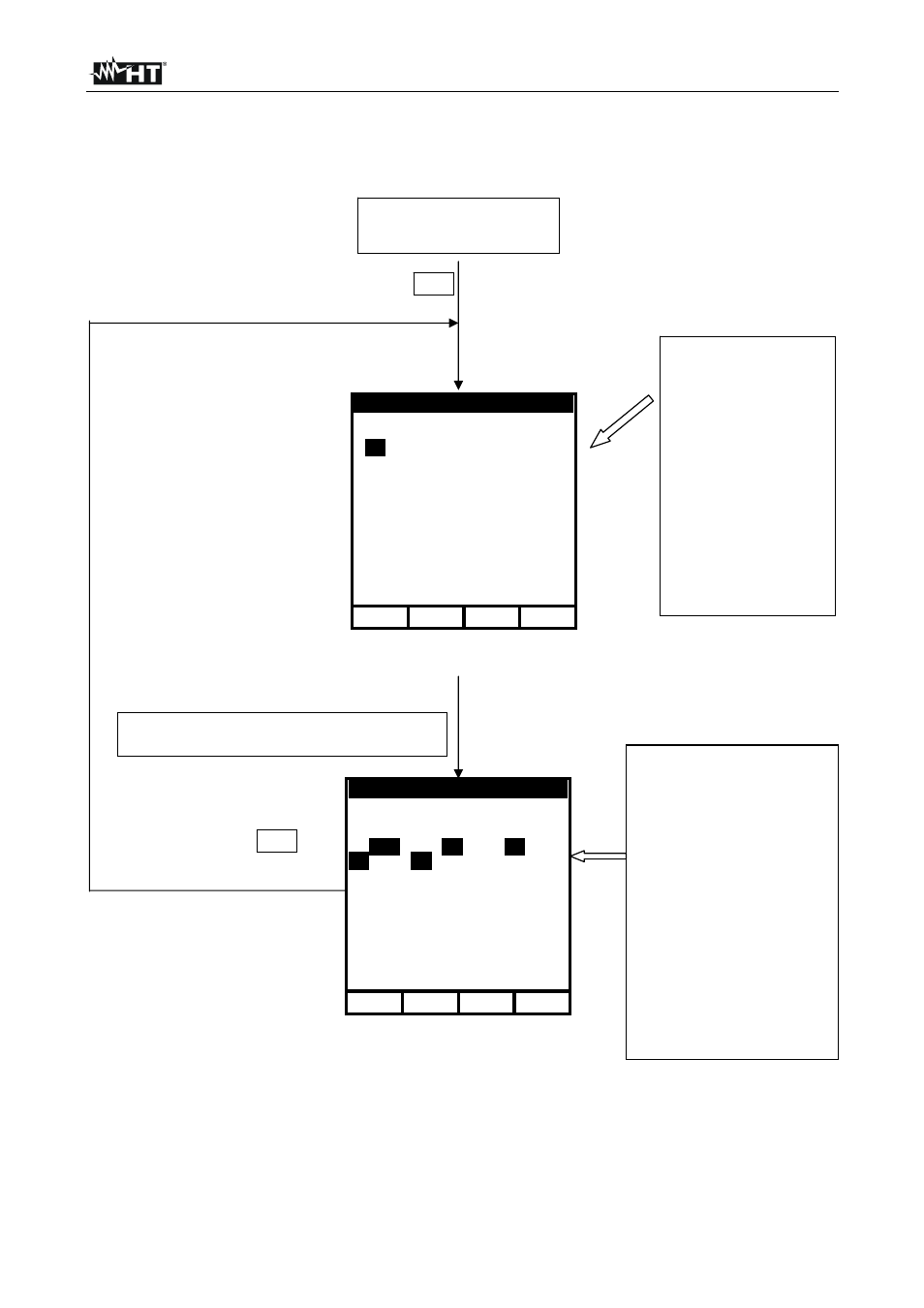

Example of 3 rd page
Example of sub-page
"CURRENT HARMONICS"
ENTER
RECORDER CONFIG
CURRENT HARMONICS
Thd DC 01 02 03 04
05 06 07 08 09 10 11
12 13 14 15 16 17 18
19 20 21 22 23 24 25
26 27 28 29 30 31 32
33 34 35 36 37 38 39
40 41 42 43 44 45 46
47 48 49
↓ ↑ + -
Use the multifunction keys F1,
F2 to position the cursor on the
desired current harmonic and
use the multifunction keys F3 /
F4 to select / deselect (it’s
selected if marked in black).
Press ENTER to confirm this
page.
Press ESC to leave this page
without modifying the existing
settings.
The instrument will record the
values of the selected harmonics
corresponding to the currents
selected in one of the two pages
of the Menu previously
illustrated.
ENTER
From 2 nd page
of RECORDER CONFIG MENU
Use the multifunction keys
F1, F2 to position the
cursor on the desired
word and use the
multifunction keys F3 / F4
to modify the value or
select / deselect the
desired parameter (it’s
selected if marked in
black).
Press ENTER to confirm.
Press ESC to leave the
Menu without modifying
the existing settings.
If you want to change Current Harm. Selection place
Cursor on the corresponding “Pg” symbol then Press F3
RECORDER CONFIG
CURRENT:
I1
HARM. REC:Pg (ON)
↓ ↑ + -
