HT instruments SIRIUS89N User Manual

Page 47

SIRIUS89N

EN - 45

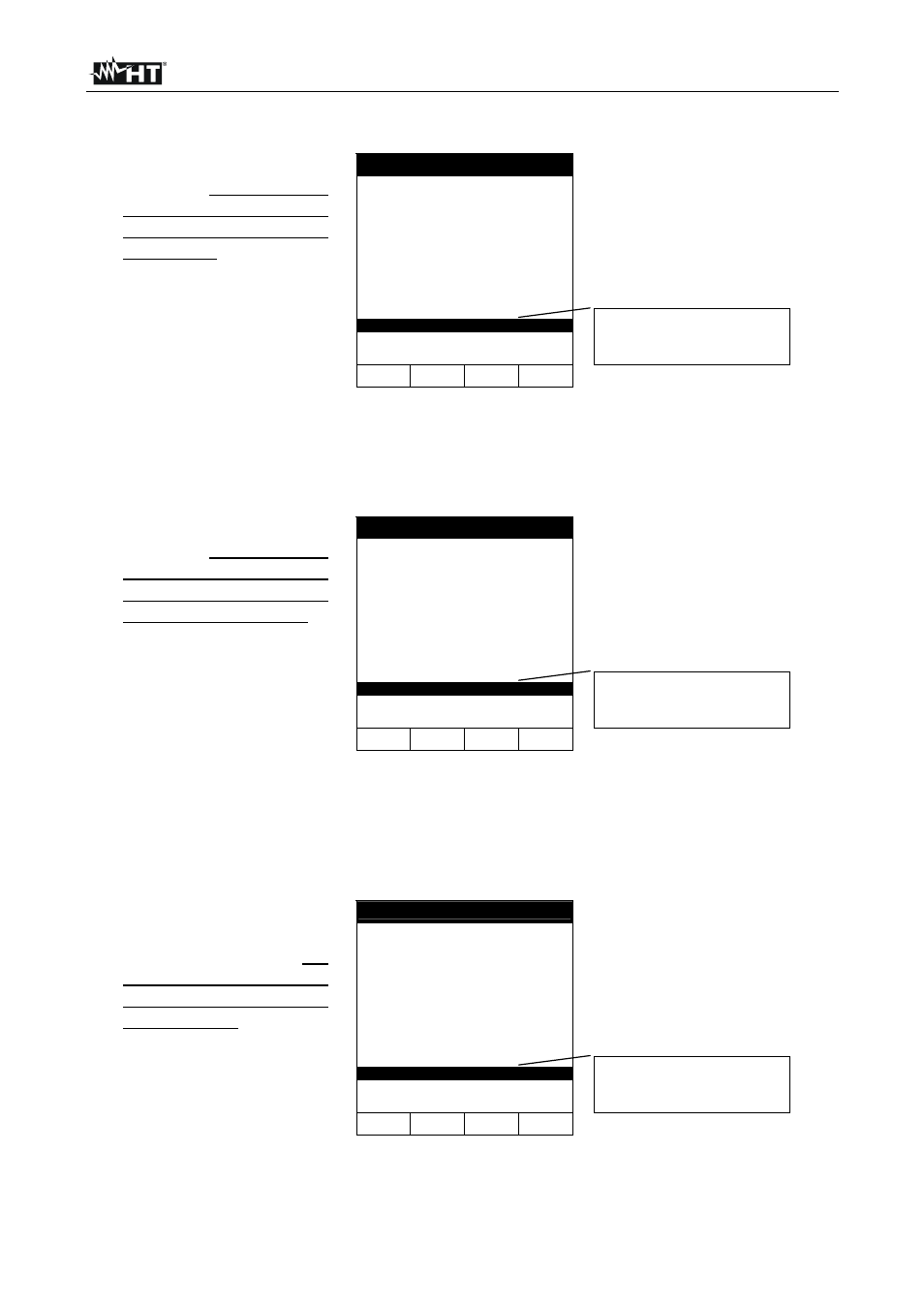

LOOP 05.06.01

- - -

Ω

---A

FRQ=50.0HZ
VP-N=231V VP-PE= 0V

CHANGE P-N

P-PE 50V

Phase and Neutral
Conductors are
exchanged.

FUNC Z2

Ω

This screen is displayed
when the phase
conductor has been
exchanged with the
neutral one.
The instrument does not
effect the test. Reverse
the schuko plug or
exchange the black
cable with the blue one.

LOOP 05.06.01

- - -

Ω

---A

FRQ=50.0HZ
VP-N= 1V VP-PE= 230V

CHANGE P-PE

P-N

Phase and Protection
Conductors are
exchanged.

FUNC Z2

Ω

This screen is displayed
when the phase
conductor has been
exchanged with the
Protection Conductors.
The instrument does not
effect the test. Reverse
the phase to earth
connection in the plug or
exchange the black
cable with the green one

LOOP 05.06.01

- - -

Ω

---A

FRQ=50.0HZ
VP-N=131V VP-PE= 227V

CHANGE N-PE

P-N

Neutral and Protection
Conductors are
exchanged.

FUNC Z2

Ω

This screen is displayed
when in a 230V Phase
to Phase System the
blue conductor was
reversed with respect to
the green one.
The instrument does not
effect the test. Reverse
the blue and green
conductors.
