GLA Overview
9

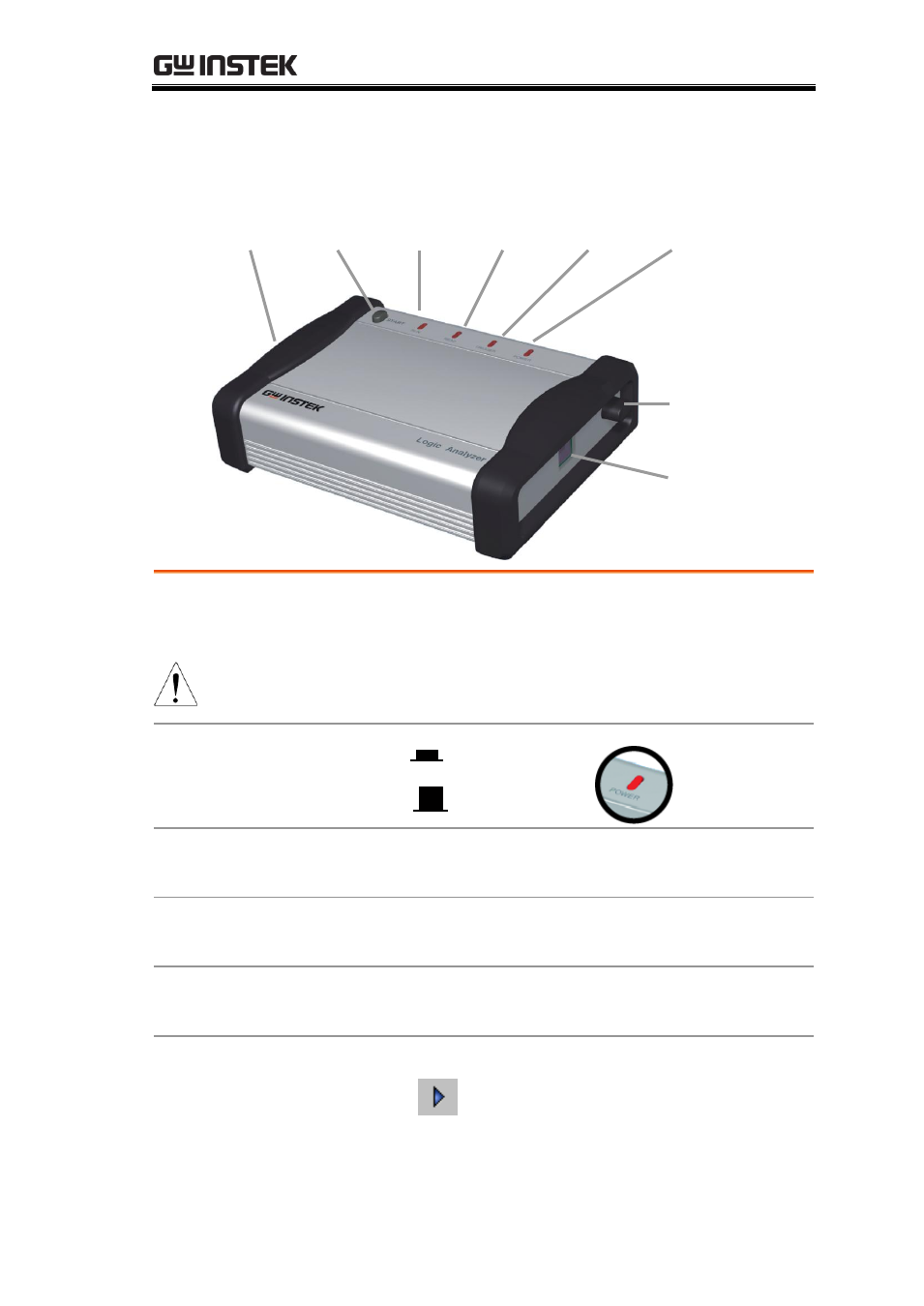

Panel Overview
Start
Switch
Power
LED
Trigger
LED
Read
LED
Run
LED
Power
Switch
USB
Connector
Input
Connector
USB Connector
For power input (USB bus) and communication between the PC.
USB 1.1/2.0 compatible.
USB2.0 is strongly recommended for smooth display update.
Make sure the cable is also compatible with 2.0 high speed (use the
attached cable).
Power Switch
Power LED
Switch On : LED On (red)
Switch Off : LED Off
Trigger LED
Turns On when the trigger condition is met. For details, see
page61 (LED details), page47 (trigger in general).
Read LED
Turns On when GLA transmit waveform data to PC. For details,
see page61.
Run LED
Turns On when GLA is waiting for trigger condition. For details,
see page61.
Start Switch
Triggers signal capturing. This is the same functionality as the
Single Run . For Run/Stop details, see page74.
