File Operation
33
Shortcut key
Ctrl+Shift+E

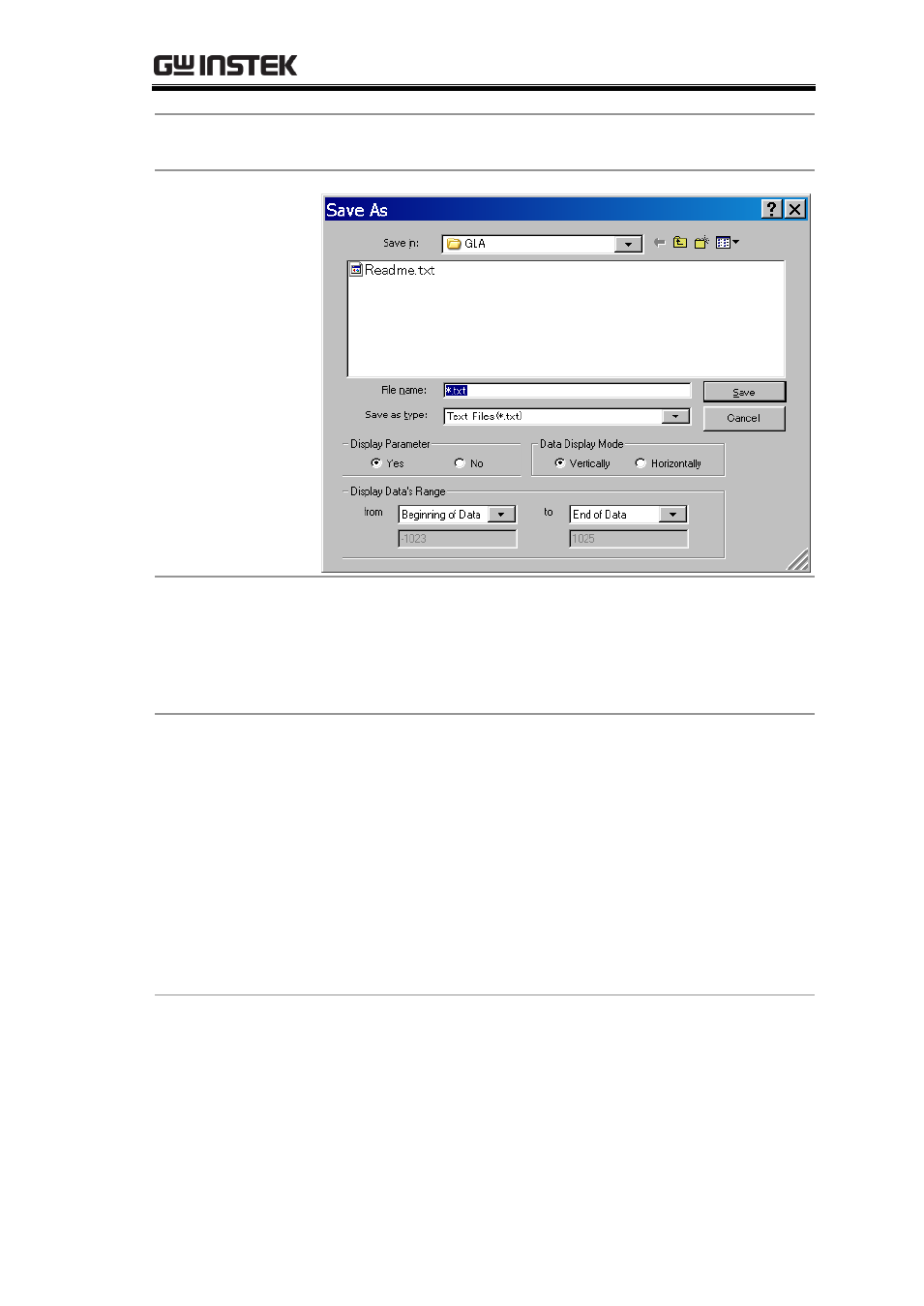

Dialogue
window
File Type *.txt
Plain Text format.
*.csv
Comma-Separated Values format. Each
waveform data is listed in tables as separate
entities.
Display
parameter
The setup information includes the following:
 File name, size, date

Sampling mode, sampling frequency
 Ram size, data compression ratio
 The number of Bus/channel

Trigger level, count, page, Enable setting

Bar position
Yes
The file contains system measurement setup
information as well as waveform data.
No
The file contains only the waveform data.
Data display
mode Vertical
Sets the waveform data format into:
Horizontal direction – channel
Vertical direction – waveform data
Horizontal
Sets the waveform data format into:
Horizontal direction – waveform data
Vertical direction – channel
