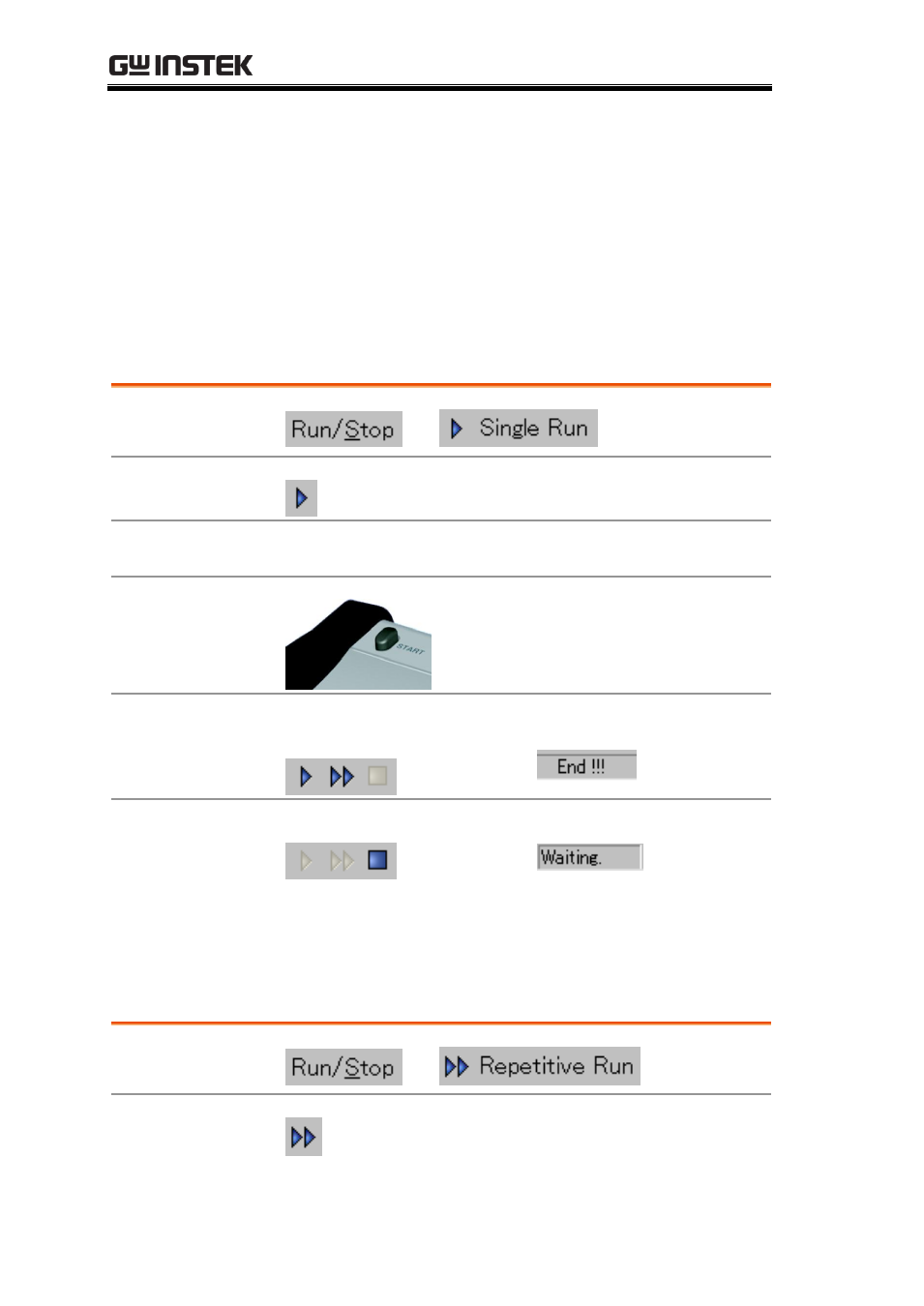

Signal Capturing
This chapter describes how to run/stop capturing signals.
Single Run
Captures data for a single period.
Menu
→
Toolbar icon
Shortcut key
F5
Panel operation
Press the Start switch.
Capturing
succeeded
Toolbar icon (go back to
default) Status bar (left bottom)
Capturing failed
Toolbar icon Status bar (left bottom)
Continuous Run
Continuously captures data. Once the memory becomes full, GLA dumps the waveform
data on the display, then restart capturing. This process is repeated until the Stop command
(see next page) is issued.
Menu
→
Toolbar icon
