GLA User Manual
14
Page78
Add data bar
Page83
Search data
Page81
Go to the previous edge
Page81
Go to the next edge
Show
time/height
group
Page69
Show waveform timing
Page90
Analyze I
2
C waveform
Page94
Analyze RS-232C waveform
Page66
Change the waveform bar height
Trigger delay
group
Page56
Set and show the amount of trigger delay

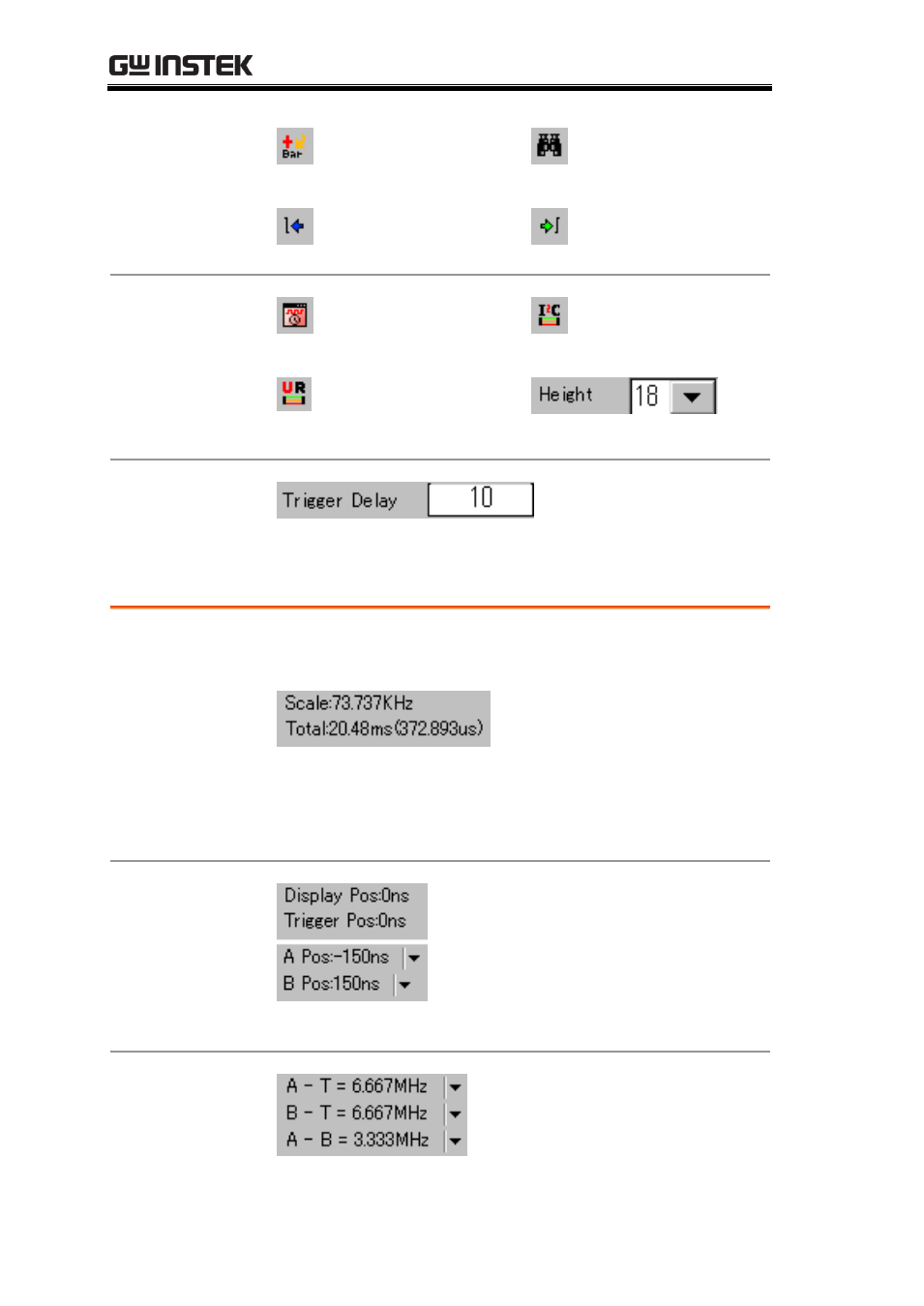

Horizontal measurement bar
Displays the horizontal scale and measurement results of the display. For details, see
page65.
Horizontal
range
Scale (upper line) shows the data
acquisition clock frequency.
Total (lower line) shows the total
length of data acquired by GLA,
followed by the length covered by
the analysis range bar. For analysis
range details, see page89.
Position
Display Pos (position) shows the
timing of the display center position.
Trigger Pos (position) shows the
trigger timing. For details, see page79.
A/B Position shows user-defined bar
timings. For details, see page79.
Time/frequency
difference
Shows the distance between two bars,
whether trigger or user-defined, in
time, frequency, or address point. For
details, see page65.
