Avaya C460 SMON User Guide 79
Using Avaya C460 SMON Dialog Boxes
Port/VLAN Tab
This tab enables you to change the display and TopN filtering options for
Port and VLAN Statistics for the Avaya C460 Device.
To access the Port/VLAN tab, Click the Port/VLAN tab at the top of the
Options dialog box. The Port/VLAN tab opens.

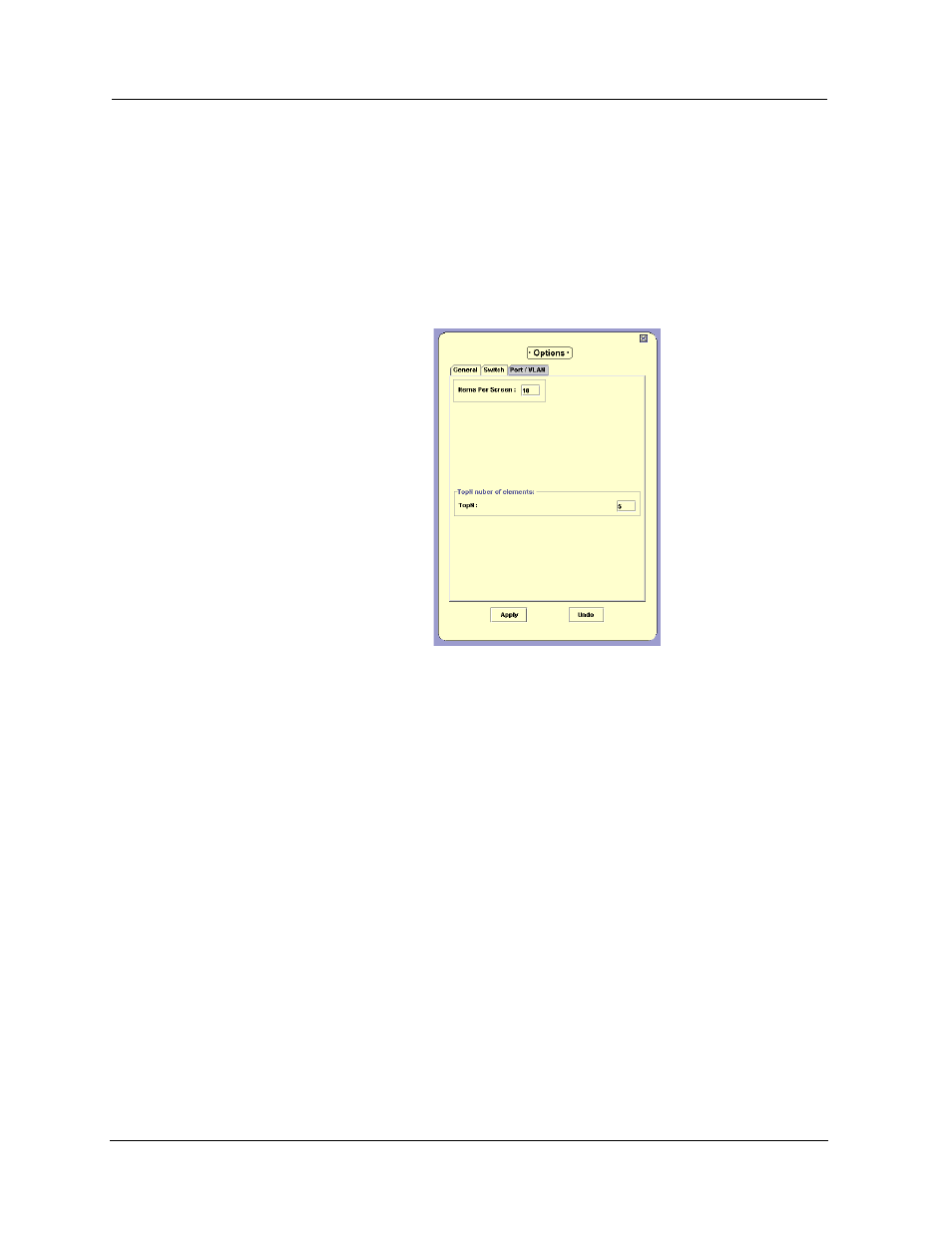

Figure A-3. Options Dialog Box - Port/VLAN Tab
The Port/VLAN Options dialog box enables you to configure the number
of ports, LAGs, and VLANs visible in the Port and VLAN Statistics
windows and the number of ports, LAGs, and VLANs displayed when
TopN filtering is active.
• To change the number of items visible on the screen, enter a
number in the
Items Per Screen field. The number of items per screen
must be between 1 and 15.
• To change the number of items displayed when TopN filtering is
active, enter a number in the
TopN field. The number of items must
be between 1 and 15.
