Using Protocol Distribution and DSCP Statistics
Using Protocol Directory
To configure the protocols to monitor:
1. Click
. The Protocol Directory dialog box opens.

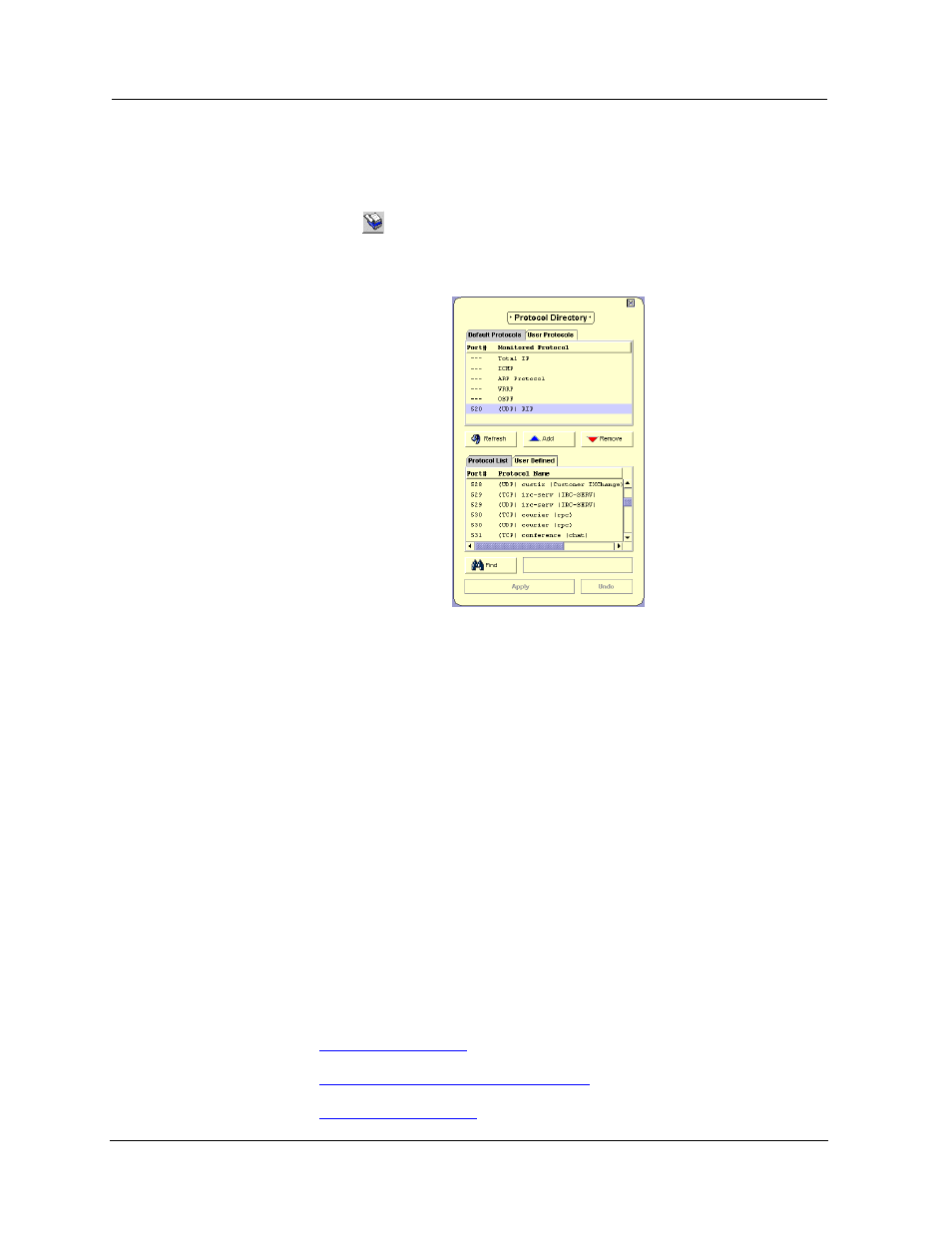

Figure 9-2. Protocol Directory Dialog Box
The Protocol Directory dialog box is organized as follows:
•
The upper section of the Protocol Directory dialog box displays a
list of
Default Protocols
on one tab and a list of
User Protocols
on the
other tab, both which are read from the device. These are the
protocols that the device monitors. There are six permanent
Default Protocols, and initially seven User Protocols that you can
replace with protocols from the tabs below.
•
The lower section of the Protocol Directory dialog box displays a
Protocol List
of known protocols. This list is used to select the
protocols that you want to monitor. In addition, you can add a
new protocol to the list, using the
User Defined
tab.
Update the
User Protocols
list and click
Apply
to update the device. The
changes in the Protocol Directory will be reflected in Protocol Distribution
after the next time the device is polled.
This section discusses the following topics:
•
•
Adding a User Defined Protocol
•
