Using the Device SMON
• Status Bar - An area at the bottom of each application window
where information about the current application is displayed.
• Status Line - An area at the bottom of the Device SMON window
where the communication status between Avaya C460 SMON and
the Avaya C460 Device is displayed.
The figure below shows the user interface, with its various parts labeled.

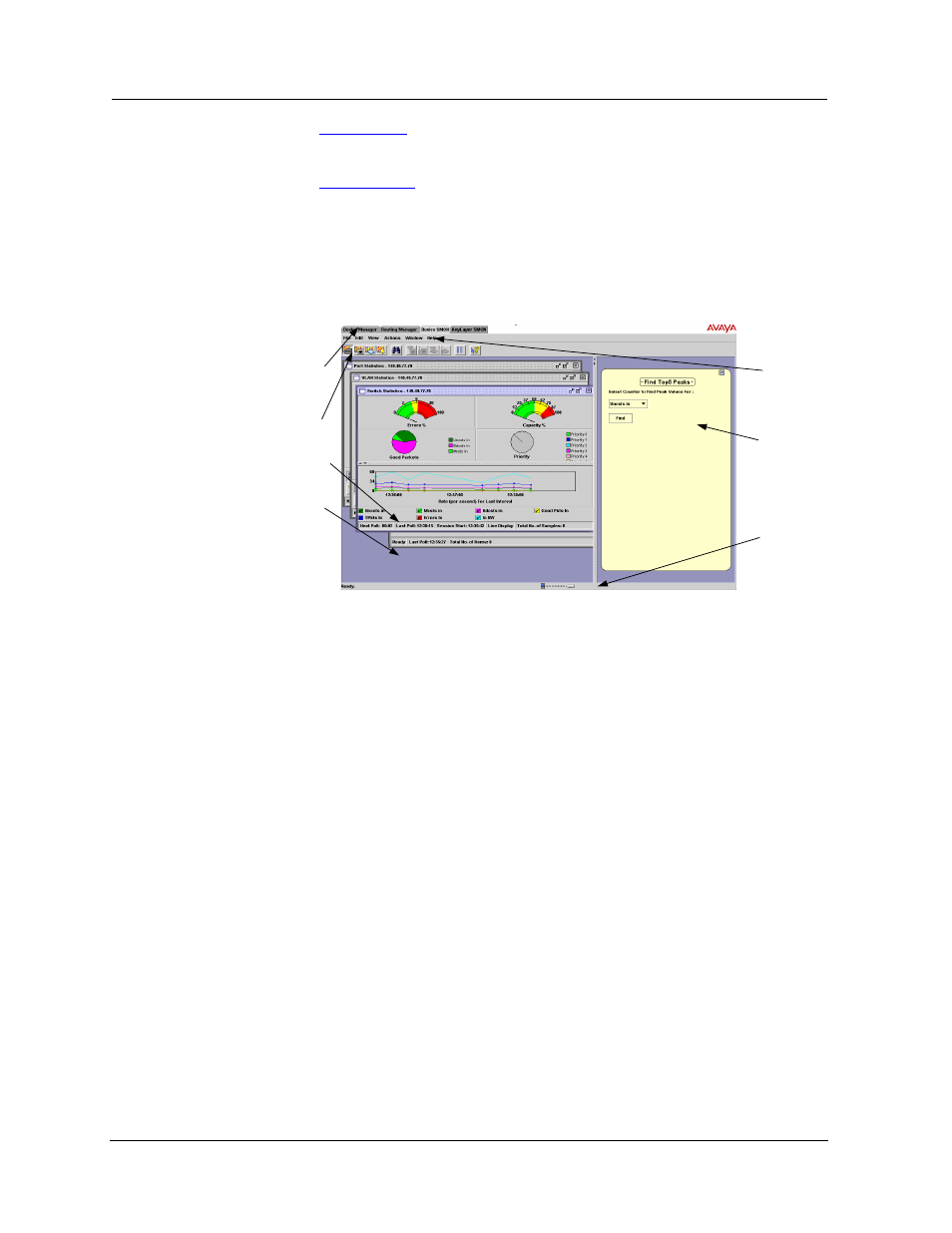

Figure 2-1. The Avaya C460 SMON User Interface
Application Tabs
The Application Tabs provide a method for selecting the view of the
device.
To switch to the device management view of the Avaya C460, click
Device Manager . The Avaya C460 Device Manager opens.
To switch to the Device SMON view of the Avaya C460, click
Device SMON . Avaya C460 SMON opens.
To switch to the Routing Manager view of the Avaya C460, click
Routing Manager . Avaya C460 Routing Manager opens.
Toolbar
Dialog Area
Status Line
Desktop
Application
Tabs
Status Bar
Menu Bar
