SEED HAWK ® 2014 30 SERIES OPERATOR’S MANUAL – DOMESTIC 18
Item Description
1 Seed Knife
½” thick, includes stainless steel clip and
rubber drop tube
2 Fertilizer Knife
½” thick, includes stainless steel clip and
rubber drop tube
3
Packer Tire (Pneumatic or
Semi-Pneumatic) The packer/gauge wheel. 5 bolt hub for
tapered hub and bearing
4 Packer Arm Improved mud clearance
5 Main Shank Arm 5/8” thick
6 Shank Cylinder
Hydraulic pressure applied to the rod end
of the cylinder
7
Depth Adjustment pivot
point
The relationship of seed to fertilizer place-
ment will always stay the same with the
pivot point at this location
8
Quick Pin depth setting
device
A positive pin setting. Provides easy
adjustment to obtain optimum seed and
fertilizer depth
9 Chain
A visual from the tractor cab to use as a
reference to the proper packing and pene-
tration forces needed per field
3.5 Openers

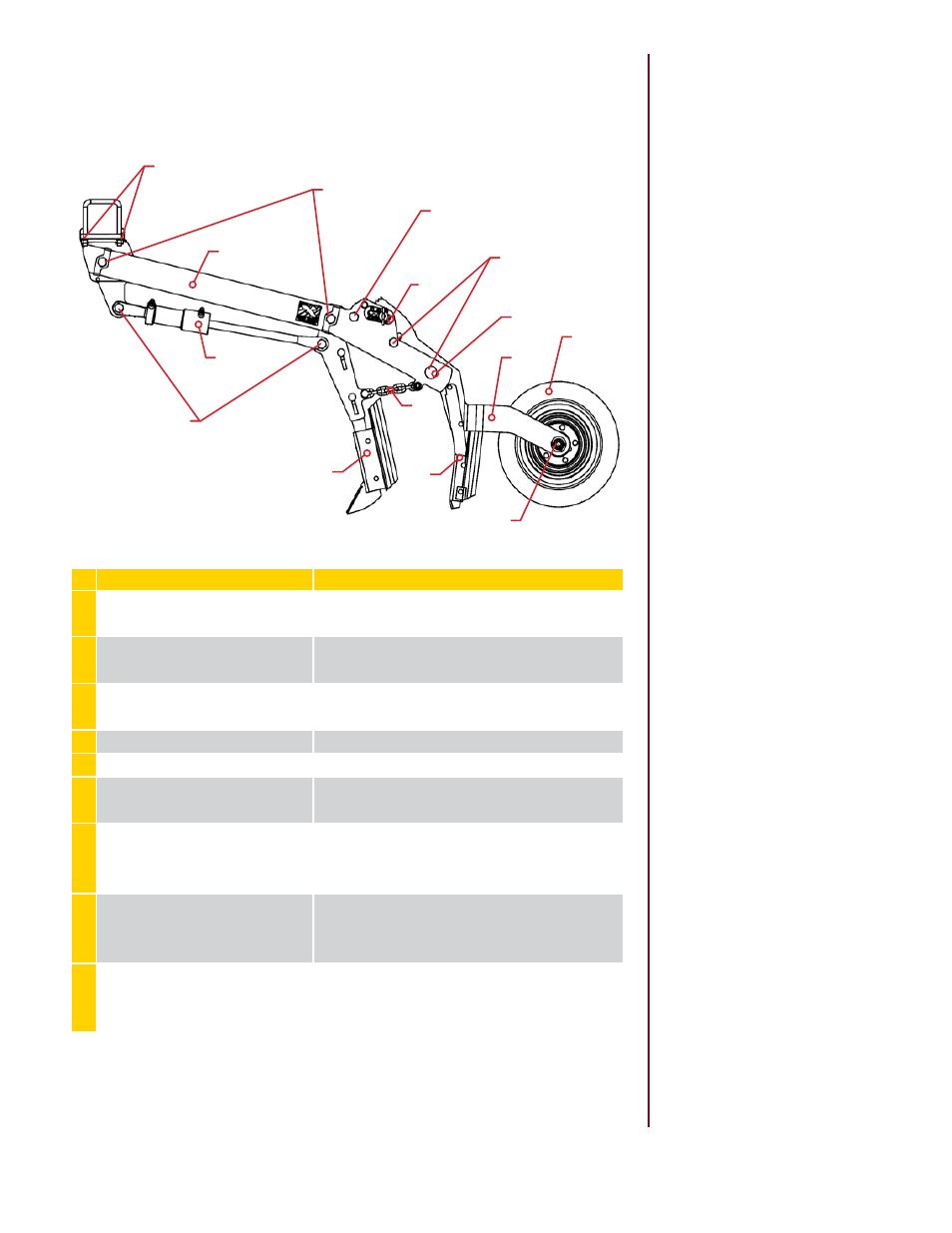

3.5.1 Quick Pin Opener
1
6
5
9
3
8
2
7
4
140 lb-ft
(190 N•m)
180 lb-ft
(244 N•m)
65 lb-ft
(88 N•m)
65 lb-ft
(88 N•m)
50 lb-ft
(68 N•m)
100 lb-ft
(136 N•m)
NOTE: Seed and fertilizer depth are always measured down from the packed
surface of the furrow.
