9.16 Evolution 3000 & 3001 Power Connection

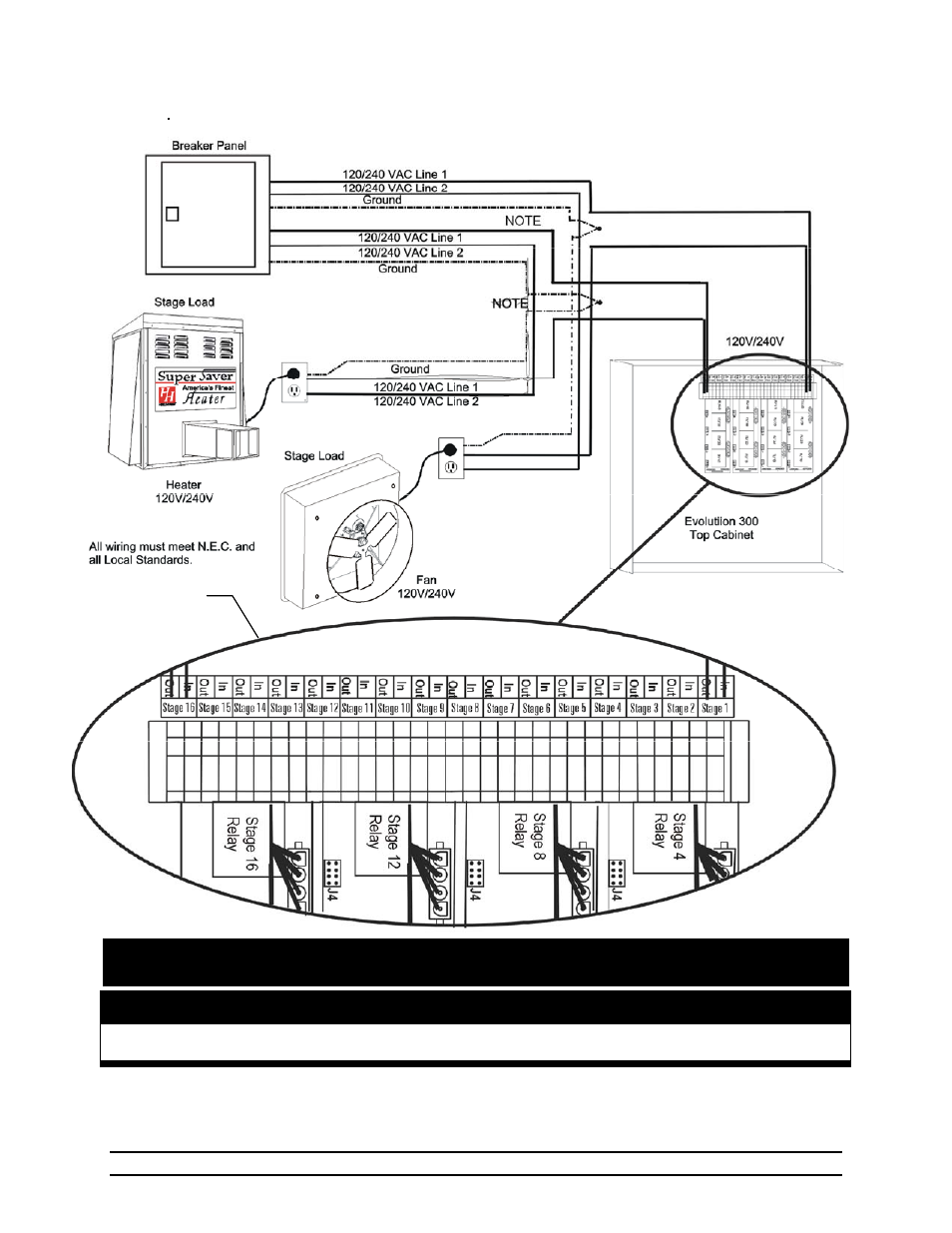

NOTE: Example above shows how to wire stages to heating & cooling equipment. Stage numbers are
shown on label affixed to inside top of controller box.
Connecting Power from Breaker to a Heat Stage
And a Cool Stage in the Evolution 3000
Terminal block for
stage connections
Evolution
3000 & 3001
Top Cabinet
WARNING!
Keep High Voltage (Or AC) Separate From Low Voltage Wires!
