Warning – Hired-Hand Evolution Series 3000/3001 User Manual
Page 46
Part No. 4801-5307 Rev 2-10
Evolution 3000 and 3001
46 of 70
9.3

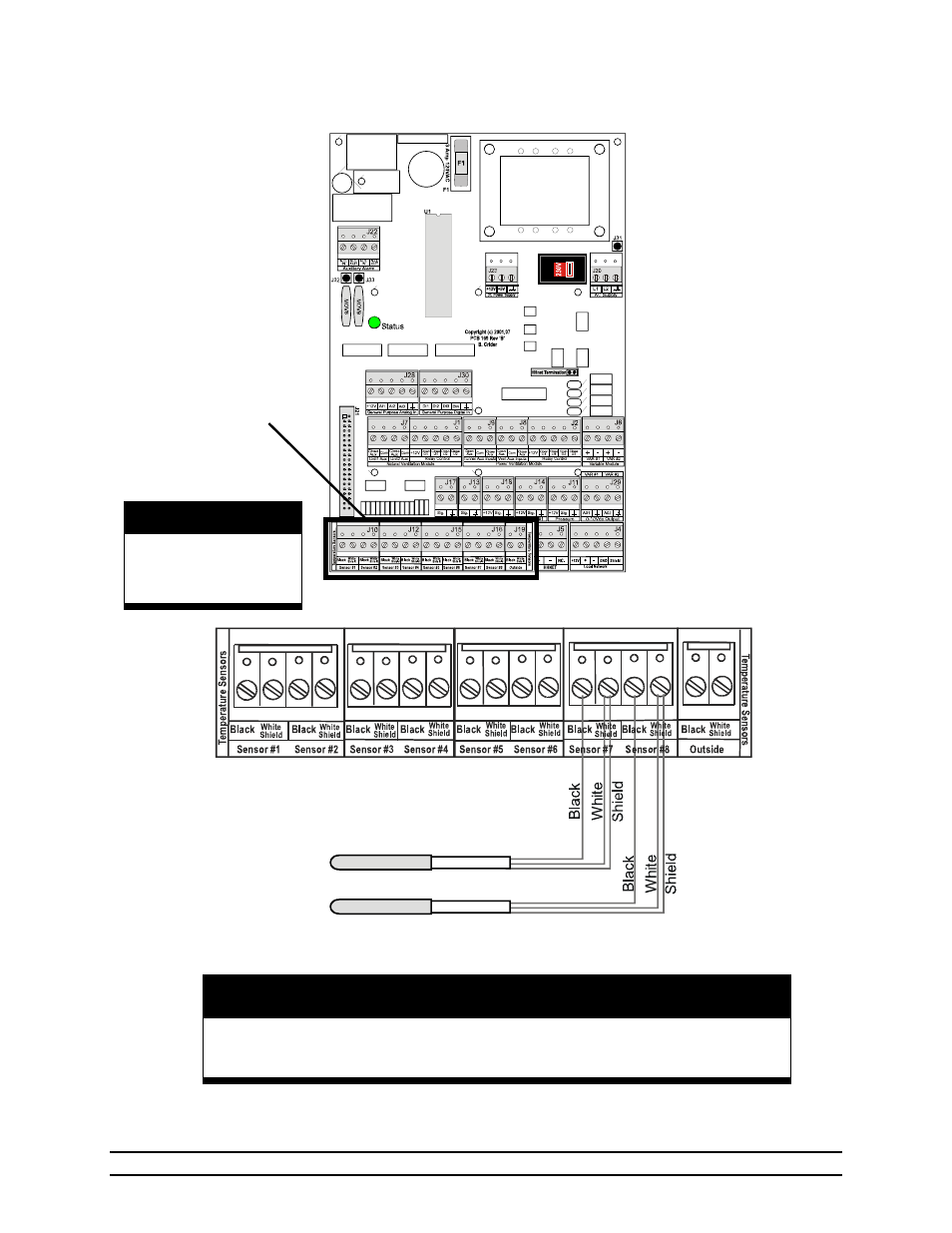

Connecting Temperature Sensor to Evolution
3000 & 3001
Warning!
Tape Shields To Prevent Bare Wires From Touching!
PCB 169
WARNING!
LOW VOLTAGE!
Keep Separate From
High Voltage Wires!
Inset A
NOTE: Other sensors are
connected similarly.
Inset A
