Part No. 4801-5307 Rev 2-10

Evolution 3000 and 3001

15 of 70

Inlet

Conditions

"

#

STATUS

MODE

PRESS

OPENED

CLOSED

U1 Close Vent

0.00 No

No

U2 Close Tun

0.00 No

No

# STATUS

MODE RTEMP

ON

OFF

TIME

----------- TARGET

70°

---------

V1 0%

CTUN 79.4°

89.4 89.0

Ramp

V2 0%

Cstir 79.6° 89.4

89.0

None

1

On

Light

Ramp

2

On

Cstir 79.6° 76°

95°

None

.

. . . . .

.

16 On

Cstir 79.6° 76°

95°

Min1

Inlet Conditions

"

(1)#

(2)STATUS

(3)MODE

(4)PRESS

(5)OPENED

(6)CLOSED

U1 Open

Vent

0.04 No

No

U2 Close

Tun

0.04 No

Yes

.

. .

.

. .

.

. .

.

.

.

.

.

(14) Min Temp - The minimum temperature. The

timer will be at minimum Run %.

(15) Cool Timer: Cool timer is also allowed a

different timer cycle if needed. This can be used
for foggers or cool cell systems.

(16) Max Run - The Cool Timer Maximum Run Time

percentage.

(17) Cycle - Cycle Time in Minutes. Cool timer is

also allowed a different timer cycle if needed.
This will be used for foggers or cool cell systems.

(18) Min Run - The Cool Timer Minimum Run Time

percentage.


6.4 Stage

Conditions

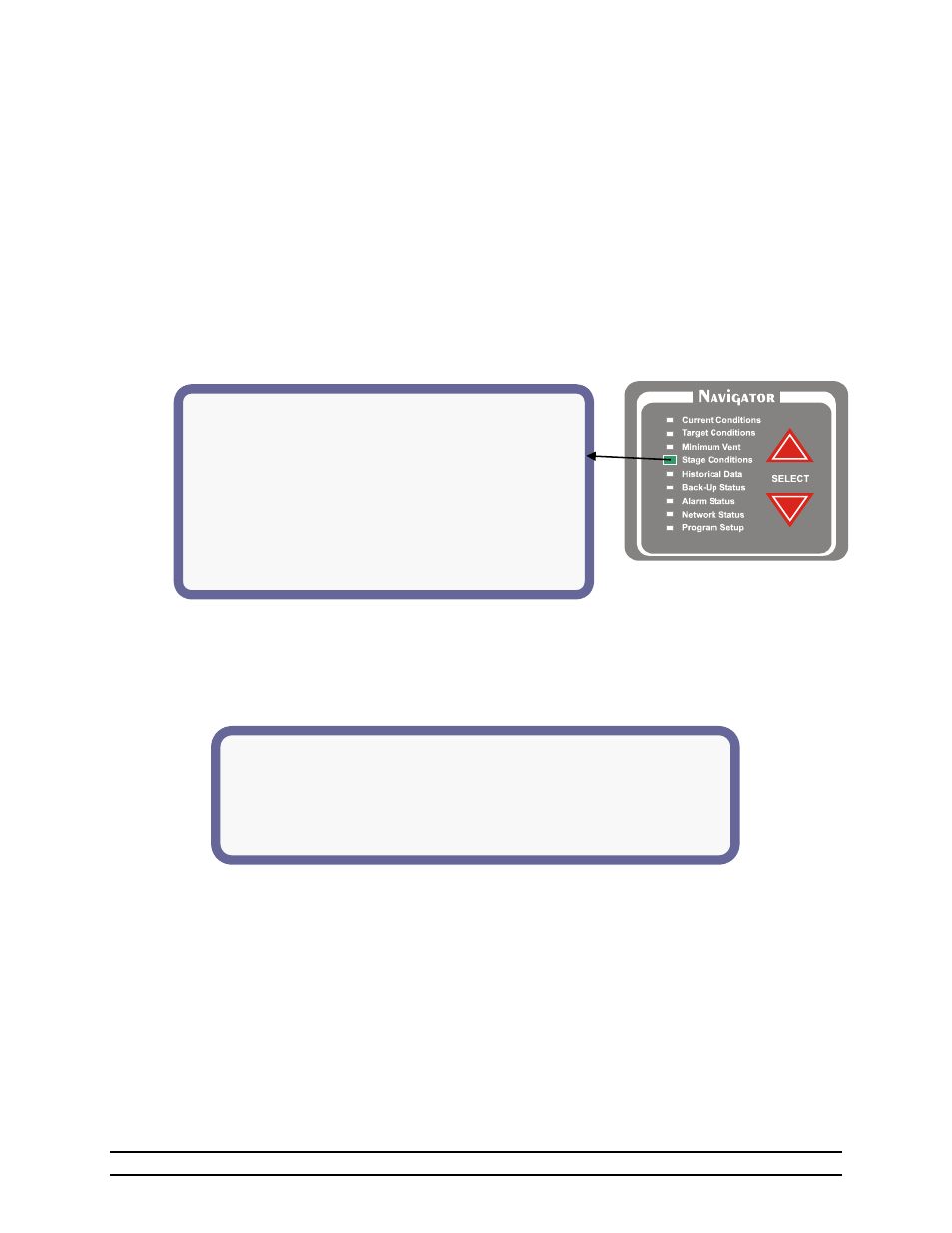

When the Stage Conditions screen is selected by using the Navigator Select arrows, the following menu
screen is shown. Use the up and down arrows in the Editor to view the desired information. Notice that
the Light Clock and Feed Clock Stages are listed after the Inlet Conditions section. The Heat Stages are
then displayed in order of increasing ON Temperatures. The Cool stages, including the Variable Output
stages, are listed below the Target Line in order of increasing ON Temperatures.














6.4.1 Inlet Conditions

The Inlet Conditions part of the Stage Conditions screen is used to control Power Trak operation for power
ventilation. U1 is normally for baffle boards and U2 controls tunnel inlets.









(1) #- The stage bank either U1 or U2.
(2) Status - Indicates if the Stage is Off, Opening or Closing.
(3) Mode – The mode column tells you how the machine will be operating. If it will be a vent machine

"VENT" or a tunnel machine "TUN" machine.

(4) Pressure – Indicates the pressure in the building.
(5) Opened – Indicates if the machine is fully open (Yes or No). When the machine is fully open on the

open auxiliary switch, this column will indicate a “Yes”.

(6) Closed – Indicates if the machine is fully closed (Yes or No). When the machine is fully closed on the

closed auxiliary switch, this column will indicate a “Yes”.
