Hired-Hand Evolution Series 3000/3001 - Manual (Page 48)

Part No. 4801-5307 Rev 2-10 Evolution 3000 and 3001 48 of 70

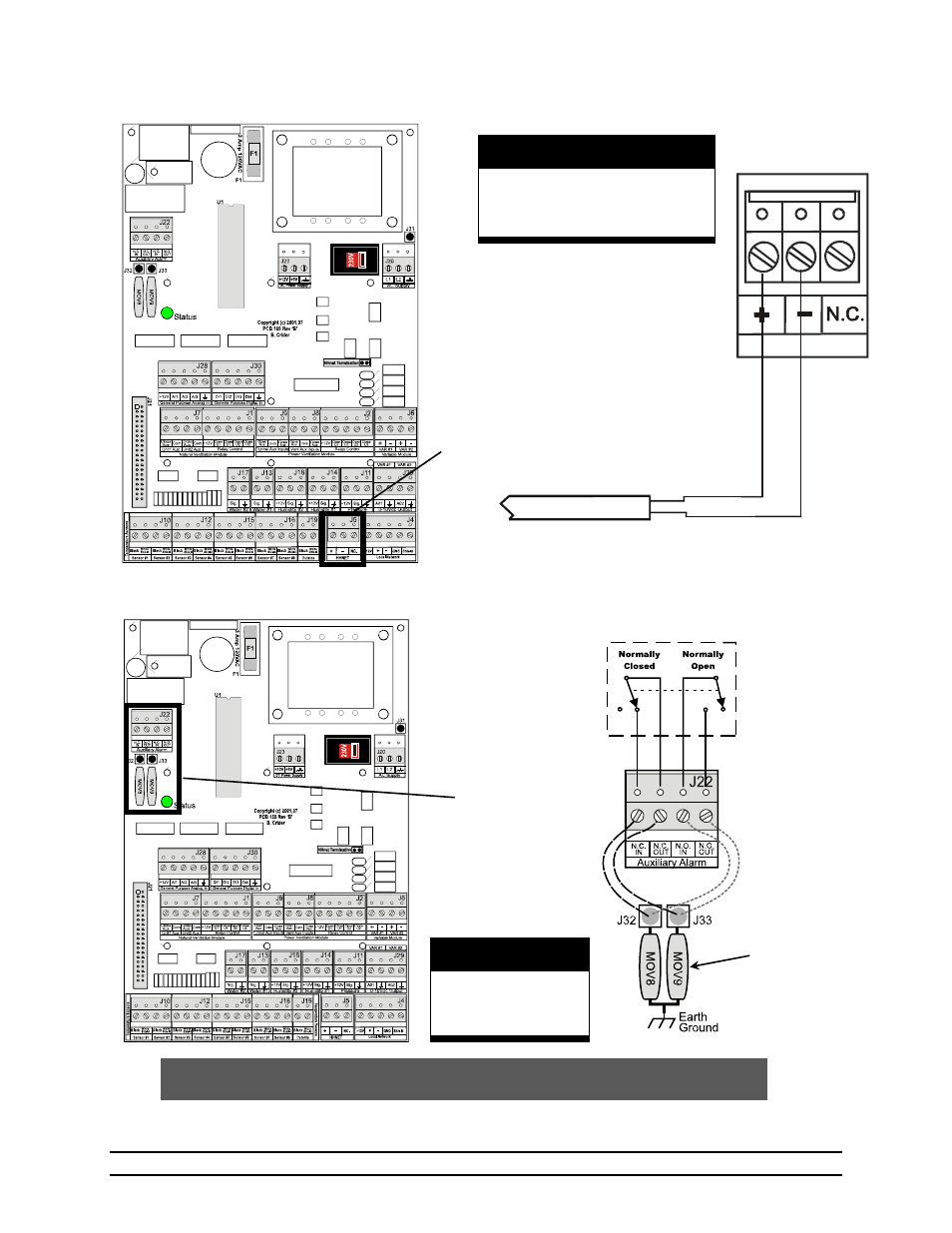

9.6 Connecting PC Network to Evolution 3000 & 3001
9.7 Connecting Alarm Device to Evolution
3000 & 3001
WARNING!
LOW VOLTAGE!
Keep Separate From
High Voltage Wires!
Inset A
PCB 169
Inset A
Twisted Pair
Cable
WARNING!
LOW VOLTAGE!
Keep Separate From
High Voltage Wires!
Inset A
NOTE: The internal wiring shows the condition of the relay during normal conditions
(no alarm present). During an alarm condition, the contact positions will be reversed.
N.O.
for Parallel Alarm N.C.
for Series Alarm
Internal Circuit
Board Auxiliary
Alarm Relay
PCB 169
Inset A
On-Board Surge
Arrestors for
use with either
N.O. or N.C.
side.
