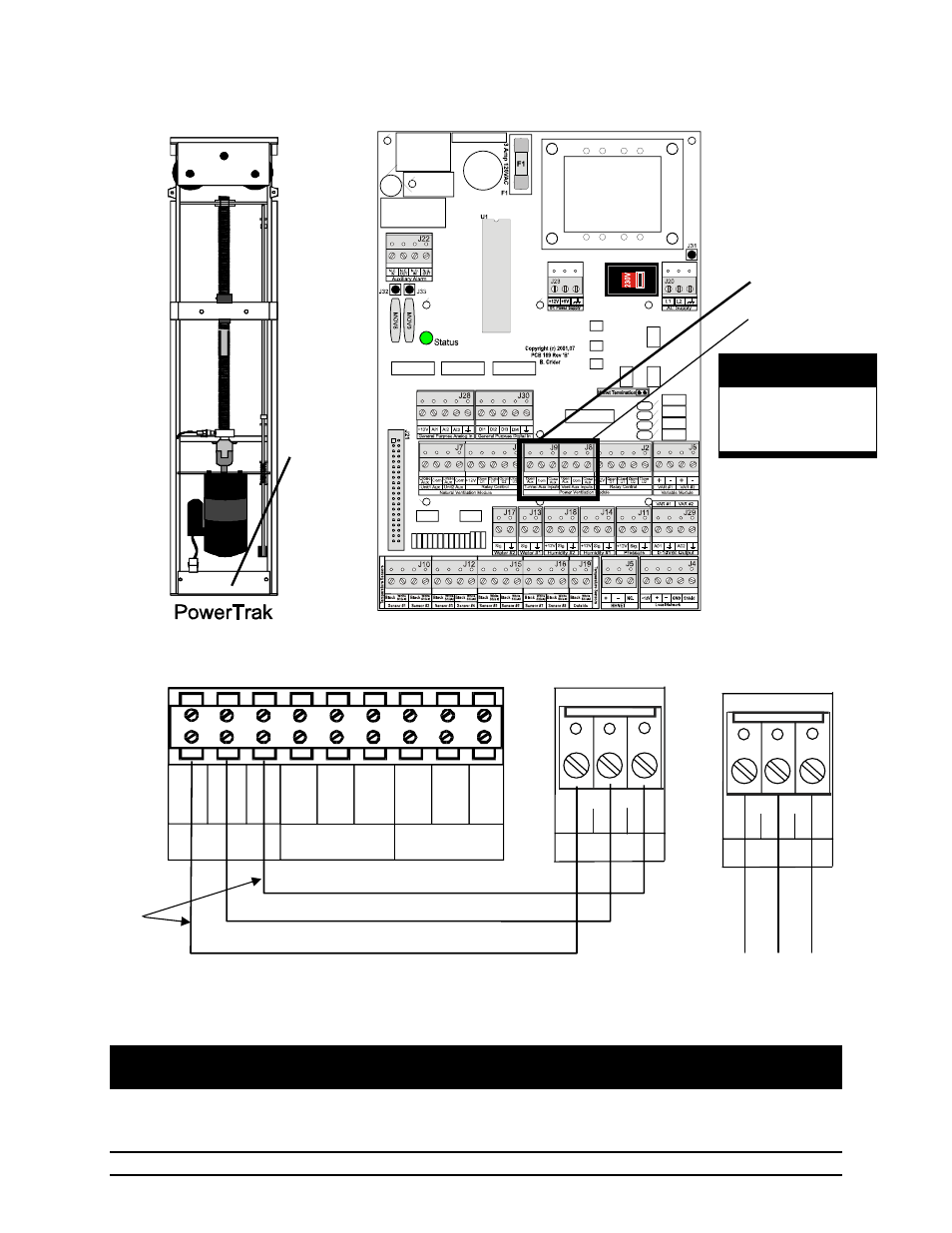

9.13 Connecting the PowerTrak Power Auxiliary Switches to Evolution
3000 & 3001
PowerTrak
AUX
SWITCH
CONTROLLER
AC IN
HOT
NE
UT
.
LOW
E
R
GND.
HOT
OUT
CL
OS
E
IN
O
PEN
IN
COM
U
PPER
NOTE: If curtain is setup to pull curtain up to open, then reverse wires connected
to“Upper” and “Lower” terminals.
Inset A
Tunnel Aux. Input
Open
AUX
Close
AUX
Com
Inset A
Tunnel Auxiliary
Input
See Note
below
Inset C
Inset C
Vent Aux. Input
Open
AUX
Close
AUX
Com
Inset B
Vent Auxiliary
Input
NOTE: Vent auxiliary
connects the same as
tunnel auxiliary.
Inset B
WARNING!
LOW VOLTAGE!
Keep Separate From
High Voltage Wires!
PCB 169
