Calibration 47
5.0 Calibration
The UMC600 indicator can be calibrated using single slope span calibration or five-point linearization. Zero must
be calibrated (see Section 5.1) before either span or linearization calibration can be performed.
5.1 Zero Calibration
Zero calibration is accomplished by the following steps:
1. Clear the scale (no load).
2. Close SW1-3 (dead load). The leftmost display digit should be flashing C as shown in Figure 5-1.

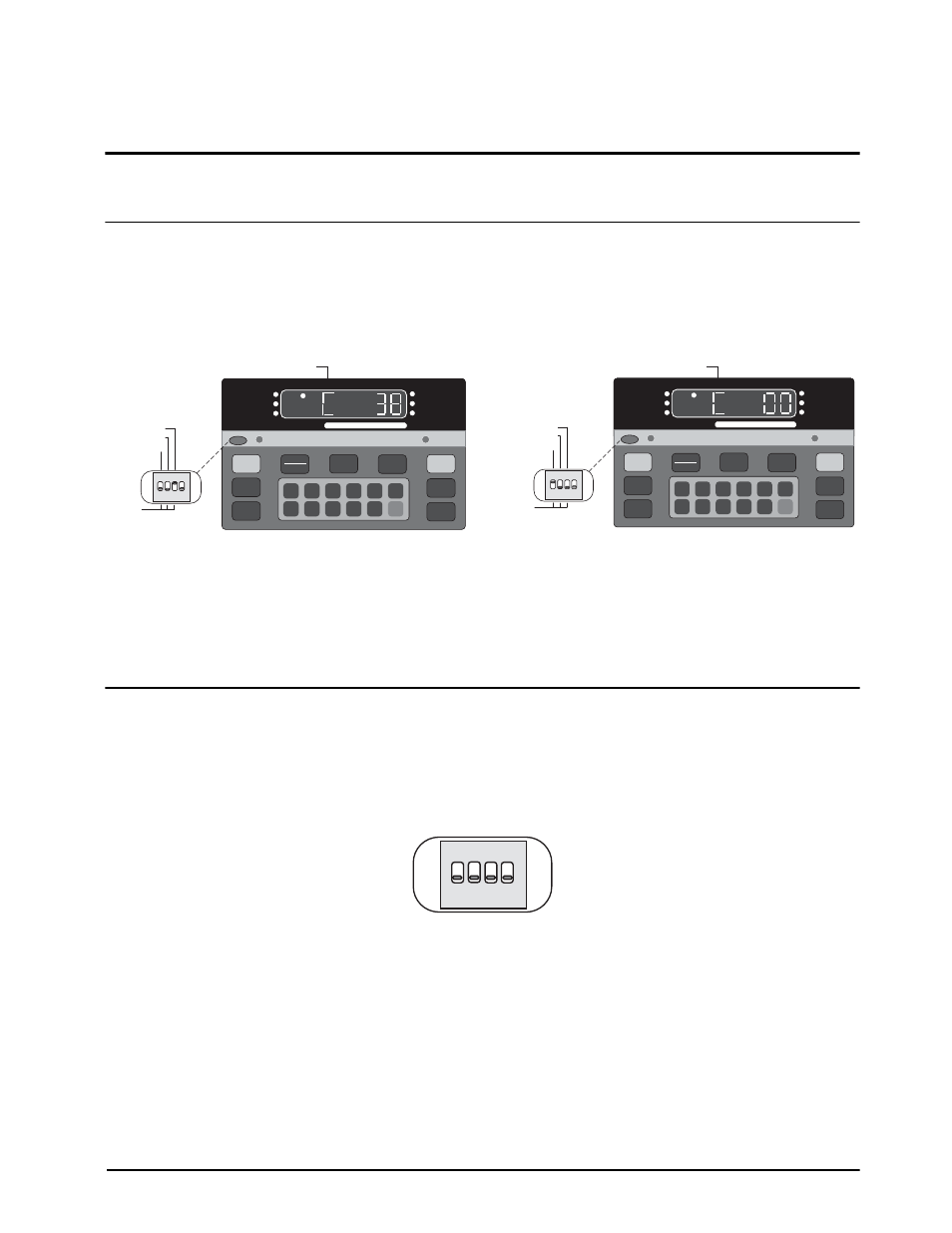

Figure 5-1. Close Switch 3
Figure 5-2. Close Switch 3 and Open Switch 1
3. Adjust dead load potentiometer to obtain a reading at or near zero (see Figure 5-2).
4. Open SW1-3 and close SW1-1 to put the indicator in the digital calibration mode. The display may change
from a zero reading, which is acceptable.
5. Press the ZERO key. The display should read ---CAL , then return to a zero reading.
5.2 Single Slope Span Calibration
1. Place a test weight on the scale and wait for the motion LED to go out.
2. Enter weight value using keyboard. When correct, press ENT . The display will read ---CAL briefly, then
return to the correct reading.
3. Recheck by clearing scale.
4. Open all switches to place the unit in normal weighing mode (Figure 5-3).
Figure 5-3. SW1 with All Switches Open
5. Close center bar and tighten center bar screws. Seal the unit if used in a legal-for-trade application.
1
6
2
7
3
8
4
9
5
0
CE
ENT
TARE
RECALL
NET
GROSS
TARE lb/kg
CONV
PRINT
1 SET
POINT
2 SET
POINT
CAPACITY 5000 lb. X 0.5
ZERO
NET
GROSS
lb
kg
MOTION
ZERO
DEAD LOAD (3)
CONF (2)
CAL (1)
3 4 2 1
OPEN
NORM
FLASHING
1
6
2
7
3
8
4
9
5
0
CE
ENT
TARE
RECALL
NET
GROSS TARE lb/kg
CONV PRINT
1 SET
POINT
2 SET
POINT
CAPACITY 5000 lb. X 0.5
ZERO
NET
GROSS
lb
kg
MOTION
ZERO
DEAD LOAD (3)
CONF (2)
CAL (1)
3 4 2 1
OPEN
NORM
FLASHING
3 4 2 1
OPEN
