1.3 Name and Function of Each Part

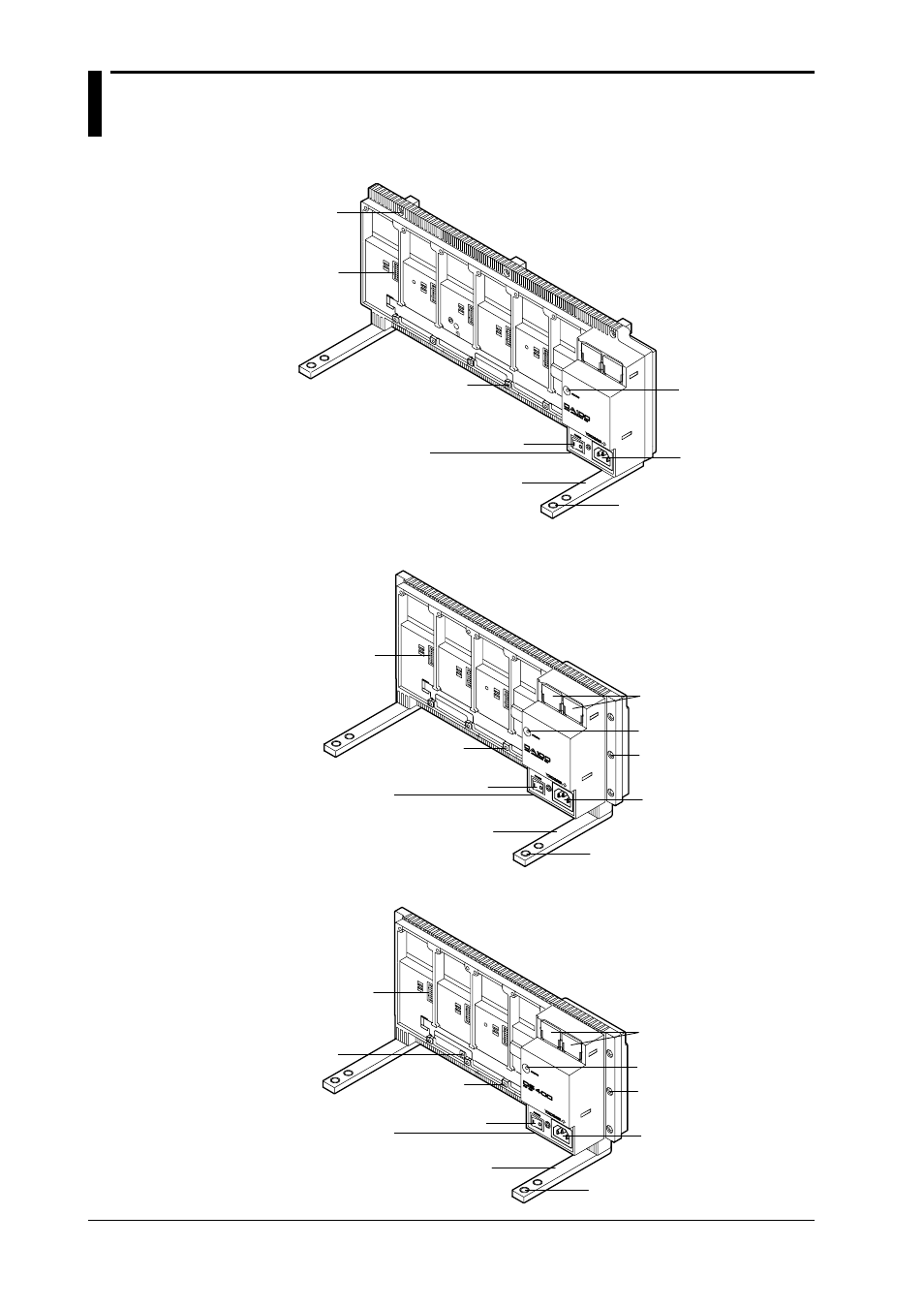

DA100 Stand-alone type (DA100-1)
Installation
holes
Power switch
Function grounding
terminal (below power switch)
Power connector
Feet
Status indicator
Holes for fastening the feet
Screw holes for
module installation
Module
connector
DA100 Expandable type (DA100-2)
Power connector
Power switch
Feet
Status indicator
Module connector
Installation holes
Screw holes for
module installation
Holes for fastening the feet
Lid covering the extension
cable connector
Function grounding
terminal (below power switch)
Subunit DS400
Power connector
Power switch
Feet
Status indicator
Module connector
Installation holes
Screw holes for
module installation
Holes for fastening the feet
Lid covering the extension
cable connector
Switch to set the
unit number
Function grounding
terminal (below power switch)
