Enter a destination folder and file name and click the OK button.

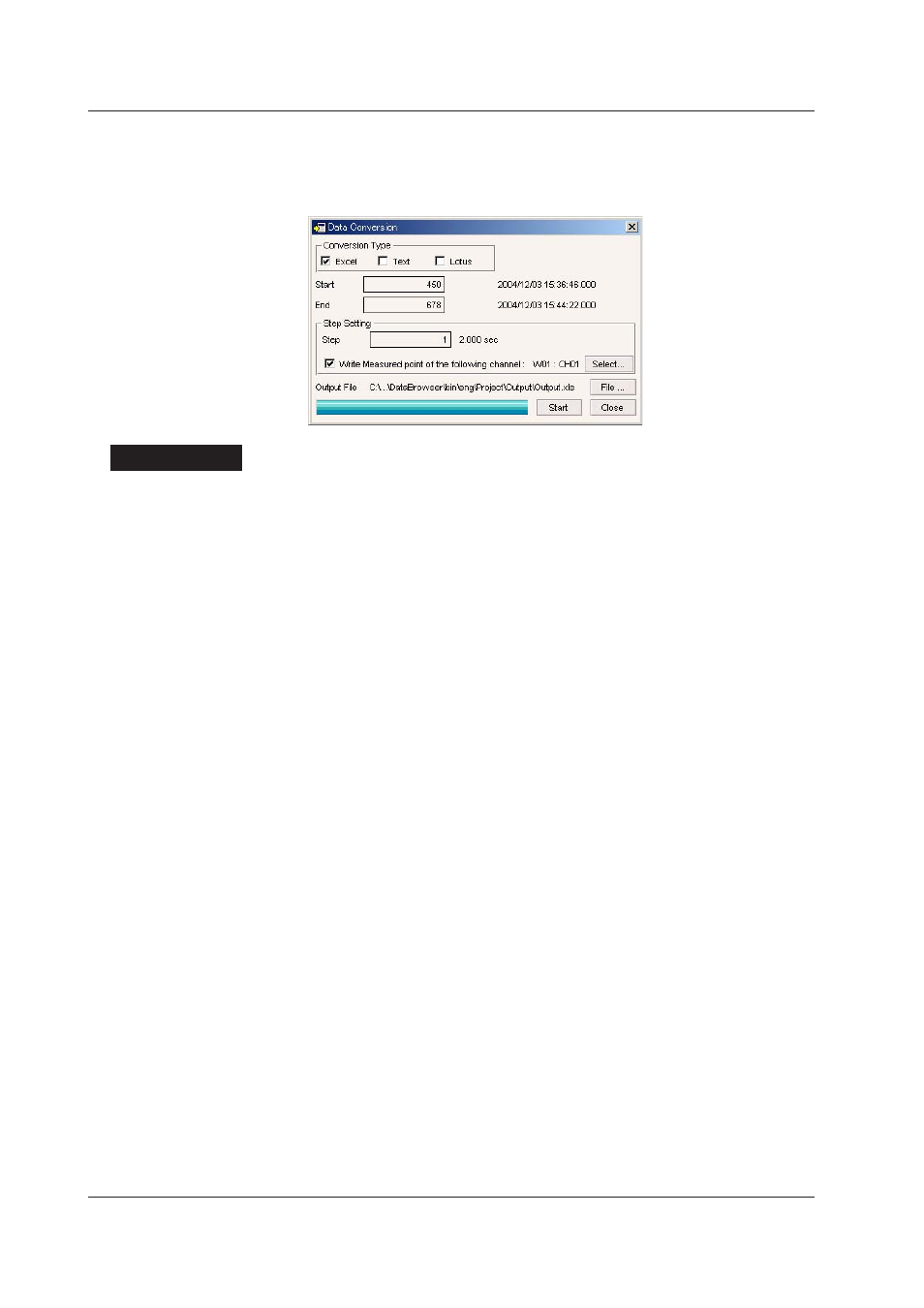

The name of the output file appears in the Data Conversion dialog box.
9.
Click the Start button.
Explanaton
Converson Type
Excel
Data that can be opened using Microsoft’s spreadsheet application Excel version 8.0
(Excel97) or later. The extension is .xls.
Text
Text data with each data point separated by a comma. The extension is .txt.
Lotus
Data that can be opened using Lotus”spreadsheet application 1-2-3 version 2.0 or
later. The extension is .wj2.
Start and End Ponts
You can select a range of data to convert. If cursors are placed in the trend display
screen, the range determined by the cursors defines the start and end points. If no
cursors are displayed, all the first and last data of all the data represent the start and
end points. Also, the start and end times are displayed to the right of the entry boxes.
Step Settng
You can specify an interval for data conversion output. This area includes the setting
for the number of steps, and a setting for specifying the channel whose measured
points are to be output (Write Measured point of the following channel).
• If the Write Measured point of the following channel check box is not selected, the
measured points of all channels assigned to the group are output, and the smallest
unit interval is used as the reference interval.
• If the Write Measured point of the following channel check box is selected, the
interval of the selected channel is used as the reference interval.
• By specifying the number of steps, rather than outputting all points in the range
(steps = 1), you can thin the data by outputting only the points sampled at certain
intervals.
