3-2 IM WX201-01E
Explanaton
Group Name
You can specify a group name using up to thirty alphanumeric characters.
No.
Number assigned within groups.
Channel, Tag Number, and Tag Comment
Displays identifiers for the channels (display can be switched using the group tab tool
bar).
Start Tme
Time of the first data.
End Tme
Time of the last data.
Trgger Tme
Time of the trigger point (if no trigger point exists, the first data is used.)
Interval [sec]
The save interval for the data.
Data Sze
The number of saved data.
Data Type
The instrument or software that saved the data.
Fle Name
Name of the file to which the channel belongs.
Host Name
Name of the host on which the channel to which the file belongs resides.

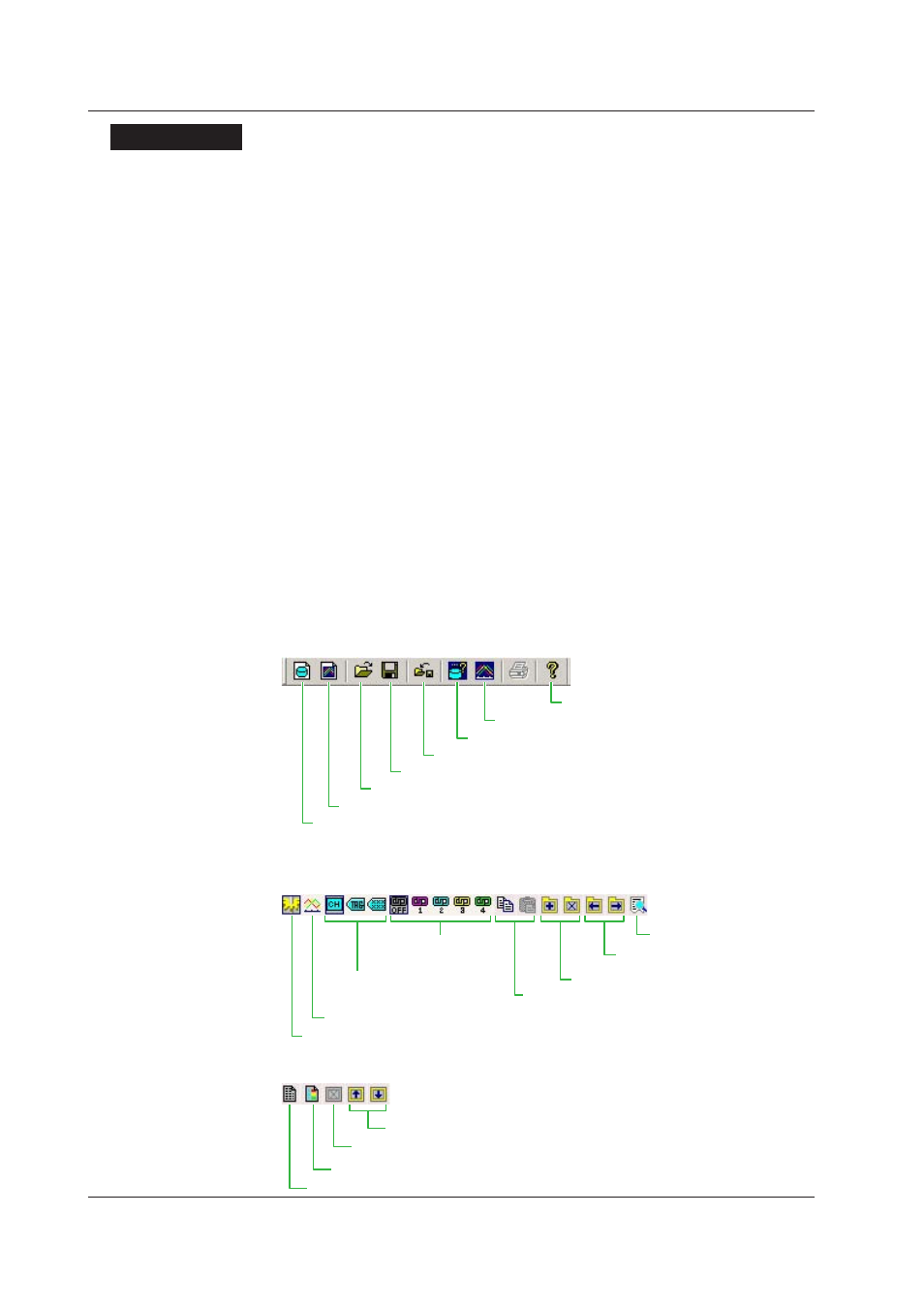

Toolbar
Displays version information.
Displays the Trend display window.
Displays the Search window.
Copies data files
Saves Trend settings files
Opens Trend settings files
Opens new Trend Display window.
Opens new Search window.
Dsplay Channel Settng Screen Toolbar (for Channel Info and Confgure
Screens)
Displays channel details.
Moves groups
(forward, backward)
Copy/Paste
Linked group setting
(OFF, 1, 2, 3, 4)
Switches between Channel,
Tag No., and Tag Comment
Opens the trend display screen.
Opens the channel setup screen.
Adds/deletes groups
Dsplay Channel Settng Screen Group Tab Toolbar
Moves channels (up and down)
Displays channel display configuration
Deletes channels
Displays channel information
3.1 Names of Parts n the Trend Dsplay Wndow
