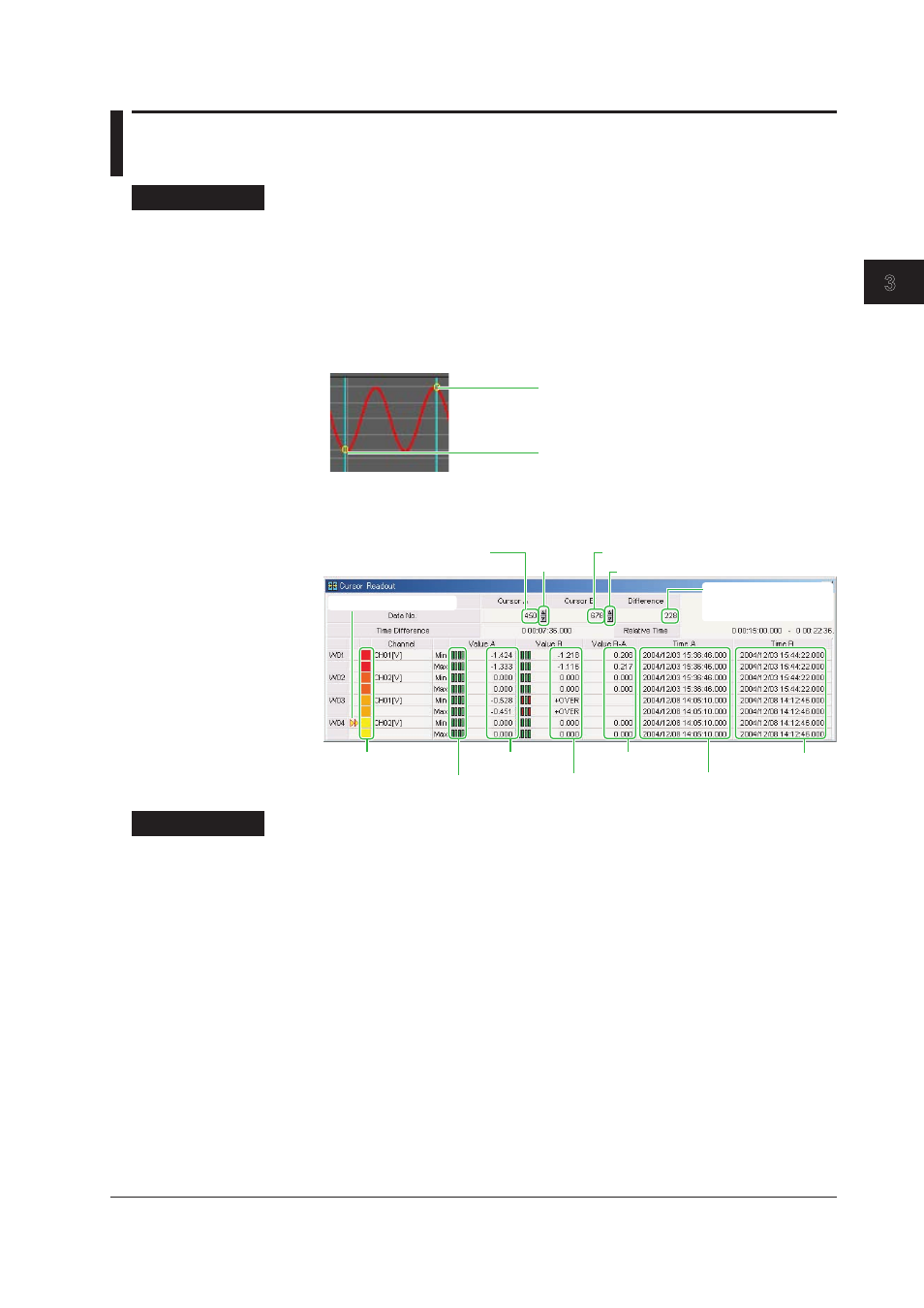

3.5
Dsplayng Cursor Values
Procedure
1.
In the waveform display, click the group from which you wish to read values using
cursors.
2.
Click the position in the waveform display area where you wish to read the data.
If you wish to read another point at the same time, drag the cursor. Cursor A
appears at the position where you first clicked; Cursor B appears at the position
where you released the mouse button. The measurement point is displayed where
the waveform and the cursor cross using a yellow circle.
Cursor A
Cursor B
3.
Click the Display Cursor Rearout button on the toolbar. The Cursor Readout
dialog box opens.
Alarm indication
Value of Cursor A
Value of Cursor B-A
Value of Cursor B
Time of Cursor A
Time of Cursor B
Move
Cursor A
Move Cursor B
Data number at the
Cursor A position
Data number at the Cursor B position
Difference in the data
number between
Cursor A and B
Channel display
color
Active channel mark
Explanaton
The data at the currently displayed cursors are displayed.
Data No.
Displays the data number at the Cursor A and B positions.
Tme Dfference
Displays the time difference between cursors A and B.
Relatve Tme
Displays the time using the first data of the displayed range between cursors A and B
as a reference.
Value A and Value B
Displays the values and alarms of each channel at cursor A or cursor B. Changes to
red if an alarm occurred, and green if an alarm did not occur. The value is blank if no
data exists at the cursor position.
Value B-A
Displays the result of subtracting the values at cursor A from those at cursor B.
Tme A and Tme B
Displays the time at cursors A and B.
