3.2
Selectng a Group for Addng Channels
Channels can be assigned to groups in the channel display configure screen. Up to fifty
groups can be created, each with up to thirty-two channels. When channels are added in
the Search window (see section 2.6) they are added to the selected groups.
Addng and Deletng Groups
Clicking the
button in either of the channel setup screens adds a new group tab on
the end of any existing tabs.
Clicking the
button in either of the channel setup screens deletes the currently
displayed group tab.

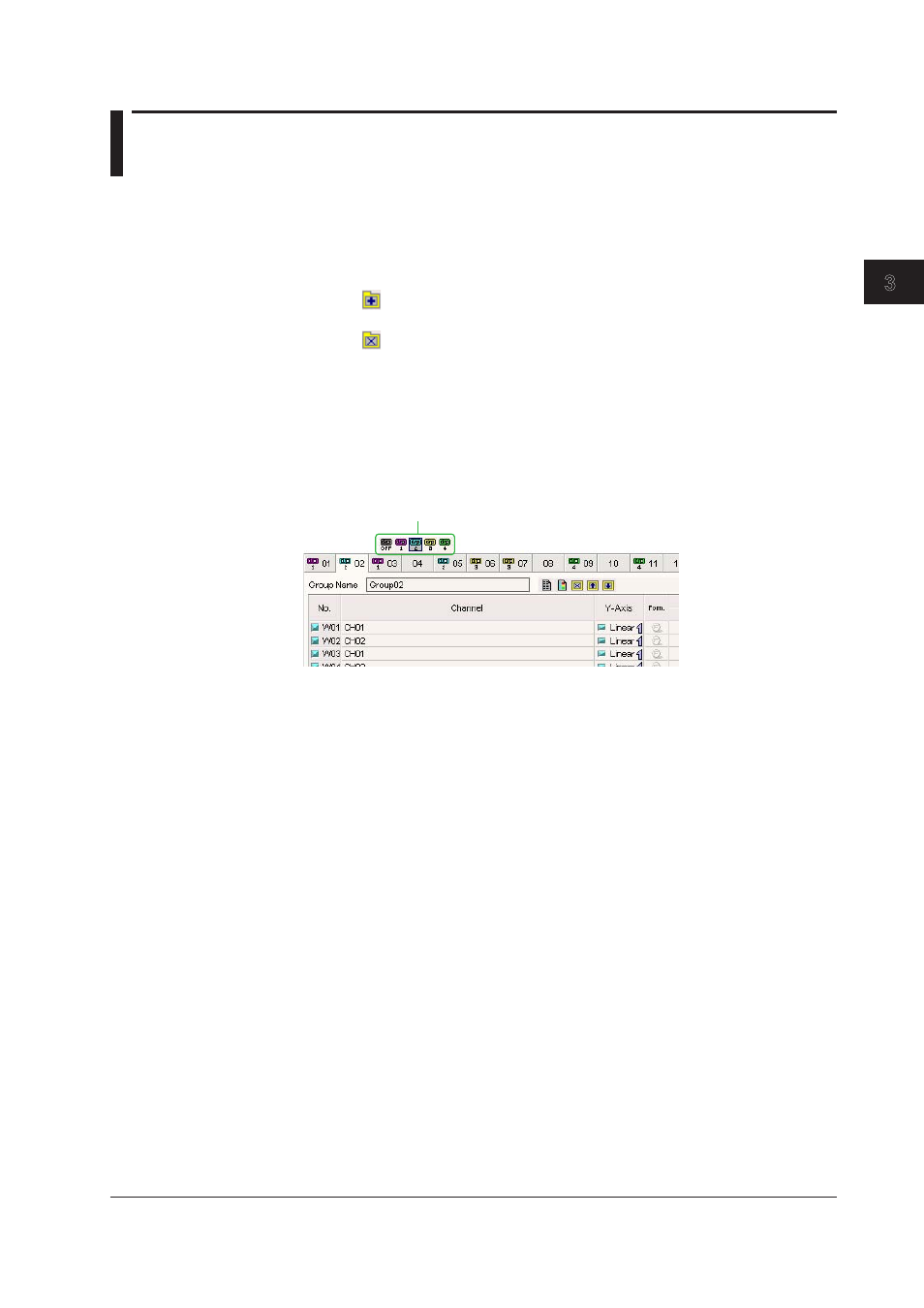

Lnked Group Settngs
This function links cursor positions and time reference modes across groups in the trend
display screen. The available settings are Link OFF, Link 1, Link 2, 3, and 4. You can
select either from any group. Groups with the same link number are called linked groups,
and up to four linked groups can be set.
Select a group, then select one of the options
