Installing the 1/16 DIN Series SD Limit
1.
Make the panel cutout using the mounting template dimensions in this chap-
ter.
2.
Check that the rubber gasket lies in its slot at the back of the bezel. Insert the
limit into the panel cutout. Slide the retention collar over the limit, with the
locating holes on the top and bottom, facing the back of the limit.
3.
Slide the mounting bracket over the back of the limit with the screw tips
pointed toward the panel, aligning with the locating holes in the retention col-
lar. Push it gently but firmly over the limit until the hooks snap into the slots
at the front.
4.
If the installation does not require an IP65/NEMA 4X seal, tighten the two
screws with the Phillips screwdriver just enough to eliminate the spacing be-
tween the rubber gasket and the panel.
For an IP65/NEMA 4X seal, tighten the two screws until the gap between the
bezel and panel surface is 0.6 mm (0.024 in) maximum. Make sure that you
cannot move it back and forth in the cutout. If you can, you do not have a
proper seal. Do not over-tighten. Over-tightening could damage the mounting
bracket.
Removing the 1/16 DIN Series SD Limit
1.
Remove the terminal cover and all of the wiring connectors from the back of
the limit. While supporting the limit with one hand, use the Phillips screw-
driver to unscrew the two screws on the mounting bracket until the tips are
flush or past the end of the hooks.
2.
Squeeze the two screws together on the mounting bracket to release the hooks
from the slots and slide it off. Remove the retention collar and push the limit
out of the panel cutout. Be ready to support the limit as it comes through the
front panel.

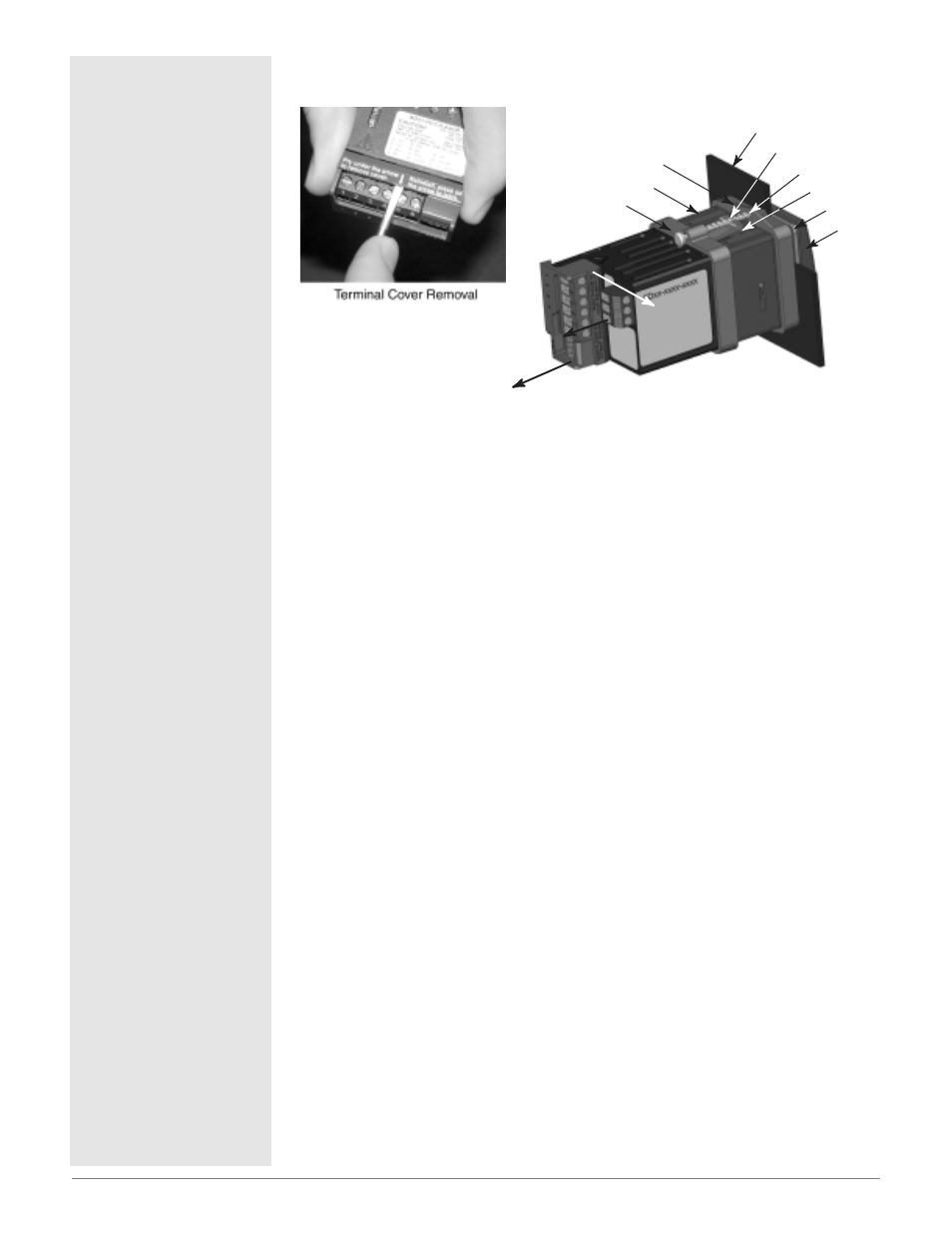

Gasket
Bezel
Panel
Retention
Collar
Mounting
Bracket
Slot
Case
Locating Hole
Arrows indicate the
direction of pull to
remove the
connectors.
Hook
ç
Caution: Follow the installa-
tion procedure exactly to
guarantee a proper IP65/NE-
MA 4X seal. Make sure the
gasket between the panel
and the rim of the case is
not twisted and is seated
properly. Failure to do so
could result in damage to
equipment.
Note: Be careful not to over-
tighten the screws. This may
cause the mounting bracket
to fail. If the front bezel is
touching the front panel, the
mounting bracket is too
tight.
Installing and mounting
requires access to the
back of the panel.
Tools required:
one #2 Phillips screwdriver
Tools required:
one #2 Phillips screwdriver.
