Caution: Follow the installa-
tion procedure exactly to
guarantee a proper IP65/NE-
MA 4X seal. Make sure the
gasket between the panel
and the rim of the case is
not twisted and is seated
properly. Failure to do so
could result in damage to
equipment.

Note: Be careful not to over-
tighten the screws. This may
cause the mounting bracket
to fail. If the front bezel is
touching the front panel, the
mounting bracket is too
tight.

Installing the 1/8 DIN Series SD Limit

Make the panel cutout using the mounting template dimensions in this chap-
ter.

Check that the rubber gasket lies in its slot at the back of the bezel. Insert the
limit into the panel cutout. Slide the retention collar over the limit, with the
locating holes facing the back of the limit.

Slide the mounting bracket over the back of the limit with the screw tips
pointed toward the panel, aligning with the locating holes in the retention col-
lar. Push it gently but firmly over the limit until the hooks snap into the slots
at the front.

If the installation does not require an IP65/NEMA 4X seal, tighten the four
screws with the Phillips screwdriver just enough to eliminate the spacing be-
tween the rubber gasket and the panel.

For an IP65/NEMA 4X seal, tighten the four screws until the gap between the
bezel and panel surface is 0.5 mm (0.020 in) maximum. Make sure that you
cannot move it back and forth in the cutout. If you can, you do not have a
proper seal. Do not over-tighten. Over-tightening could damage the the mount-
ing bracket.

Removing the 1/8 DIN Series SD Limit

Remove the terminal cover and all of the wiring connectors from the back of
the limit. Using the Phillips screwdriver, unscrew the four screws on the
mounting bracket until they disengage from the retention collar.

Squeeze the release tabs on the long sides of the mounting bracket and slide
the mounting bracket off the back of theLimit. Remove the retention collar
and push the limit out of the panel cutout. Be ready to support the limit as it
comes through the front panel.

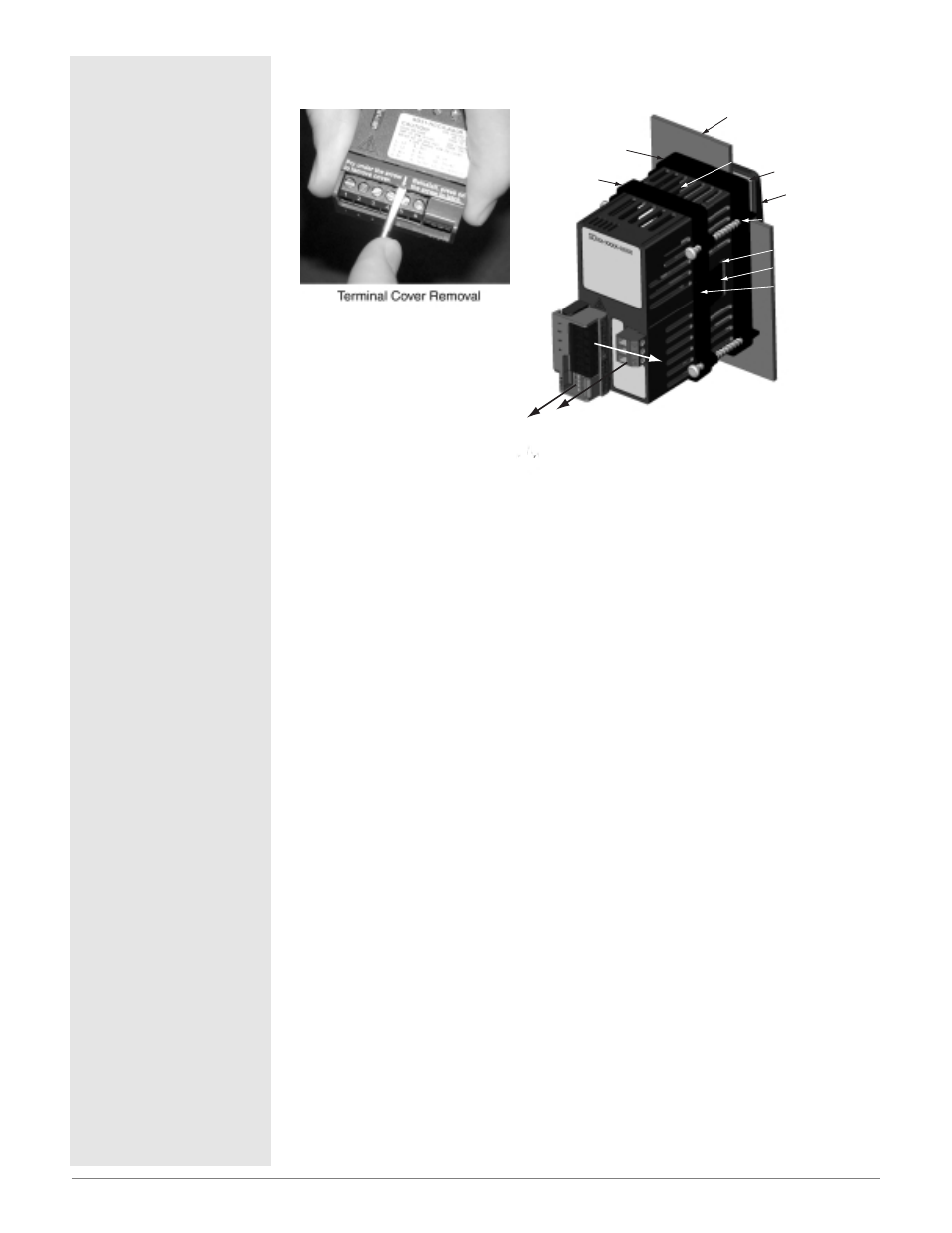

Gasket

Bezel

Panel

Retention
Collar

Mounting
Bracket

Hook

Slot

Release
Tab

Locating Hole

Arrows indicate the
direction of pull to
remove the
connectors.

Case

Wa t l o w S e r i e s S D L i m i t

■

C h a p t e r 2 I n s t a l l a n d W i r e

Installing and mounting

requires access to the

back of the panel.

Tools required:

one #2 Phillips screwdriver.

Tools required:

one #2 Phillips screwdriver.
