Wa t l o w S e r i e s S D L i m i t

13

C h a p t e r 2 I n s t a l l a n d W i r e

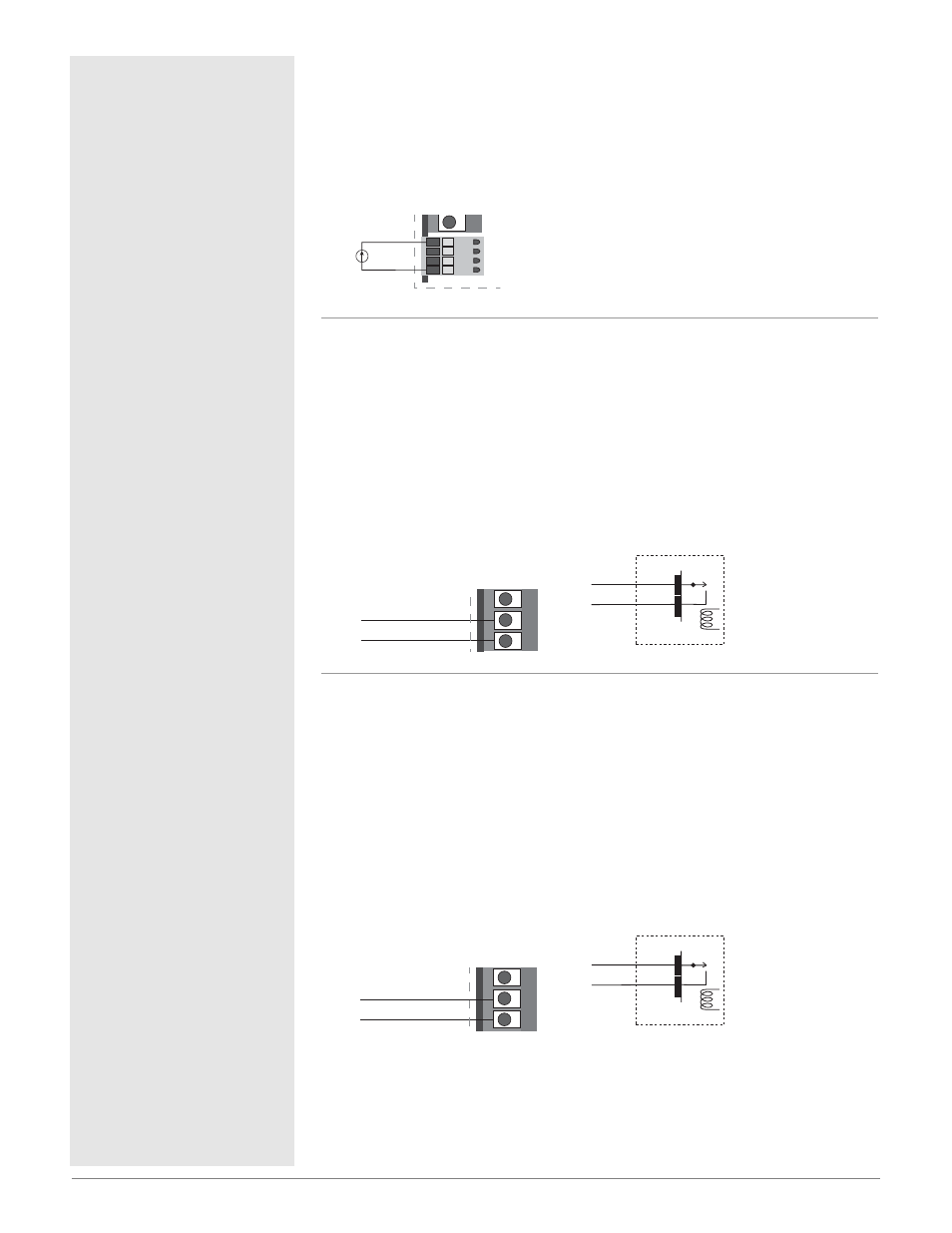

Figure 13a —

4 to 20 mA Process Input

(all model numbers)

• Input impedance 100

, dc only.

• Limit does not supply power for the current loop.

Figure 13b —

Output 1 Mechanical Relay

SD_ L - _ J _ _ - _ _ _ _

• 2 A, Form A.

• 240VÅ (ac) maximum.

• 30VÎ (dc) maximum.

• See Quencharc note.

• For use with ac or dc.

• Minimum load current 10 mA

• Output does not supply power.

Figure 13c —

Output 2 Mechanical Relay

SD_ L - _ _ J _ - _ _ _ _

• 2 A; Form A.

• 240VÅ (ac) maximum.

• 30VÎ (dc) maximum.

• See Quencharc note.

• For use with ac or dc.

• Minimum load current: 10 mA

• Output does not supply power.

Internal Circuitry

COM.

N.O.

Mechanical Relay

3

4

2
3

4

3

4

normally open

common

Internal Circuitry

COM.

N.O.

Mechanical Relay

5

6

4

56

normally open 6

common 5

6

8
9

10
11

8

11

+

-

ç

WARNING: Process input may
not have sensor break protec-
tion. Outputs can remain full on.
Check your input settings.

Ó

Warning:
Use National Electric (NEC) or
other country-specific standard
wiring and safety practices when
wiring and connecting this limit
to a power source and to electri-
cal sensors or peripheral de-
vices. Failure to do so may re-
sult in damage to equipment and
property, and/or injury or loss of
life.

Quencharc Note:
Switching inductive loads (relay
coils, solenoids, etc.) with the
mechanical relay, switched dc or
solid-state relay output options
requires use of an R.C. suppres-
sor.

Watlow carries the R.C. sup-
pressor Quencharc brand name,
which is a trademark of ITW
Paktron. Watlow Part No. 0804-
0147-0000.

Spring clamp wiring connector
note:
To insert the wire, push the wire
into the desired connection num-
ber, and it should automatically
lock into place. To remove the
wire, press and hold the orange
release tab with a small screw-
driver. Pull the wire out of the
connection. Solid or tinned wire
recommended

Note: To prevent ground loops,
isolation needs to be maintained
from input to output when using
switched DC or analog process
outputs.
