Factory Menus, Chapter 6 WATLOW Series 988LF Users Manual 6.1
Chapter 6 The Factory Menus
❶ Press the Up-arrow > and Down-arrow < keys together and hold
until the [`LOC] prompt appears in the lower display. Press and hold again
until the [Fcty] prompt appears in the lower display.
❷ Use the Up-arrow > key to
step from the Calibration Menu
[`CAL] to the Diagnostics Menu
[diag].
❸ Press the Mode key µ to
step through the prompts.
❹ Press the Up-arrow key > or
the Down-arrow key < to
select one of the prompt values.
In the Diagnostics Menu only
the values of [dISP], [tout],
and [OPLP] can be changed.
Reaching the Diagnostics Menu
[diAg] [`CAL]
[Fcty] [Fcty]
Diagnostics Calibration
Menu Menu
p. 6.1 p 6.5

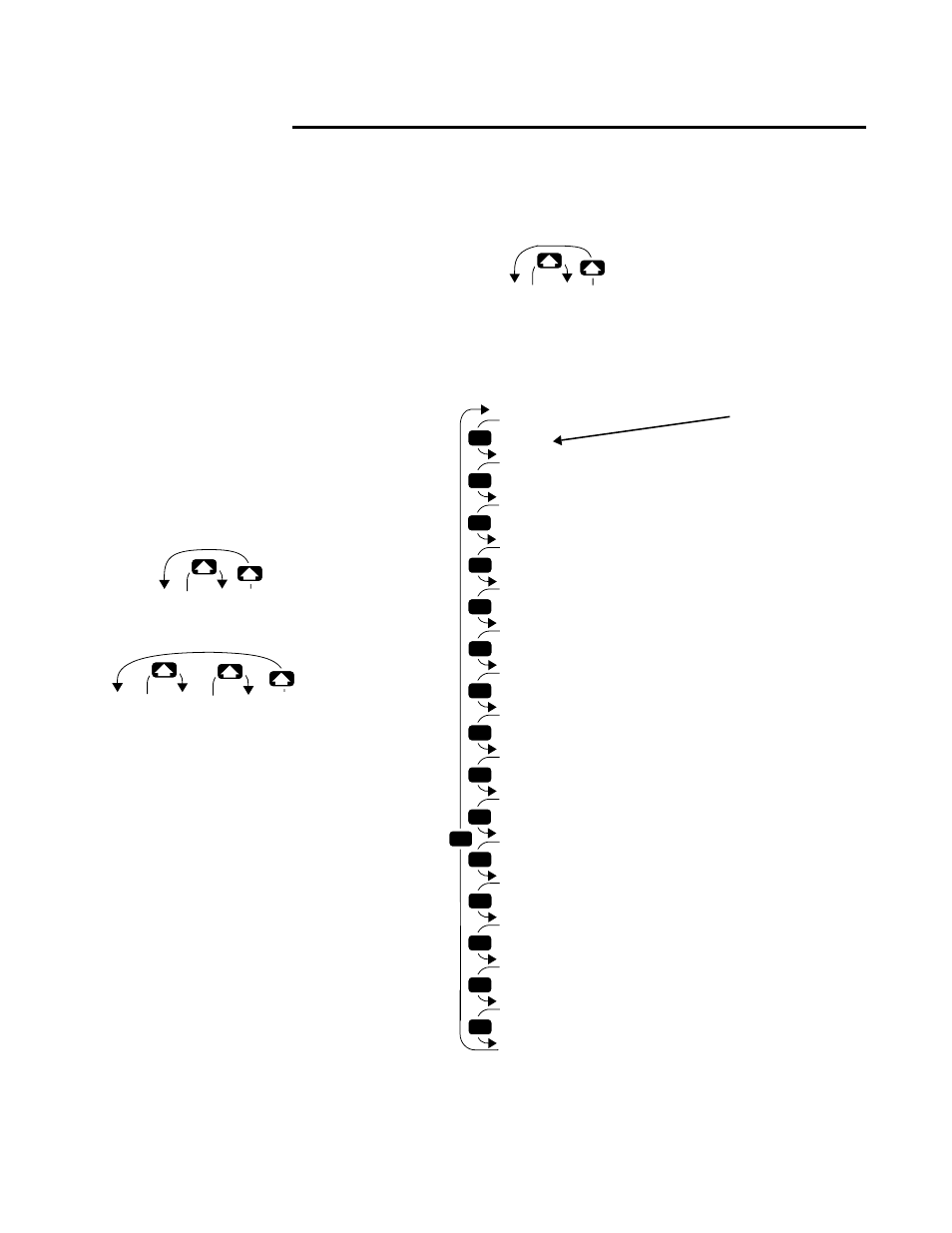

Figure 6.1
The Diagnostics Menu
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
MODE
Document your settings,
from the controller's
upper display.
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
[date]
[SOft]
[Sn--]
[AMB]
[Acnt]
[`gnd]
[cnt1]
[cnt2]
[ity1]
[ity2]
[Oty1]
[Oty2]
[dISP]
[tout]
[OPLP]
Factory Ship Date
Software Revision
Serial Number
Ambient Temperature
Ambient A/D count
Ground A/D count
Input 1 A/D count
Input 2 A/D count
Input 1 Module Type
Input 2 Module Type
Output 1 Module Type
Output 2 Module Type
Test Display
Test Outputs
Open Loop
[Diag]
[Fcty] Factory Prompt
[``no] [`YES]
[diSP] [diSP]
[`OFF] [out1] [out2]
[tout] [tout] [tout]
