Operations
Operations Menu, Chapter 5 WATLOW Series 988LF Users Manual 5.1
Navigating the Operation Menus
❶ To reach the Operation Menus, begin in the
Display Loop and press the Mode key µ.
Depending on the controller configuration, either the
Set Point 2 prompt [`SP2], or the Proportional
Band, Output 1 prompt [`Pb1] will appear in the
lower display. You will not see every prompt in the
Operation Menu; the unit’s configuration and model
number determine which prompts appear.
NOTE:
Press the Display Key
∂ to return to the
Display Loop from any
point in any menu.

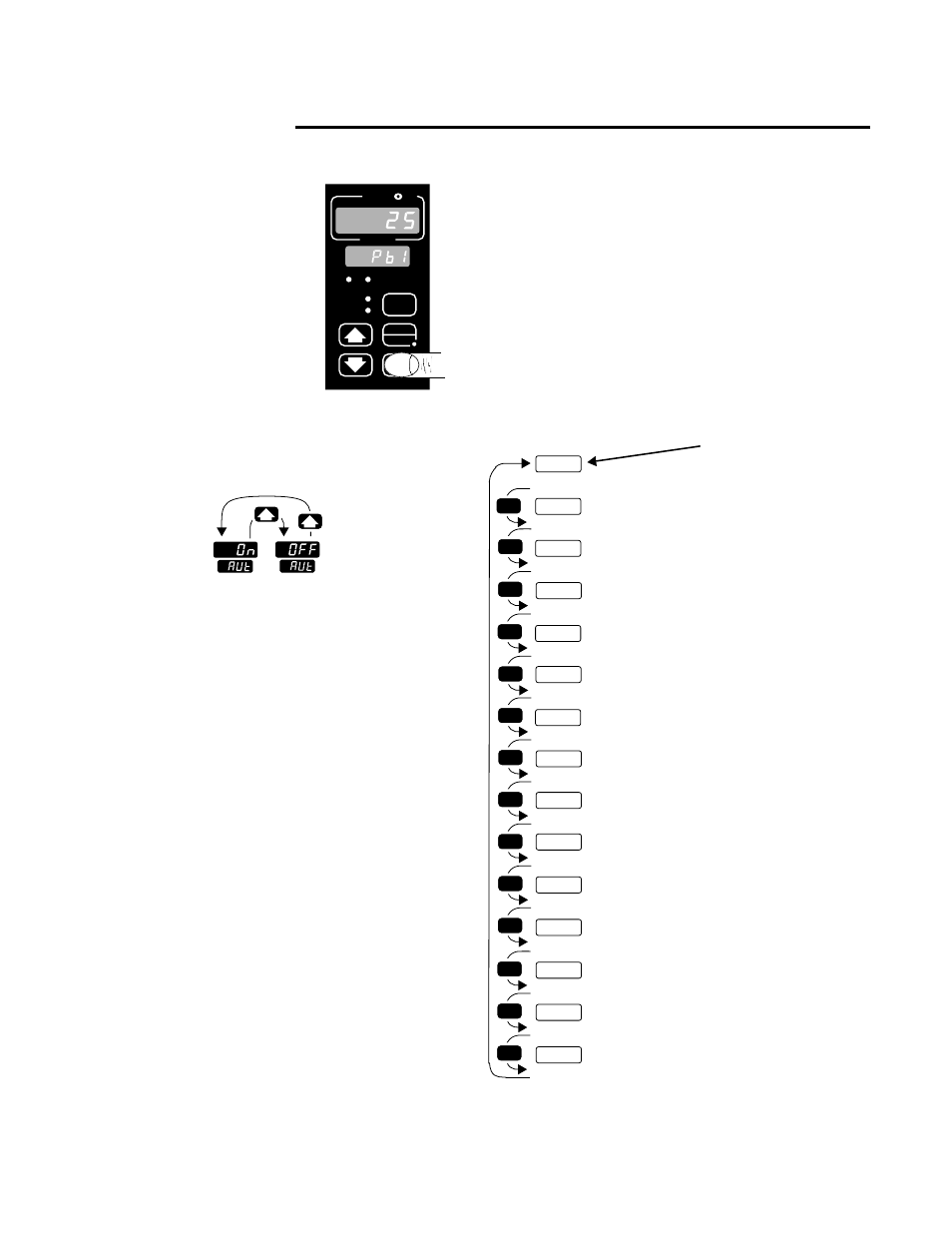

Figure 5.1 -
Navigating the
Operations Menu.
Chapter 5 The Operation Menu
Alarm Hi
Deadband
Cycle Time 2
Rate 2
Proportional Band 2
Reset 2
Proportional Band 1
Reset 1
Rate 1
Cycle Time 1
Enter your settings,
from the controller's
upper display.
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
Alarm Lo
MODE
Set Point 2 [`SP2]
[`Pb1]
[`rE1]
[`rA1]
Local-remote
Calibration Offset
MODE
MODE
MODE
Auto-tune
[`Ct1]
[`Pb2]
[`rE2]
[`rA2]
[`CT2]
[``dB]
[`ALO]
[`AHI]
[`CAL]
[`AUT]
[`L-r]
TL TL W WA
PROCESS
L1 L2
DEV
% OUT
DISPLAY
SERIES 988LF
MODE
AUTO
MAN
❷ Use the Up-arrow > or the
Down-arrow < key to select one
of the prompt values.
