Page 6: Introduction, chapter 1, Series 920 input and output overview, Figure 1, Chapter 1 starting out with the watlow series 920, A microprocessor-based control

background image

Figure

l-

Series

920 Input

output Overview

6

Selectab

RTD, T/C
Process

and

Chapter 1

Starting out with the

Watlow Series 920:

A Microprocessor-Based Control

Dual PID

or ON/OFF

outputs

or

Two Auxiliary Outputs

RS-422A or RS-423A (RS-232C Compatible)

Optional Computer Interface

General Description

F F

Congratulations, you’re about to become a fully-qualified user of the Watlow
Series 920! This versatile microprocessor-based ramping control is powerful, yet

simple to learn. A ramp progresses from one set point to another set point over a
period of time. In this chapter of the user’s manual, you’ll get an overview of the
920 and its operation.

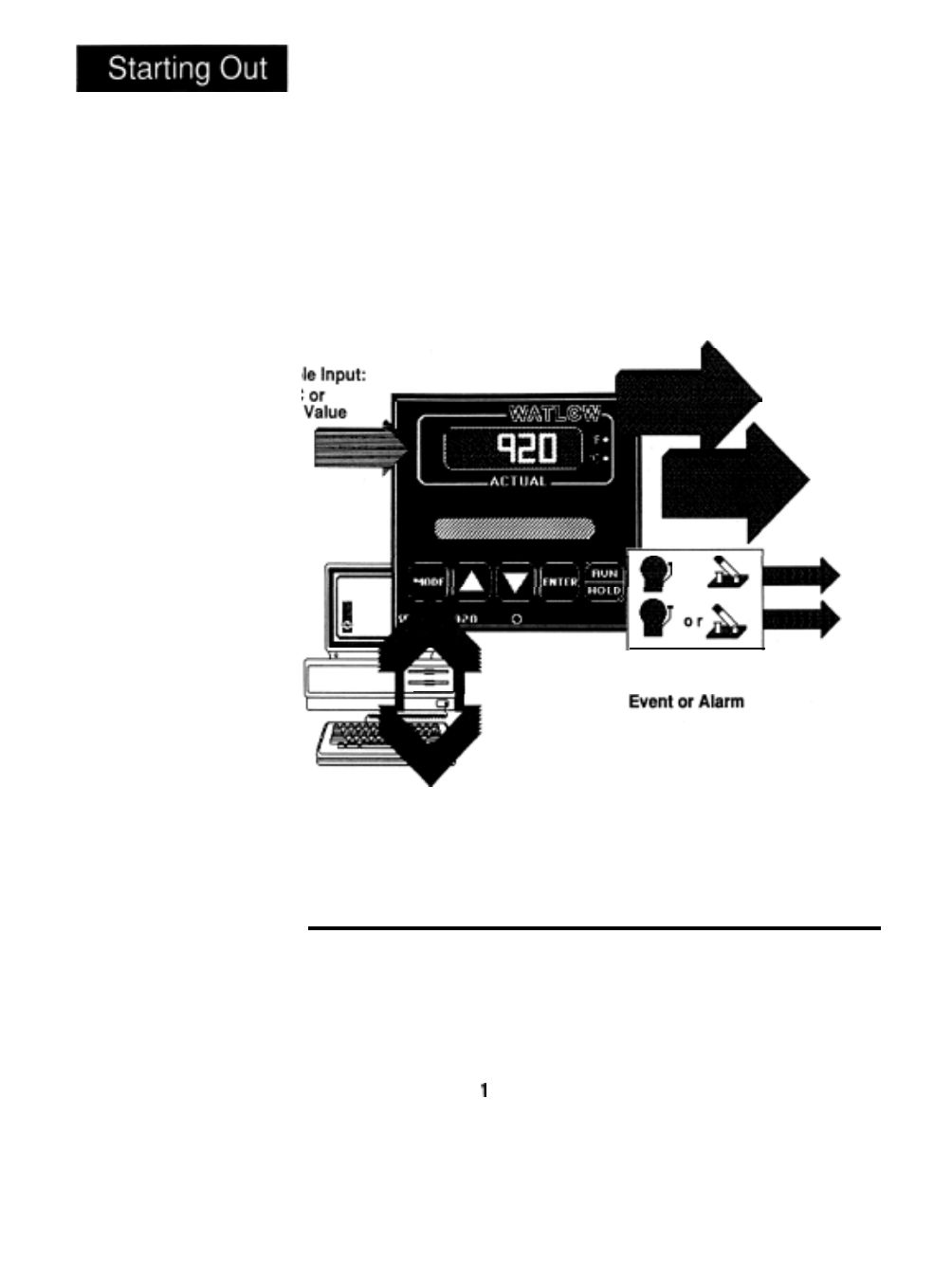

Figure 1 is a simplified view of the Series 920’s capabilities. It is a dual output,
microprocessor-based, 1/4 DIN-sized ramping temperature control. The 920
accepts a single, front panel-selectable input. This includes Type

J, K, T, R, S,

or B thermocouple input, a 1° or 0.1° RTD input, or one of two process inputs. It
has a full control temperature range, offset calibration, and a front panel lock-out
feature.

WATLOW Series 920

User’s Manual

Starting Out, Chapter 1
