System wiring example, Figure 27 – Watlow Series 920 Microprocessor-Based Ramping Control User Manual
Page 32

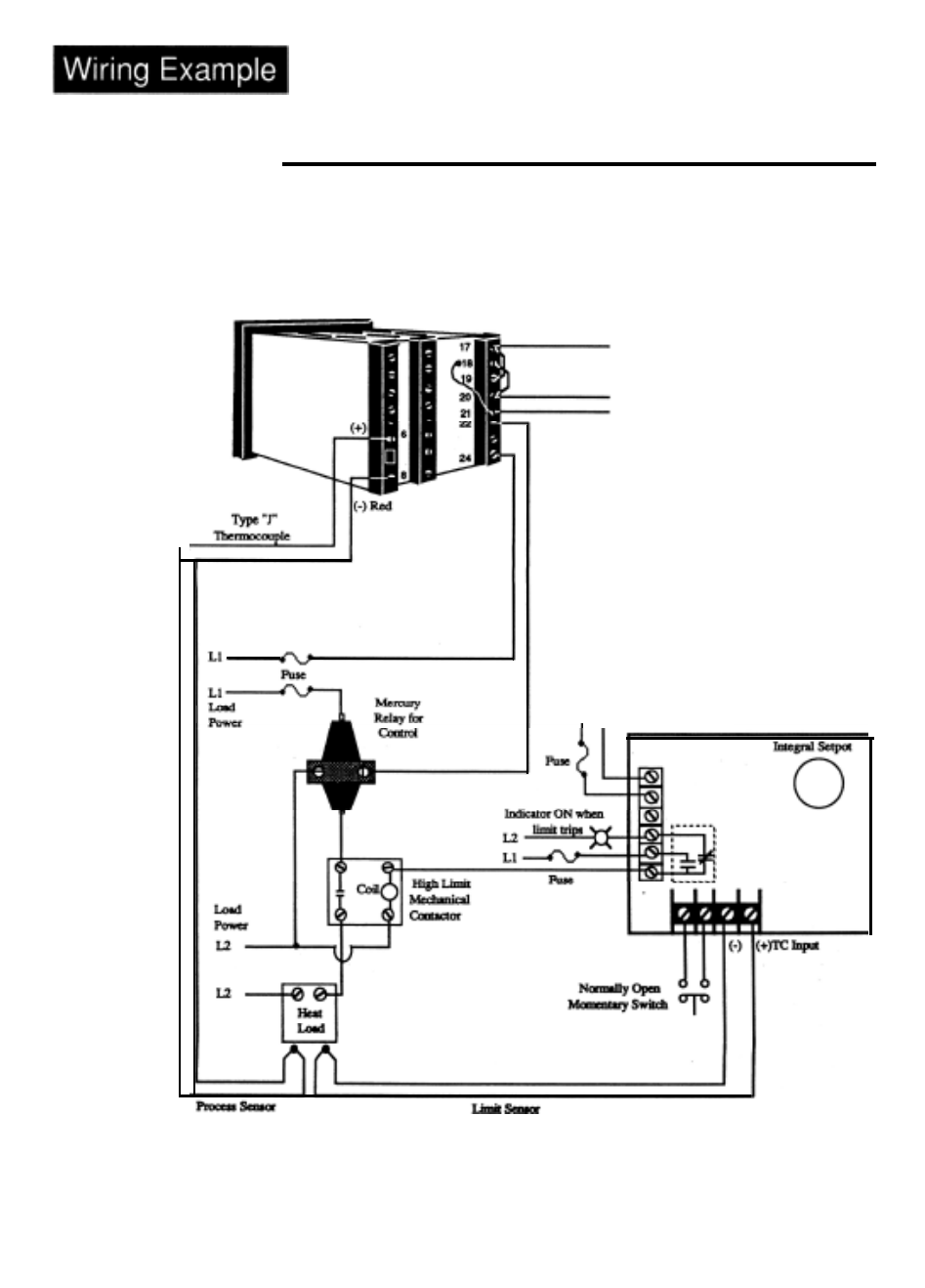

System Wiring Example
Figure 27 -
System Wiring
This example shows a typical Series 920 wiring scheme. it represents only one
of many output configurations.
Example.
92OA-2DDO-A003
Temperature Conrol
L1
Control
Power
L
2
115VAC
Earth Ground
r
L1
High Limit
Control Power
r
L2
120 VAC
140A-16XX-6000
High Limit Control
32
WATLOW Series 920 User's Manual
How to Install and Wire, Chapter4
