SETUP Menu
While in the HOLD
mode,
press the MODE key until you see SETUP, press
ENTER. These parameters are to setup the personality of your Series 920. Using
the MODE to progress through the prompts, use the UP/DOWN keys to select
parameters and values and press ENTER.
Select each ACCESS number. Follow that parameter sequence to enter values.
You must return to SYSTEM before you can continue to the next ACCESS
number.

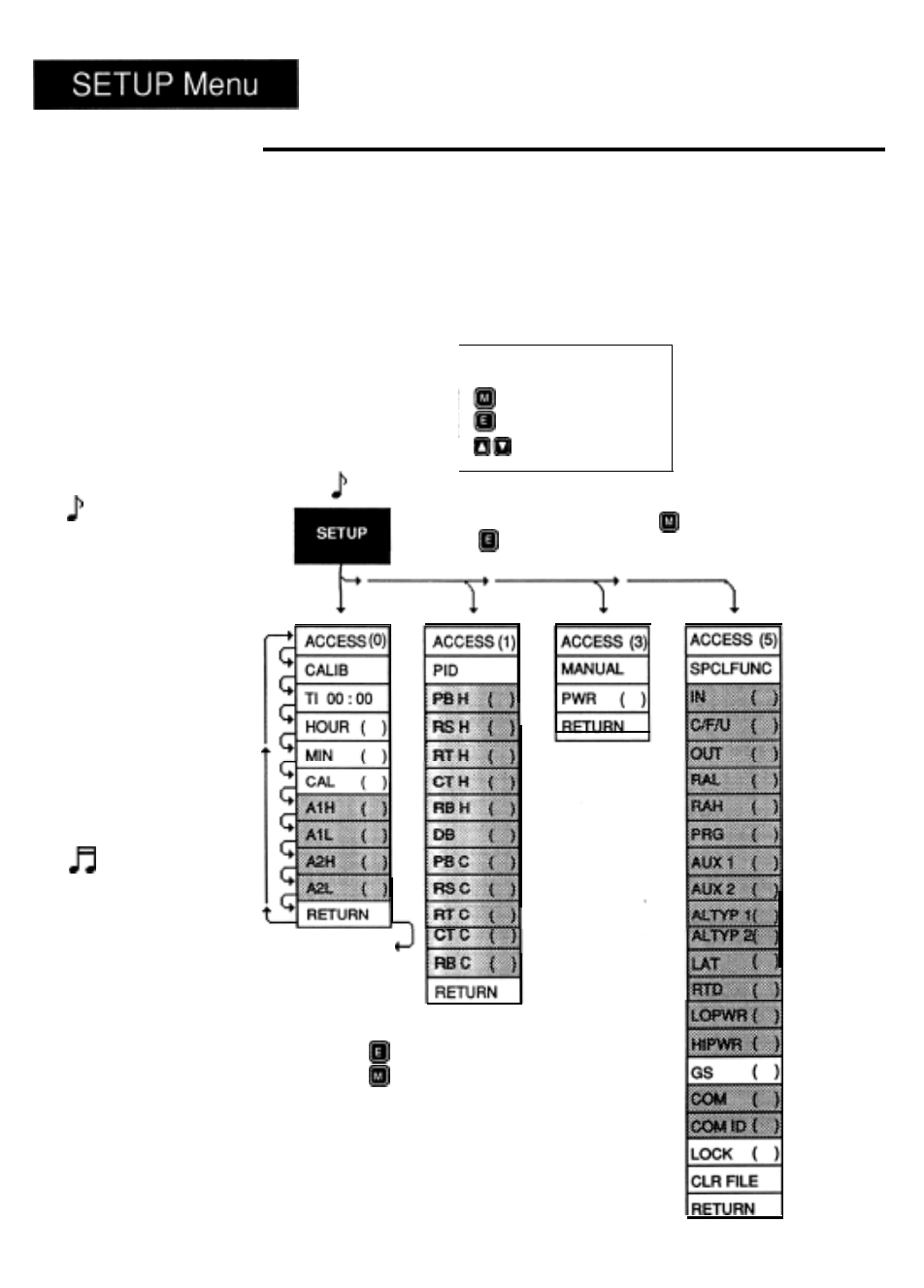

Figure 30 -
SETUP Key Flow
’ Graphics Key
= MODE Key
= ENTER Key
= UP/DOWN Key
NOTE:
Shaded parameters
may not appear on
your control. These
parameters are
dependent on how
your control is
configured. See
Pages 43 - 48 for
more information.
NOTE:
Changing certain
parameter values
will default other
parameters and
clear all pro-
grammed files. See
Page 44 and 47 for
details.
At the SYSTEM prompt, press to continue to SETUP.
Press to enter the SETUP menu.
To SYSTEM
Press
press
to return to SYSTEM, o r
to return to the first parameter.
